Mercedes Benz
>>
1995
>>
S 420 (140.043) V8-4.2L (119.971)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Automatic Transmission (AT) PE27.19-U-2000XV
Automatic Transmission (AT) PE27.19-U-2000XV

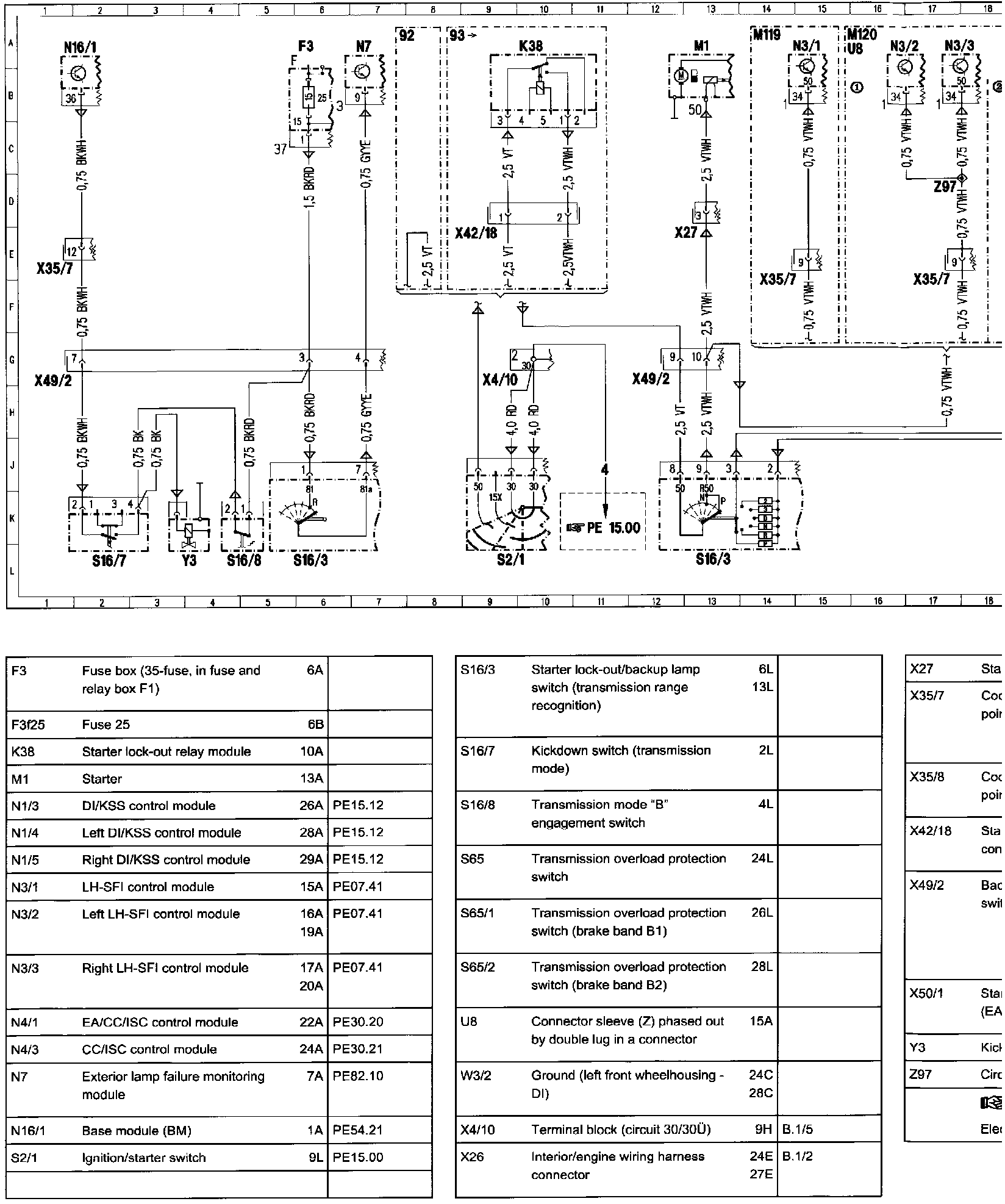

Y� PE27.19-U-2000-XV - 4 Speed Automatic Transmission:
