Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1995
>>
S 500 Coupe (140.070) V8-5.0L (119.970)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Exterior Lights PE82.10-U-2000XX
Exterior Lights PE82.10-U-2000XX

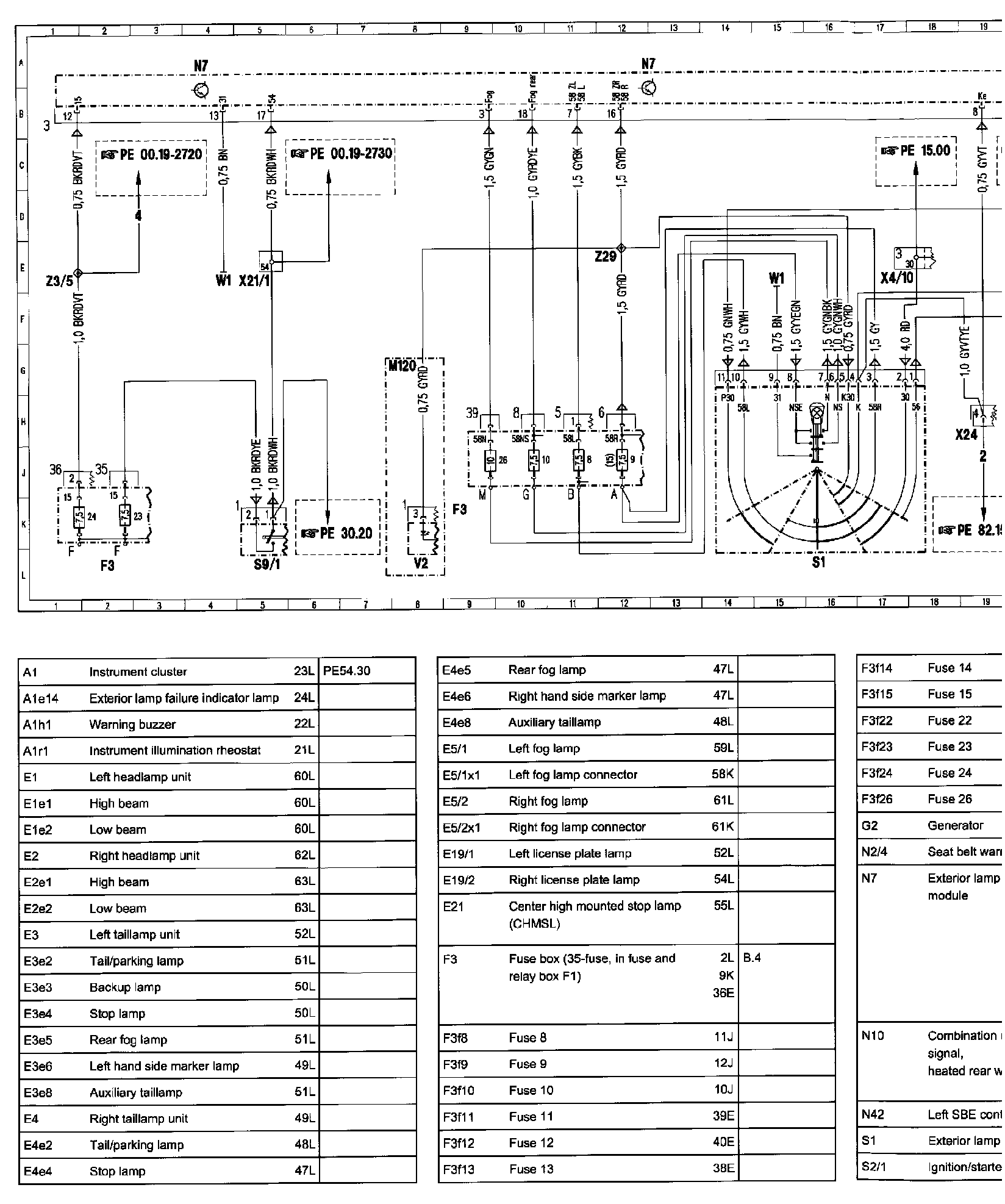

�!�P荟Pd�PPE82.10-U-2000-XX - Coupe - Without Daytime Running Lamps (USA):
