Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1995
>>
S 600 Sedan (140.057) V12-6.0L (120.980)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
With Digital Odometer
>>
Electrical Test Program (ETP)
>>
Test Procedures
>>
Test - Section 23
>>
7.0 - 8.0
7.0 - 8.0

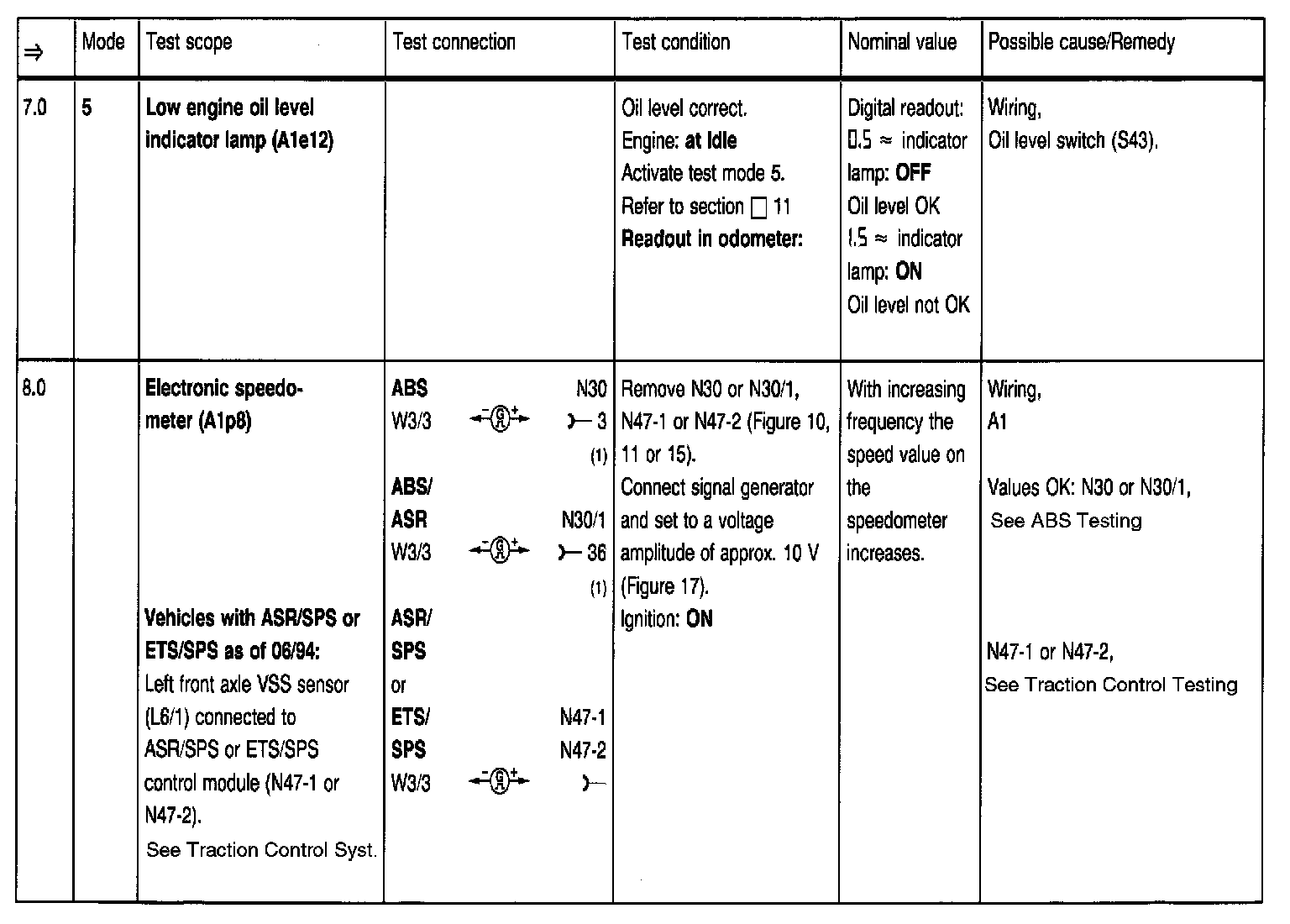

Steps 7.0 - 8.0:
