Radio (RD) Control Module PE82.60-U-2000YC (As of 12/94)

Radio MB with sound system (Bose).

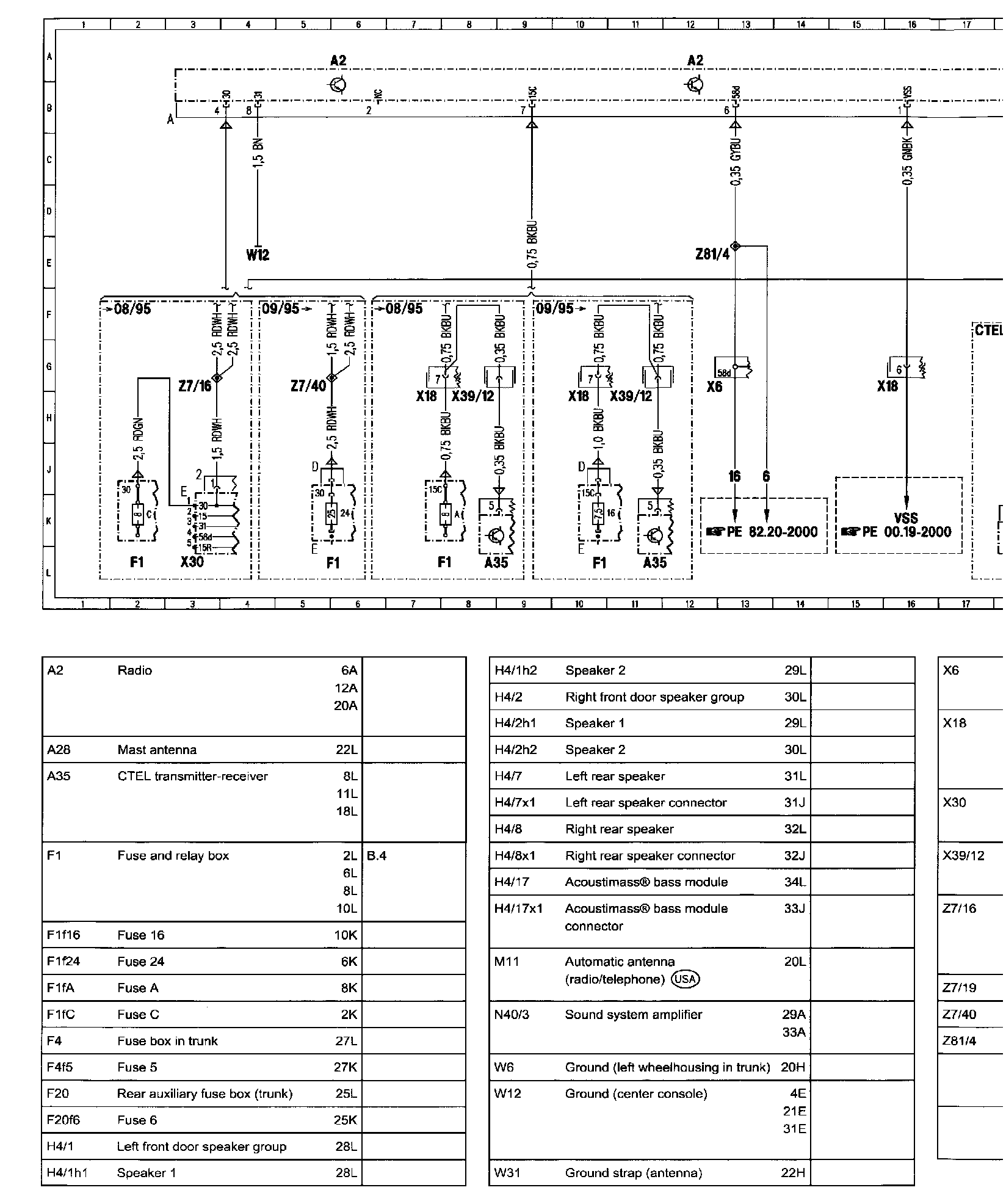

Wiring Diagram

K��<��<PE82.60-U-2000YC:

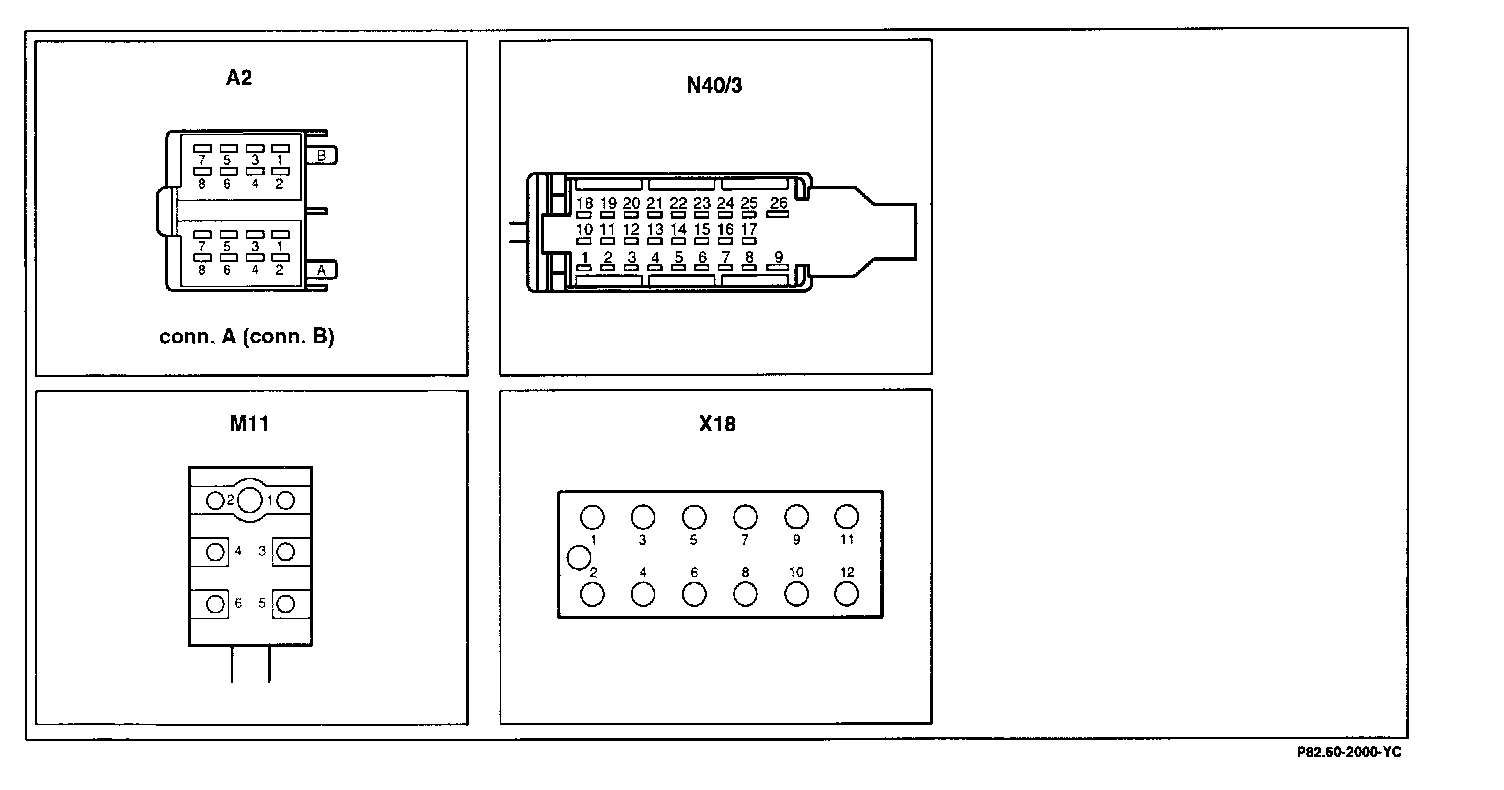

Connector Assignment:

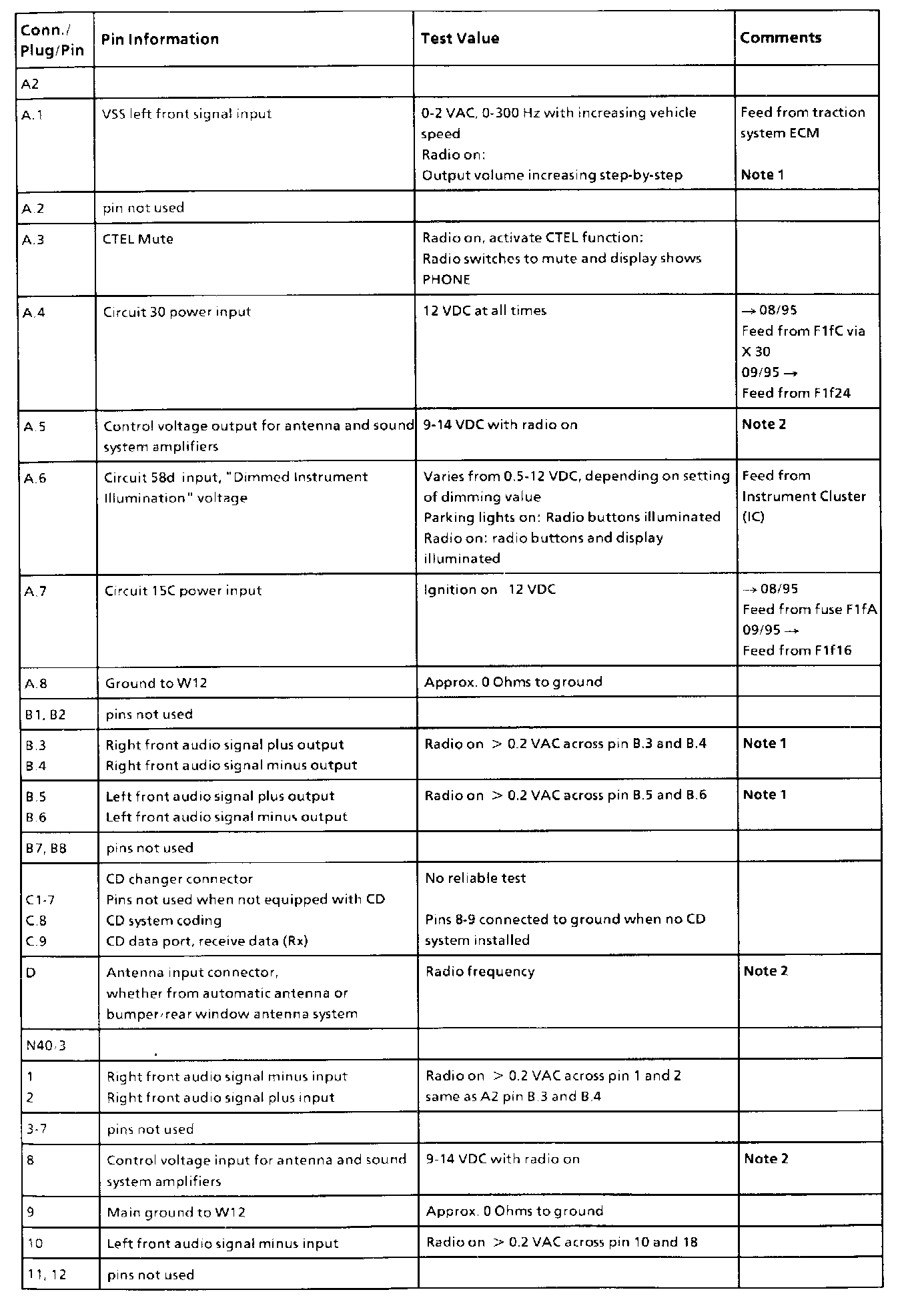

Pin Information, Part 1:

Pin Information, Part 2:

All values measure to ground unless otherwise noted.
