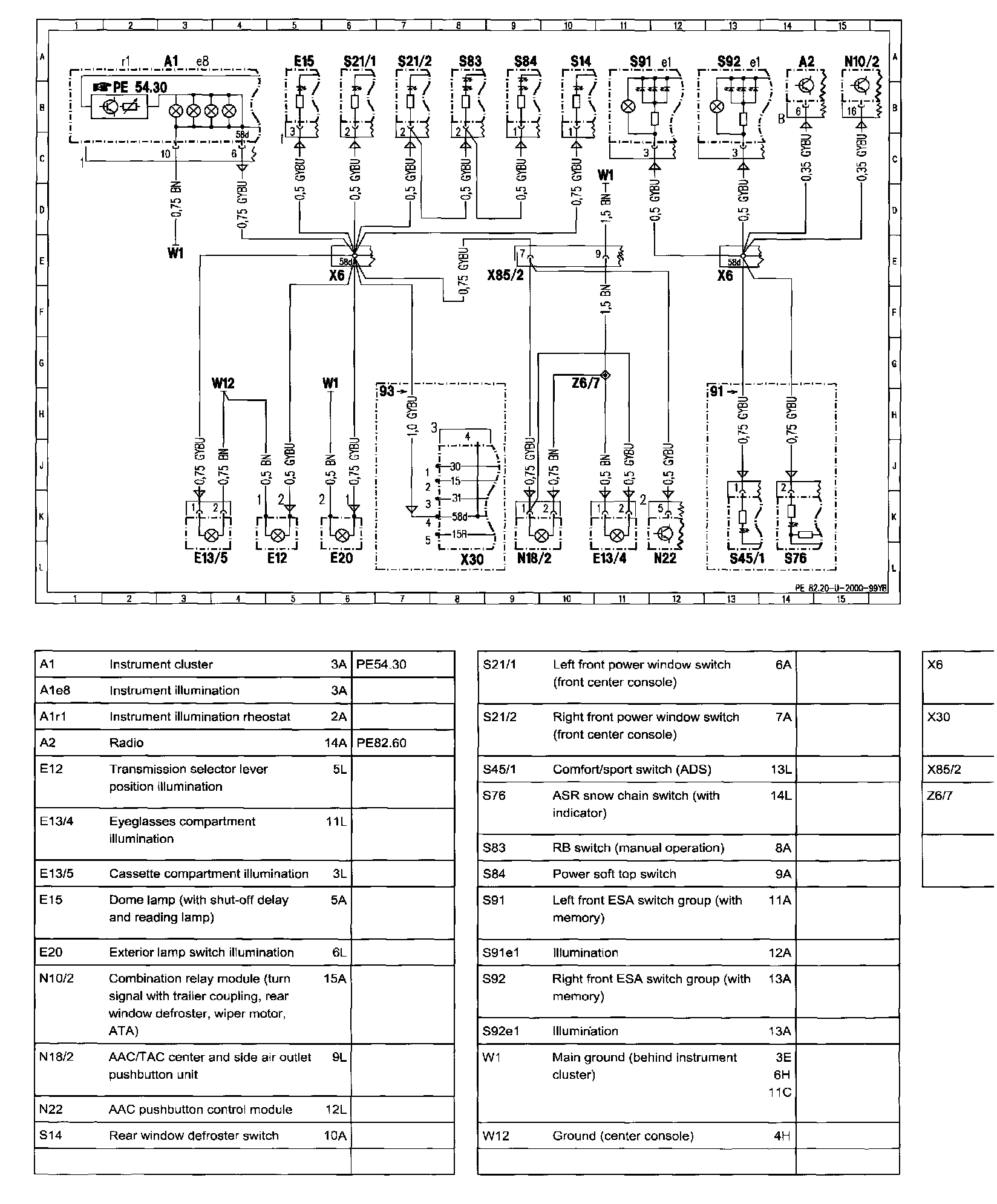

Interior Lights PE82.20-U-2000YB (Up to 11/94)

Interior Lights
- with variable instrument illumination

^�PPE82.20-U-2000YB:

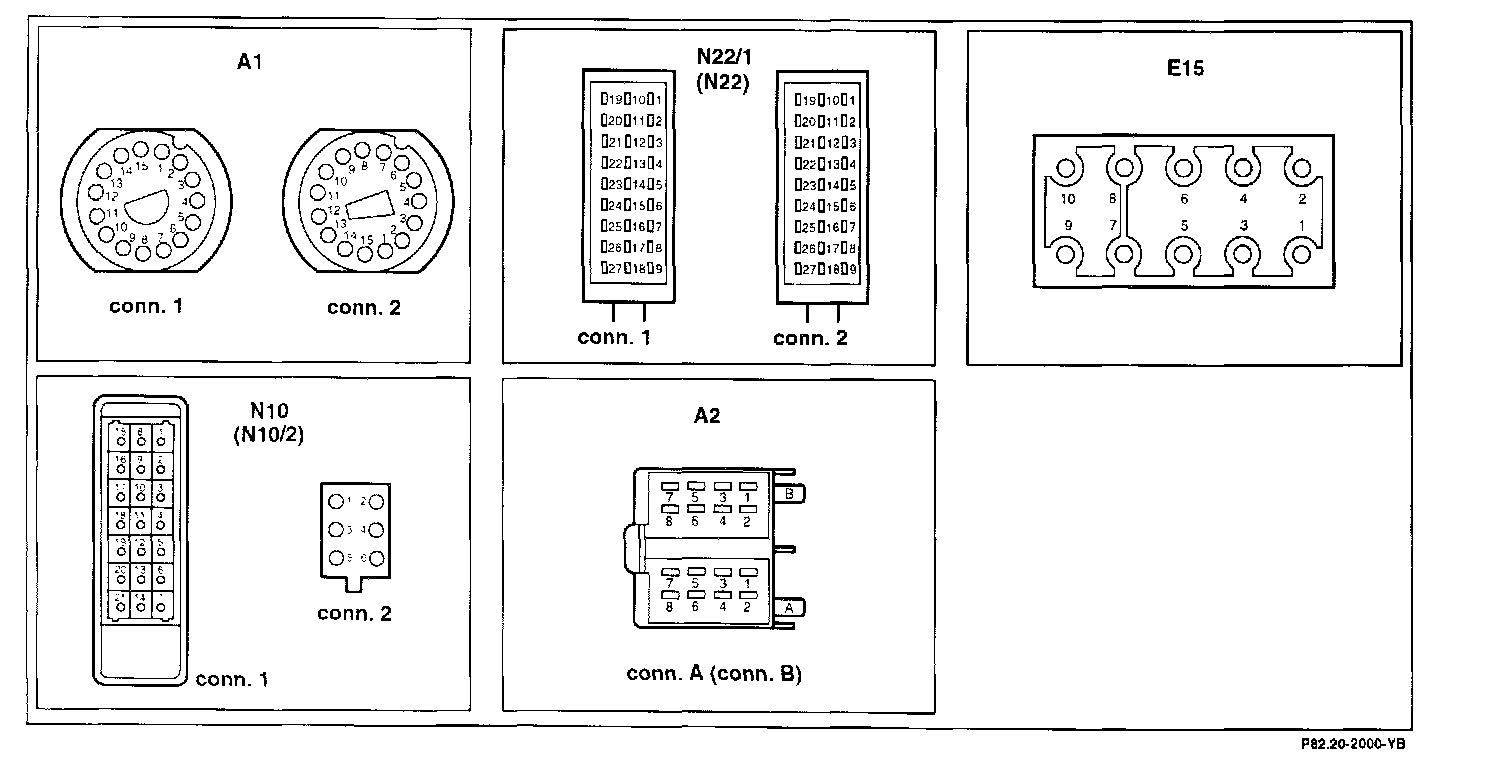

Connector Assignment:

Pin Information:

All values measure to ground unless otherwise noted
