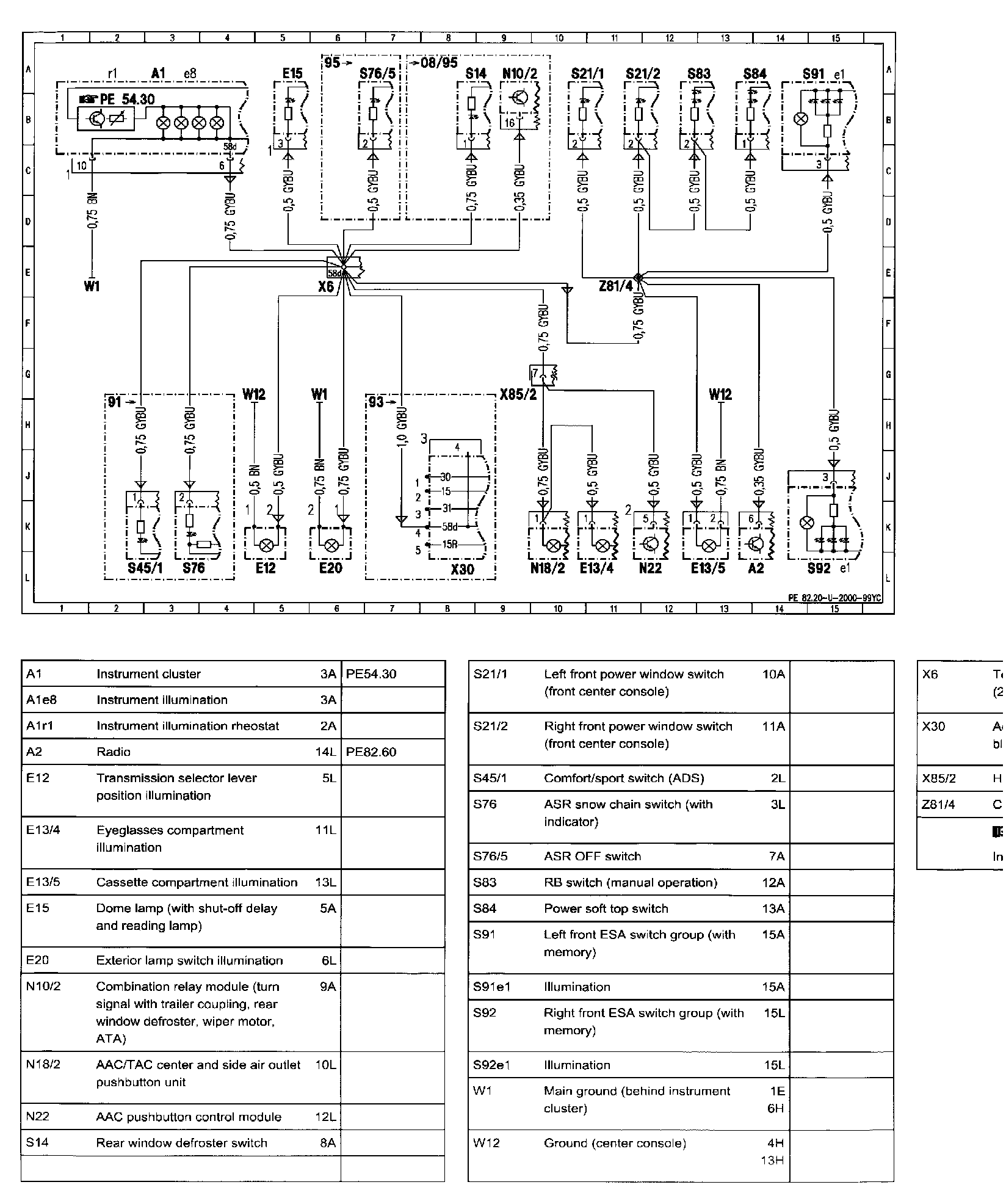

Interior Lights PE82.20-U-2000YC (As of 12/94)

Interior Lights
- with variable instrument illumination

���PPE82.20-U-2000YC:

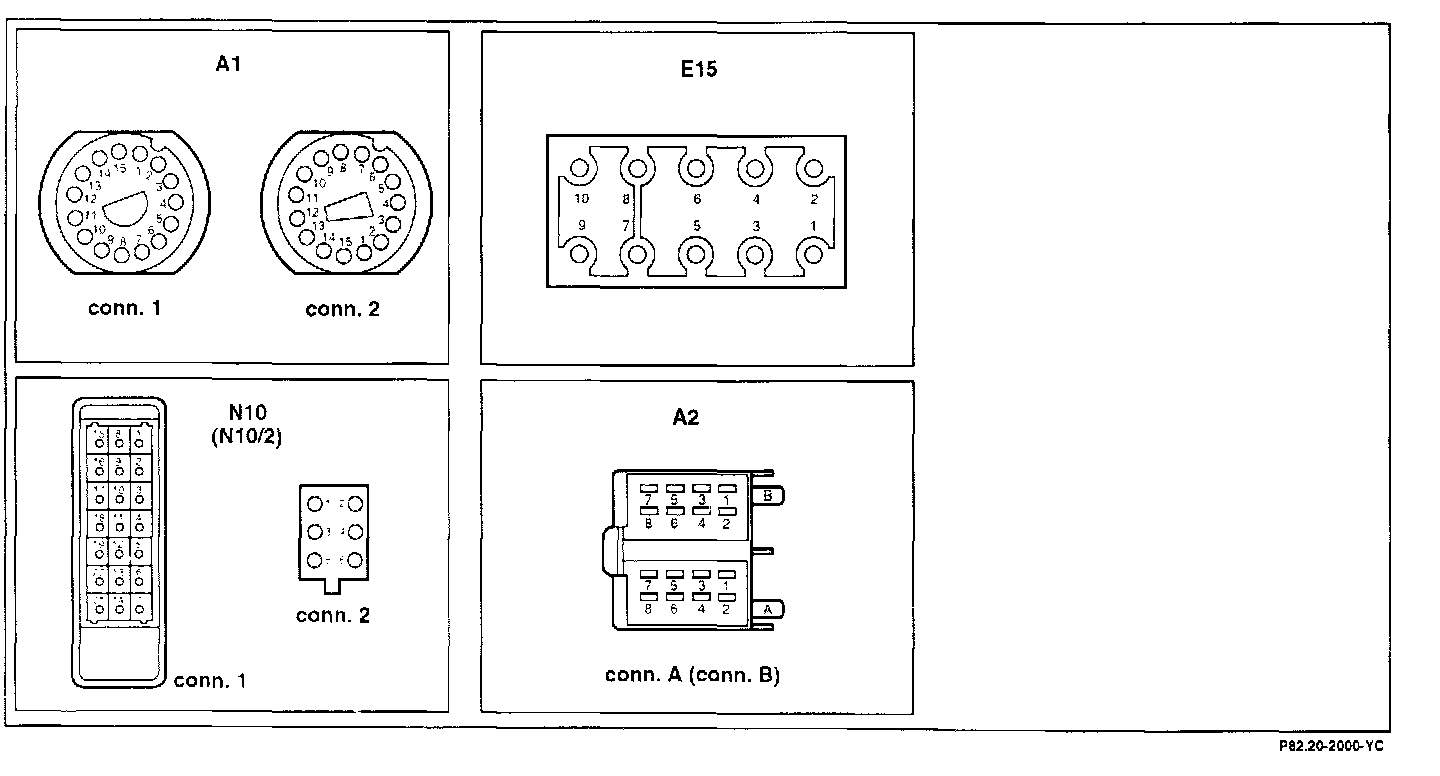

Connector Assignment:

Pin Information:

All values measure to ground unless otherwise noted.
