Cellular Phone - Installation: Overview
REF. NO. MBNA 82/76ATO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS
DATE: August 1994 (supersedes S.I. MBNA 82/76, June 1994)
Revision: Model 129 added
SUBJECT:
MODELS 129 AND 140 MODEL YEAR 1995
INSTALLATION OF CELLULAR TELEPHONE (CTEL) SYSTEM
Shown in this Service Information are the Work Instructions for installation of the cellular telephone (CTEL) system in model year 1995 model 129 and 140 vehicles.
NAM Programming Guide S-2503-M94 is valid for M.Y. 1995 model 129, 140 vehicles with Mobile CTEL (for use with core kit no. Q 6 82 0180).
NAM Programming Guide S-2503-P94 is valid for M.Y. 1995 model 129, 140 vehicles with Portable CTEL (for use with core kit no. Q 6 82 0182).
One pad of each NAM Programming Guide will be sent under separate cover to the dealership service manager.
Please ensure that the completed Warranty Registration postcard (S-2488-94C) is sent to MBNA, Attn:
Warranty Department, immediately following installation of the CTEL.
Parts Information - Model 140:

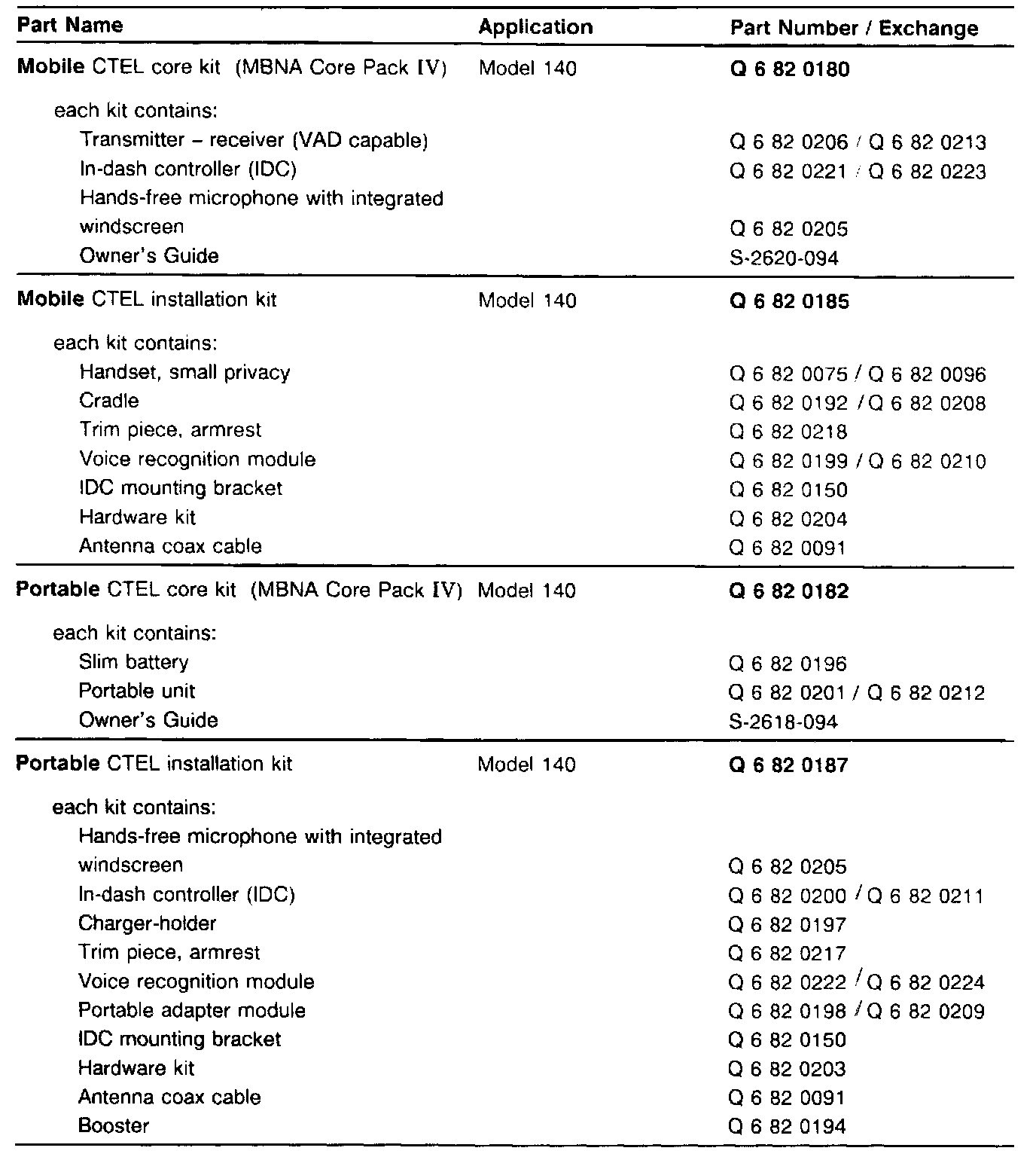

Parts Information - Model 140
Parts Information - Model 129:

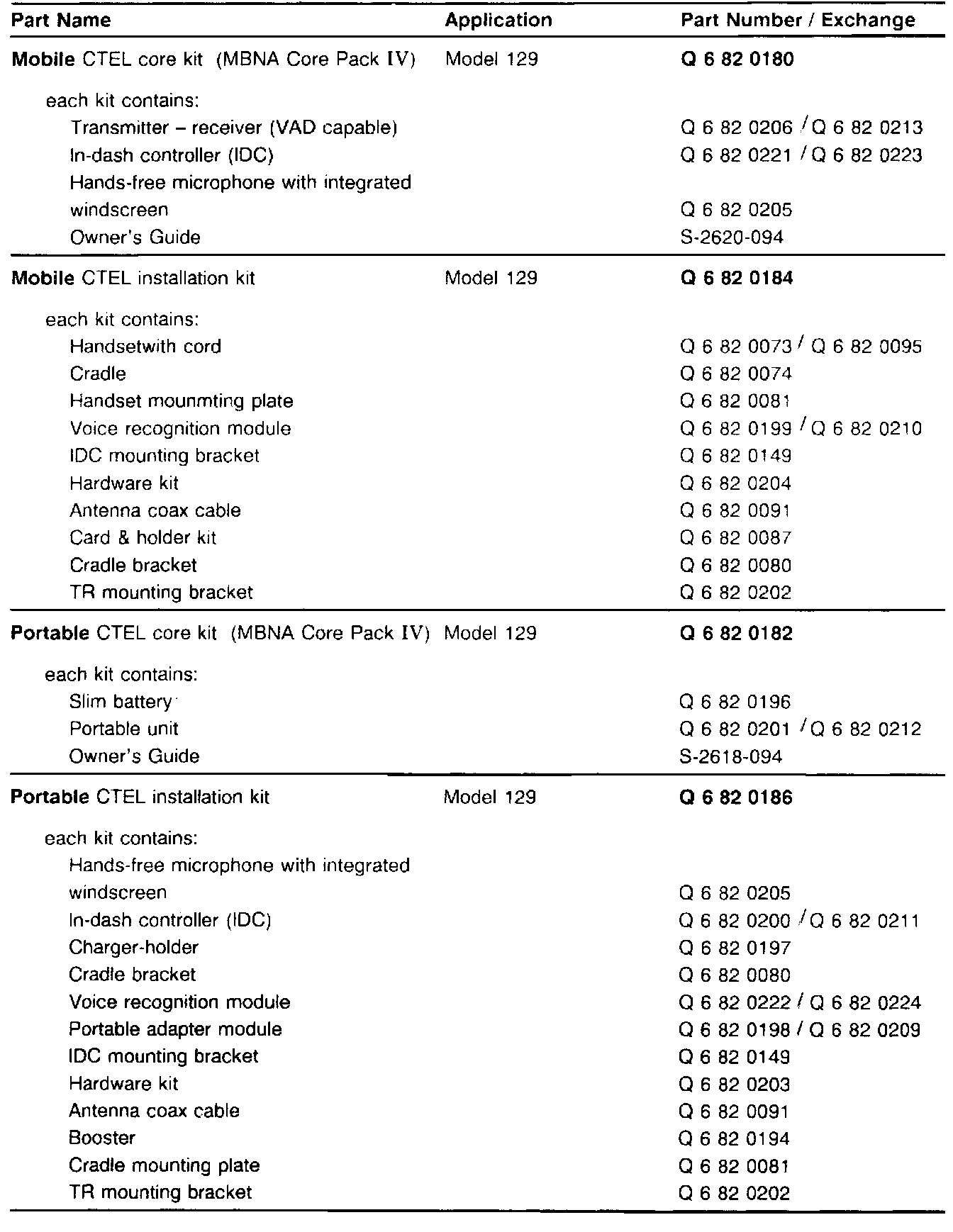

Parts Information - Model 129

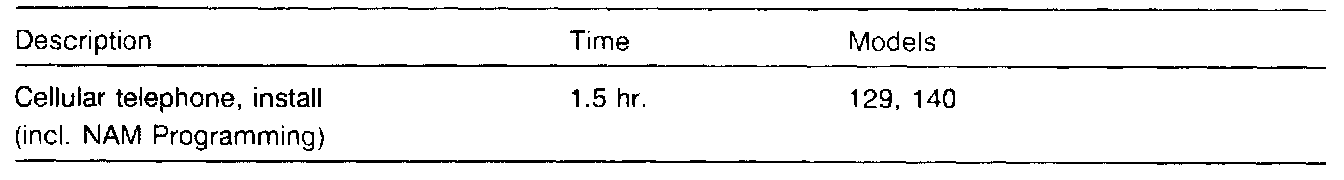

Recommended Labor Time
Special Tools
IMPORTANT!
The Cellular Telephone Installation Warranty Registration postcard (S-2488-94C) MUST BE FILLED OUT and mailed to:
Mercedes-Benz of North America, Inc.
One Mercedes Drive
Montvale NJ 07645
Attn: Warranty Department
If the card is not filled out and mailed in, future warranty claims for the telephone will be denied.
