Glove Compartment: Adjustments



AR68.10-P-1300E Adjusting Glove Compartment Lid

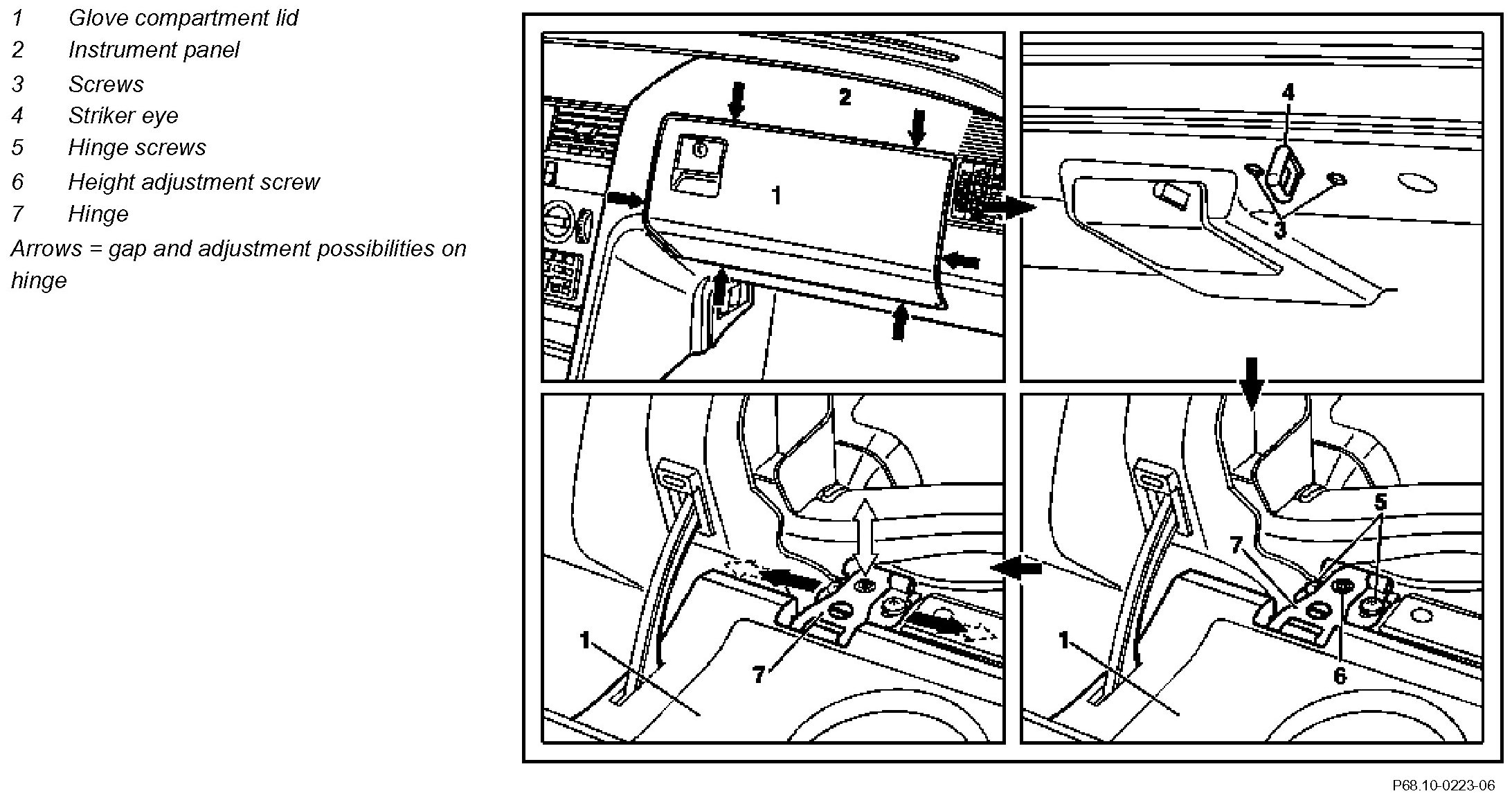

Component Identification:

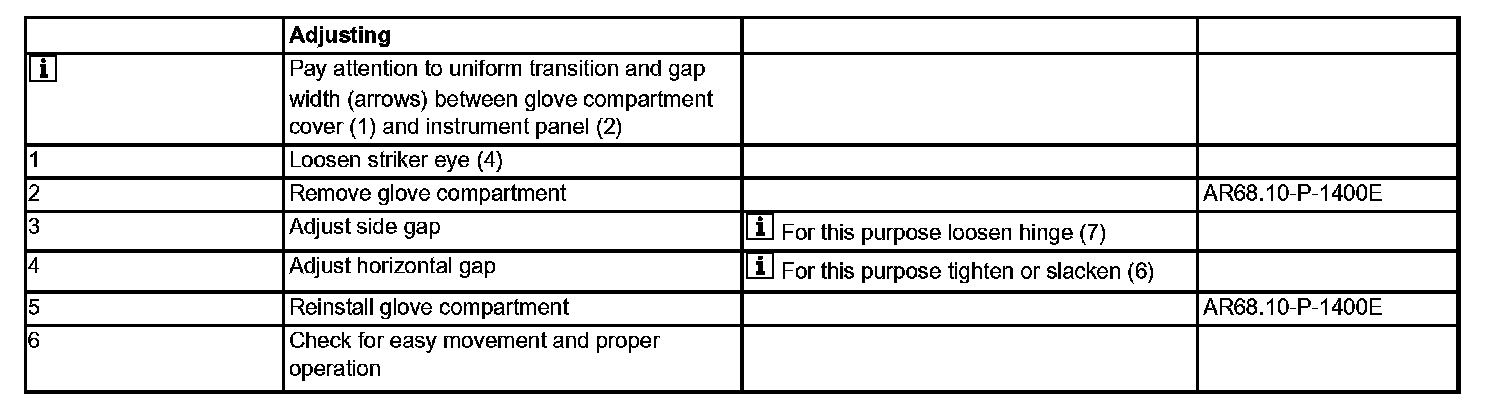

Steps 1 - 6:
