Antitheft and Alarm Systems

Anti-theft Alarm System (ATA) PE80.50-U-2000WC

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

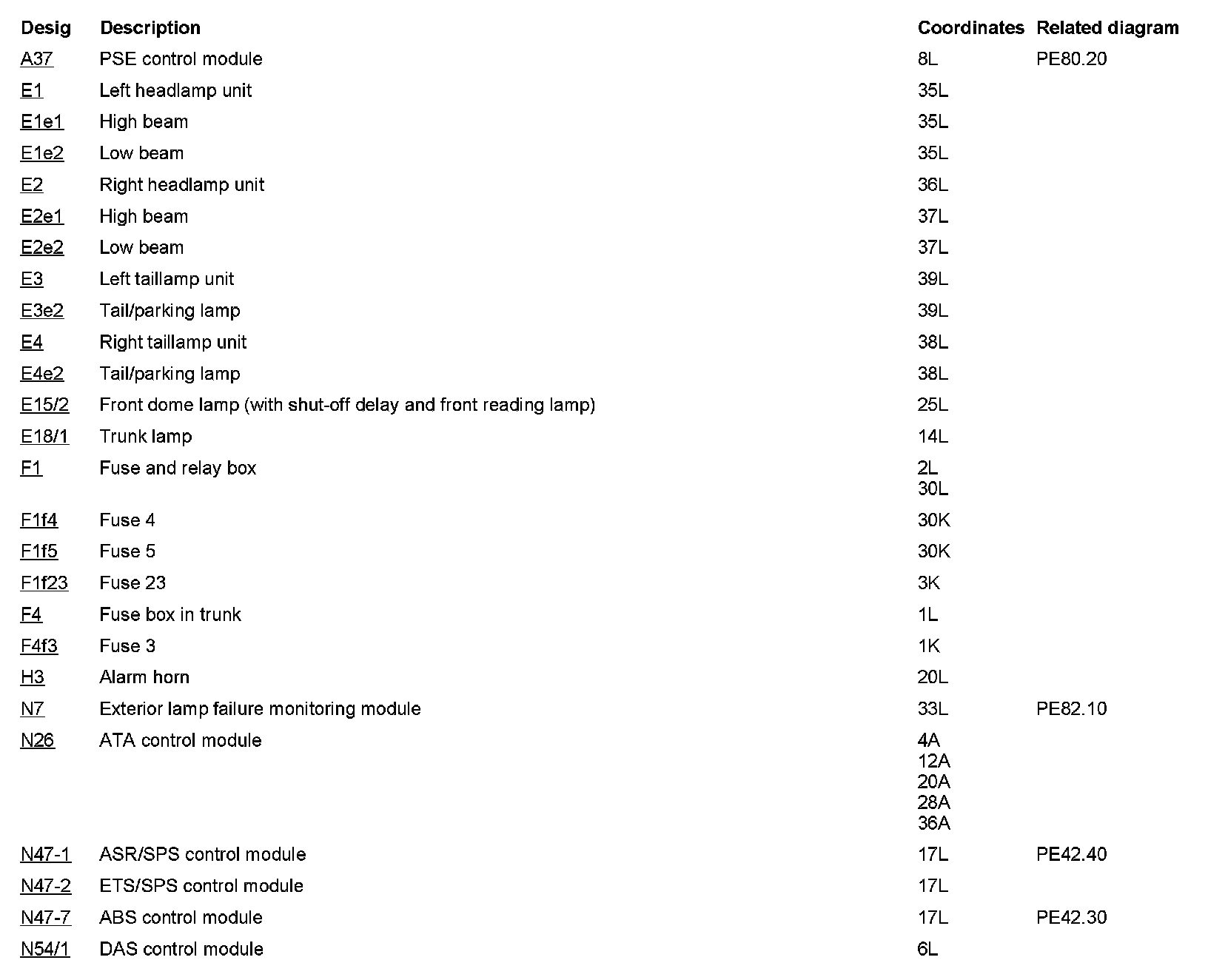

Component Description/Coordinates, A37 To N54/1:

Component Description/Coordinates, N57 To Z21/2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
