Harmonic Balancer - Crankshaft Pulley
>>
1ST Version
1ST Version

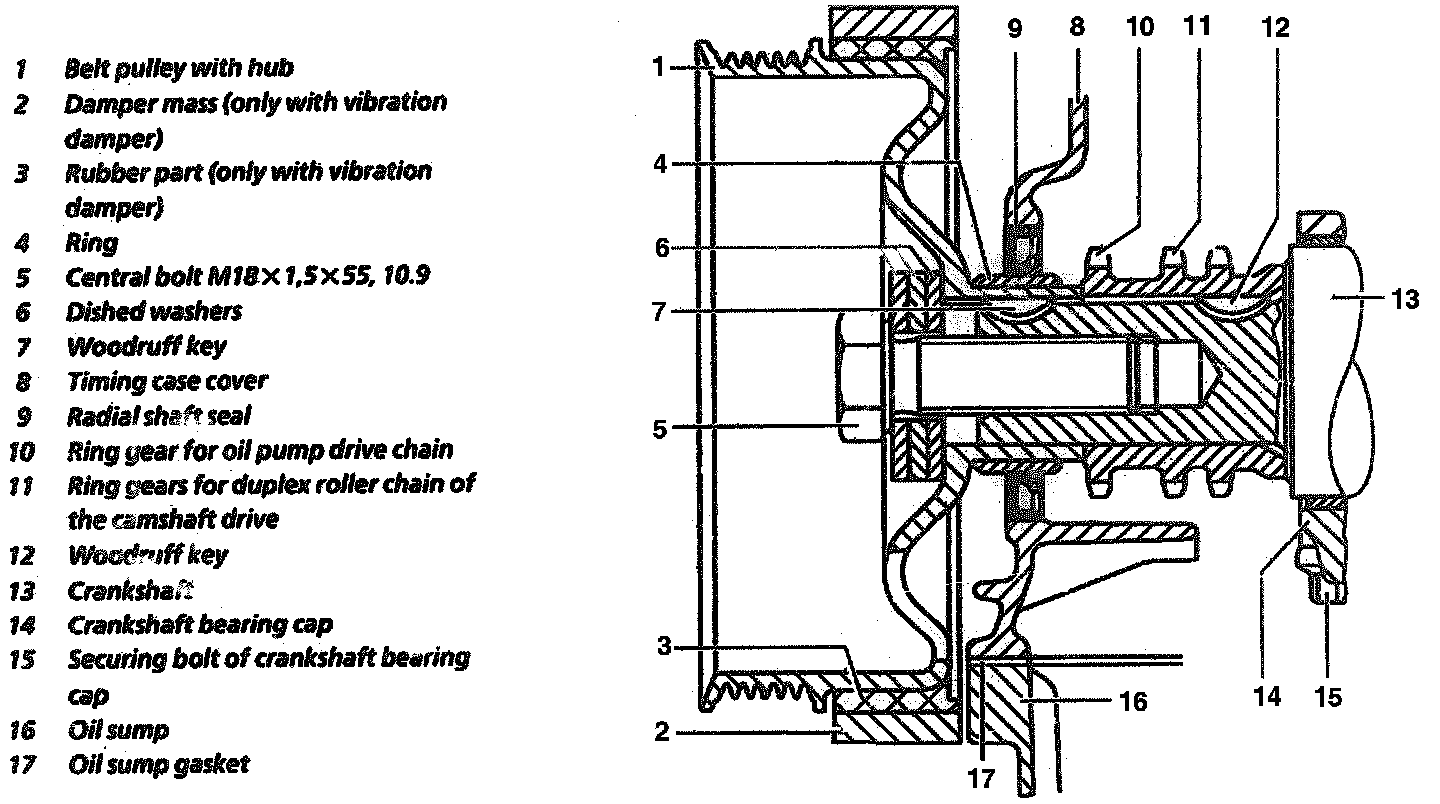

Arrangement Of Belt Pulley/Vibration Damper 1st Version:
