Harmonic Balancer - Crankshaft Pulley
>>

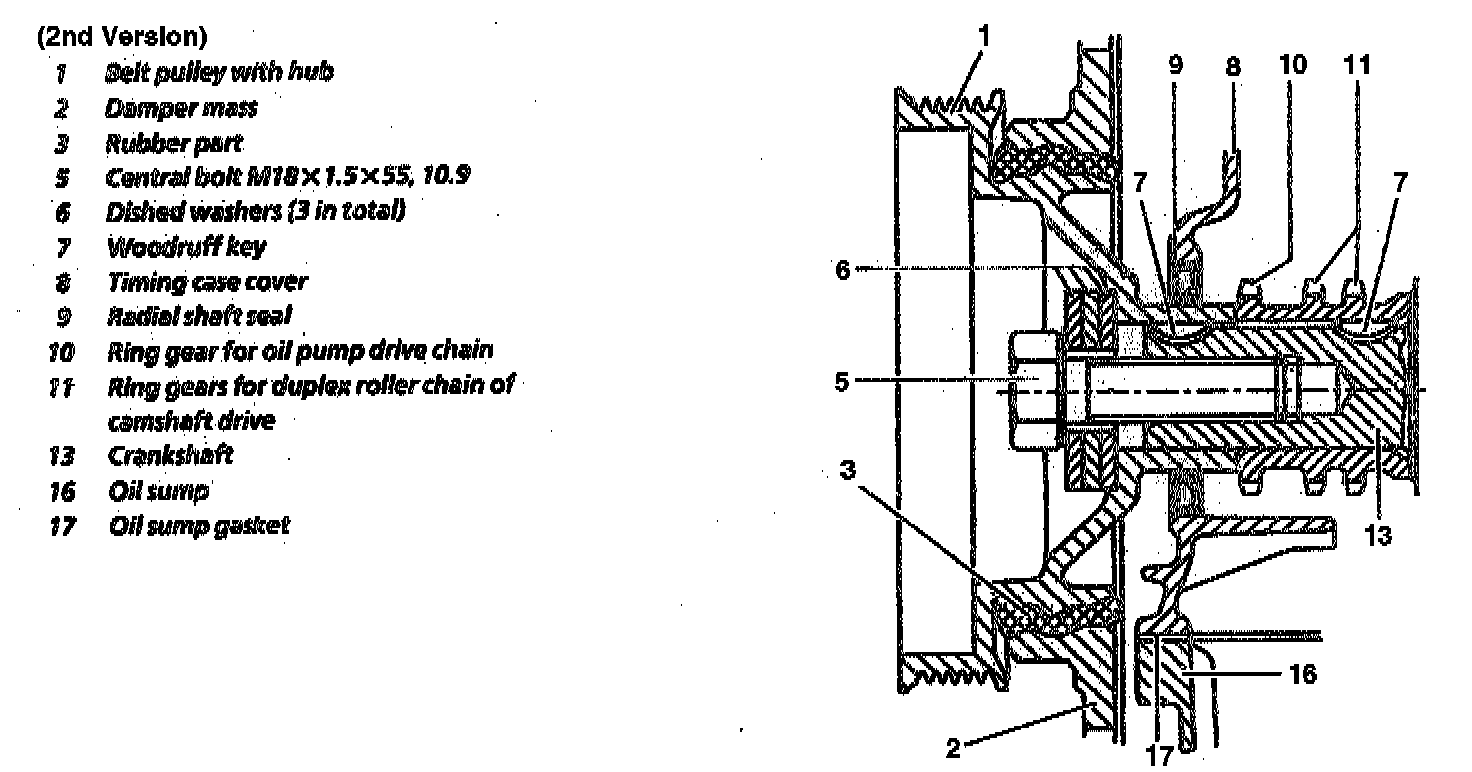

2ND Version
2ND Version
Arrangement Of Belt Pulley/Vibration Damper 1st Version:
