Heater Control Valve: Service and Repair



Removing and Installing Duovalve

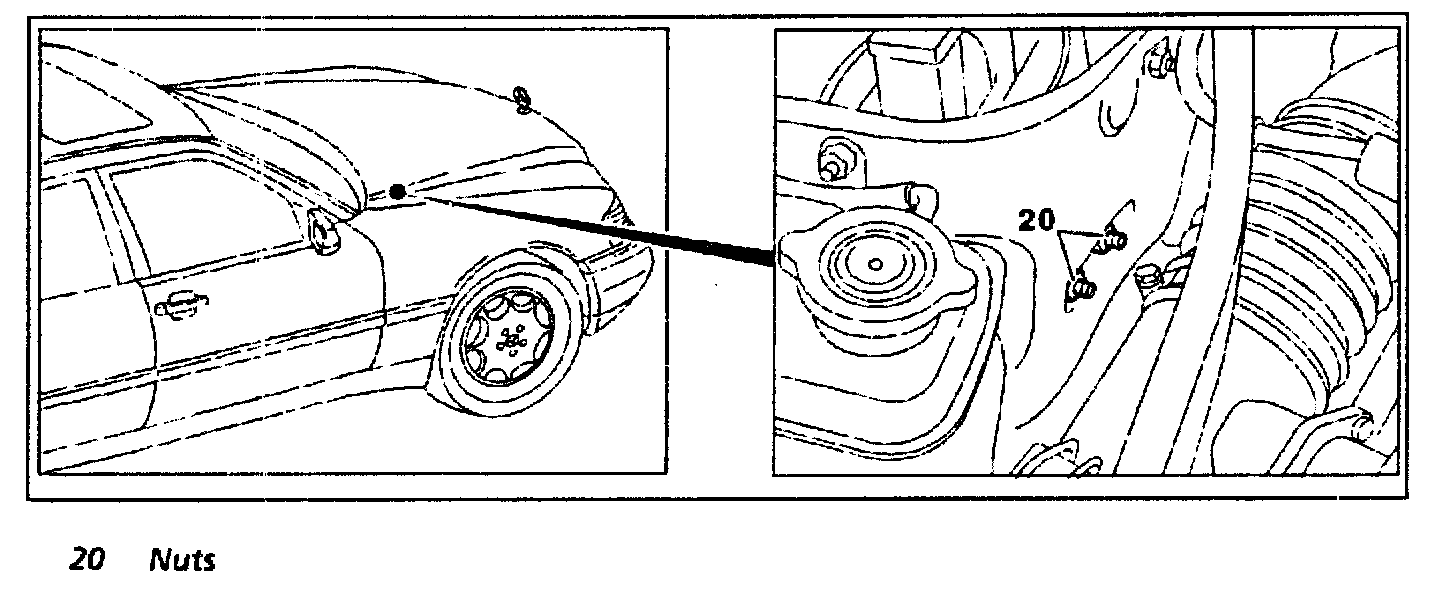

Component Identification

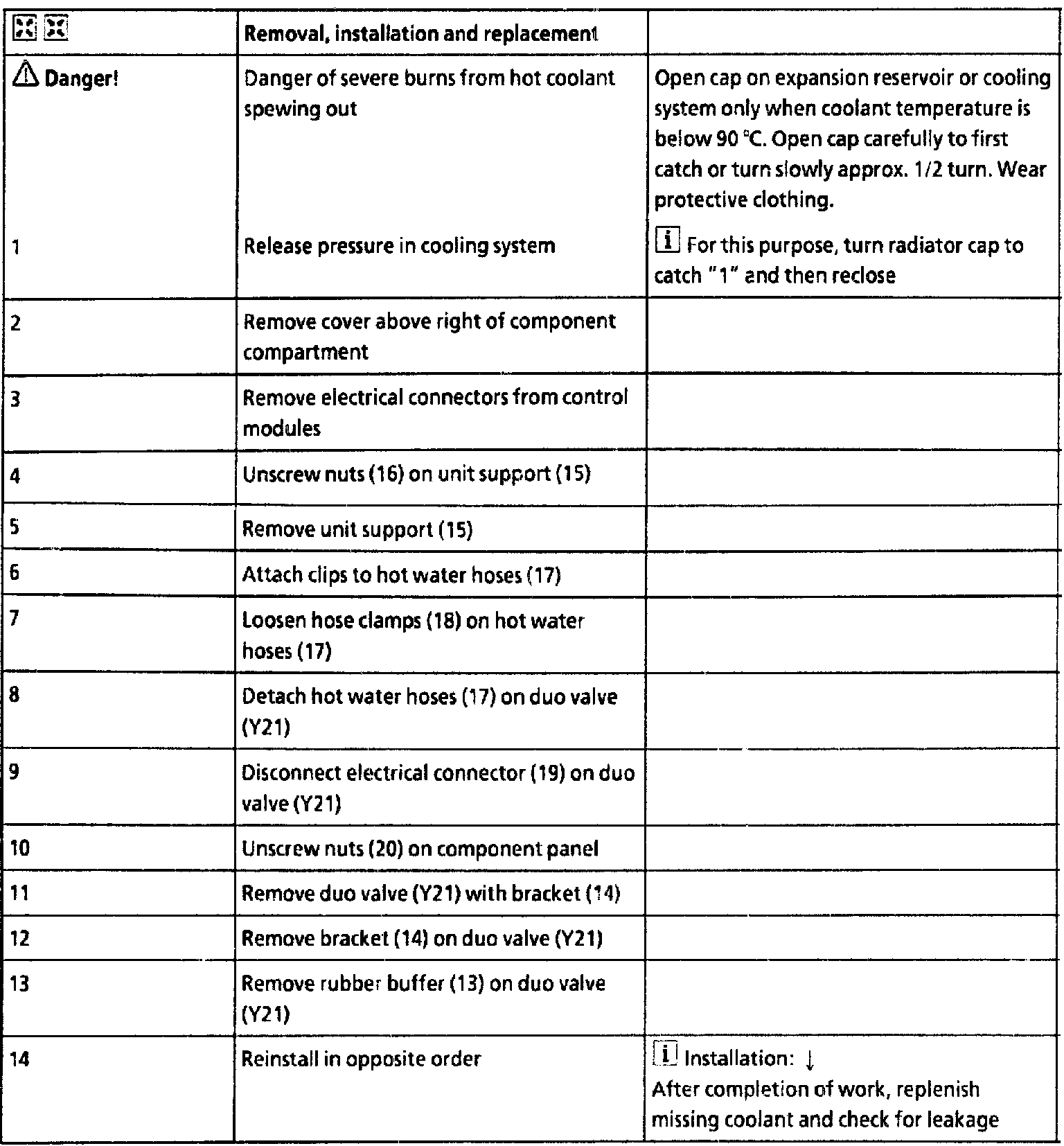

Removal, installation and replacement
