HFM-SFI Fuel Injection/Ignition System PE07.51-U-2000WH

HFM-SFI Fuel Injection/ignition System PE07.51-U-2000WH
- Engine compartment

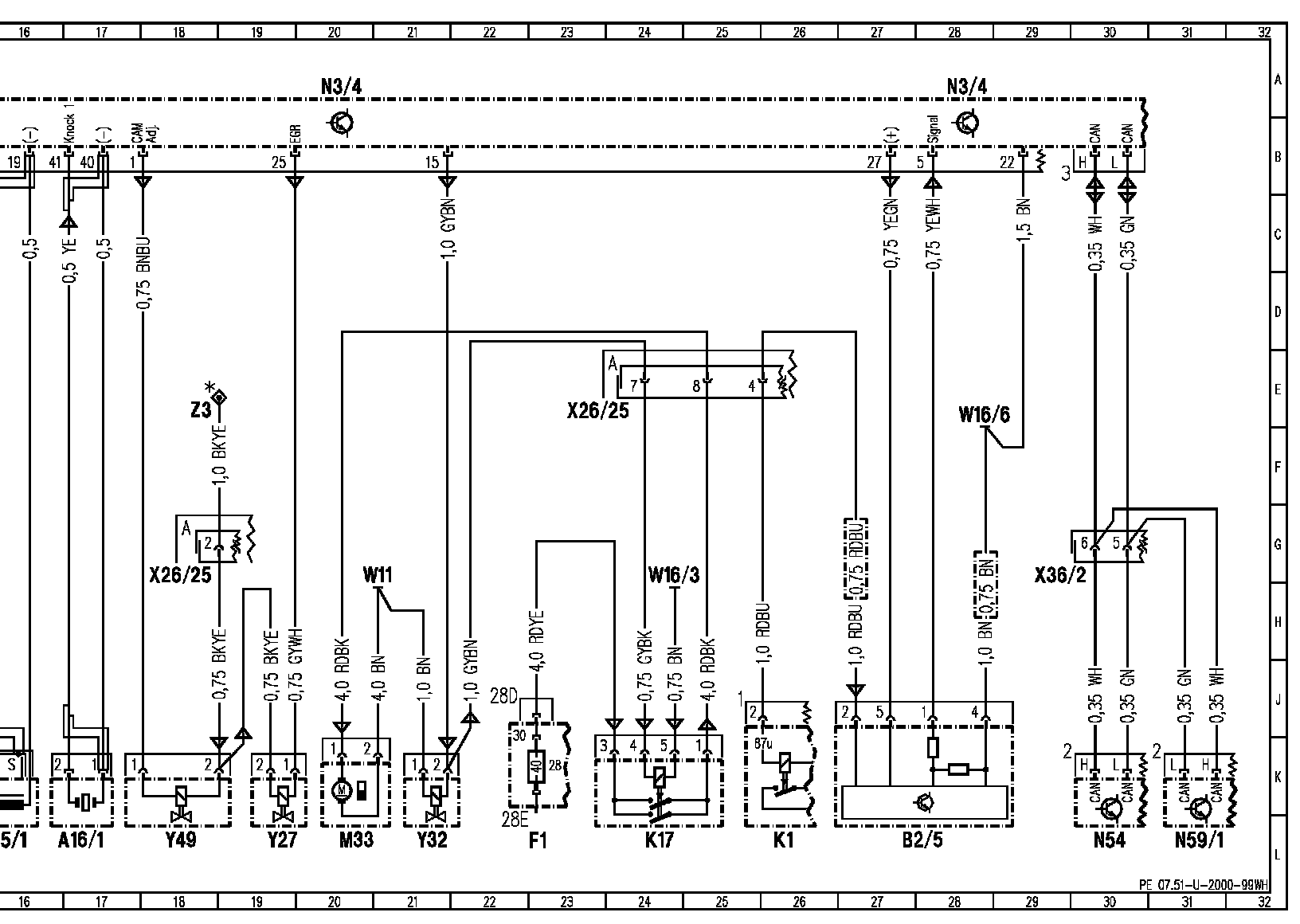

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Component Description/Coordinates, A16/1 To W16/6:

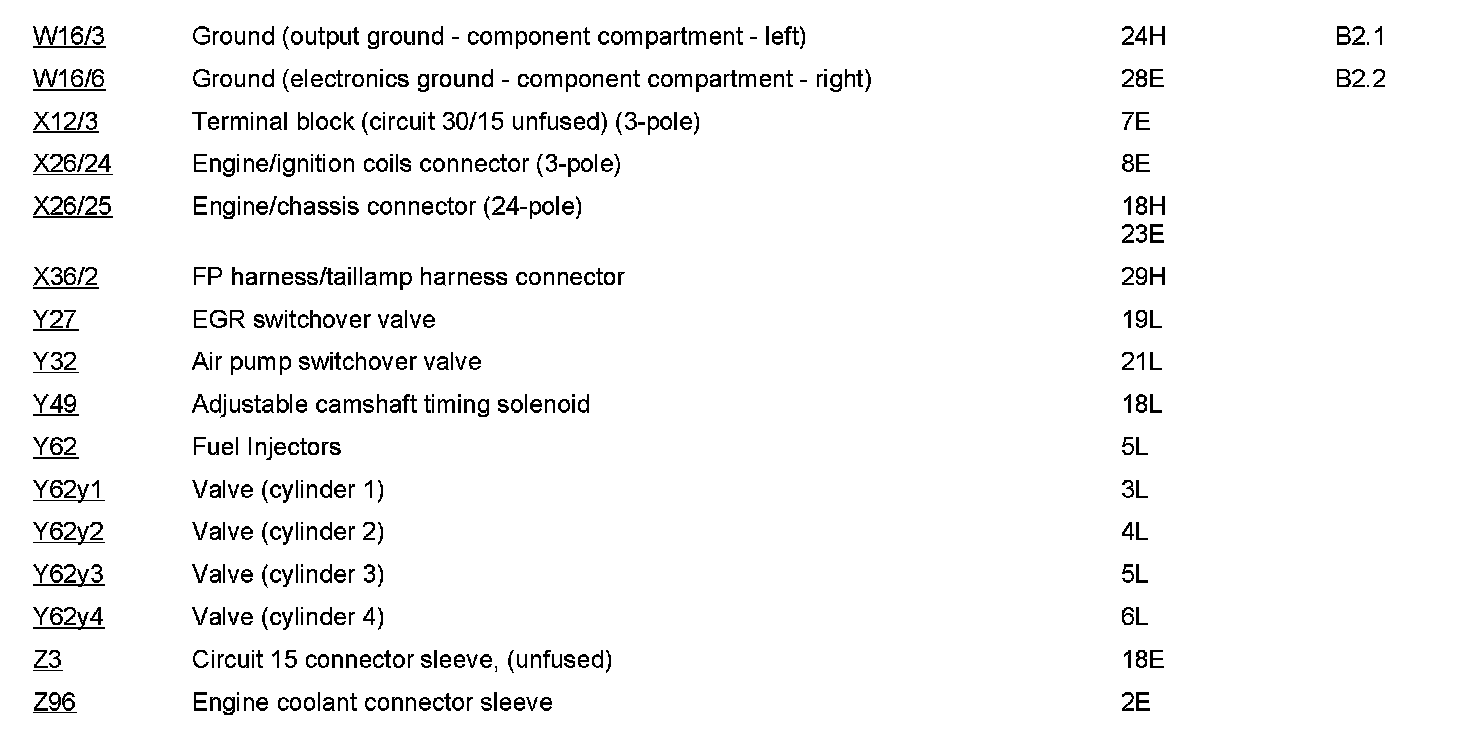

Component Description/Coordinates, W16/3 To Z96:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
