Electrical Diagrams

Automatic Transmission (AT) PE27.19-U-2000WF
- 4-speed automatic transmission

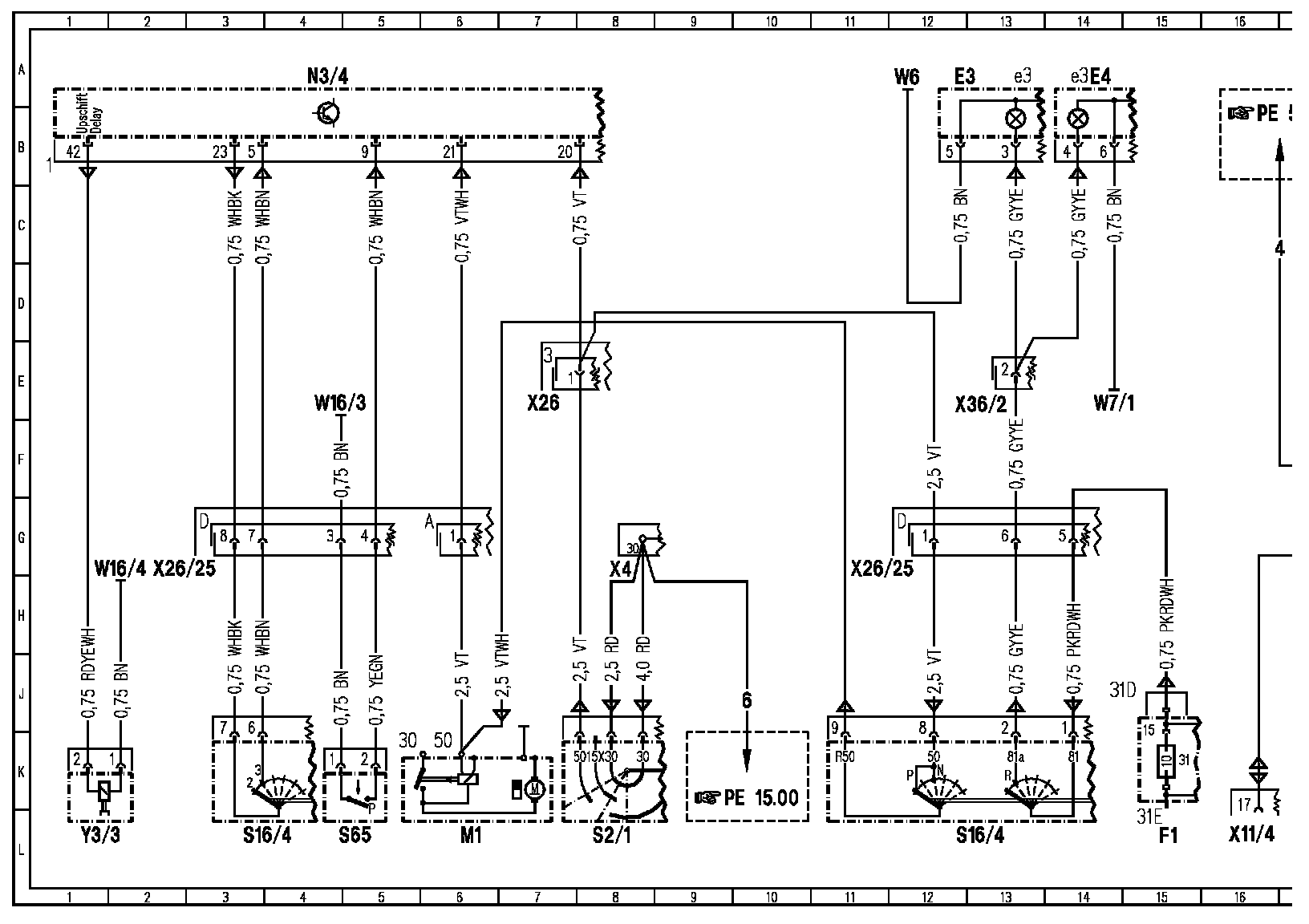

Wiring Diagram, Part 1:

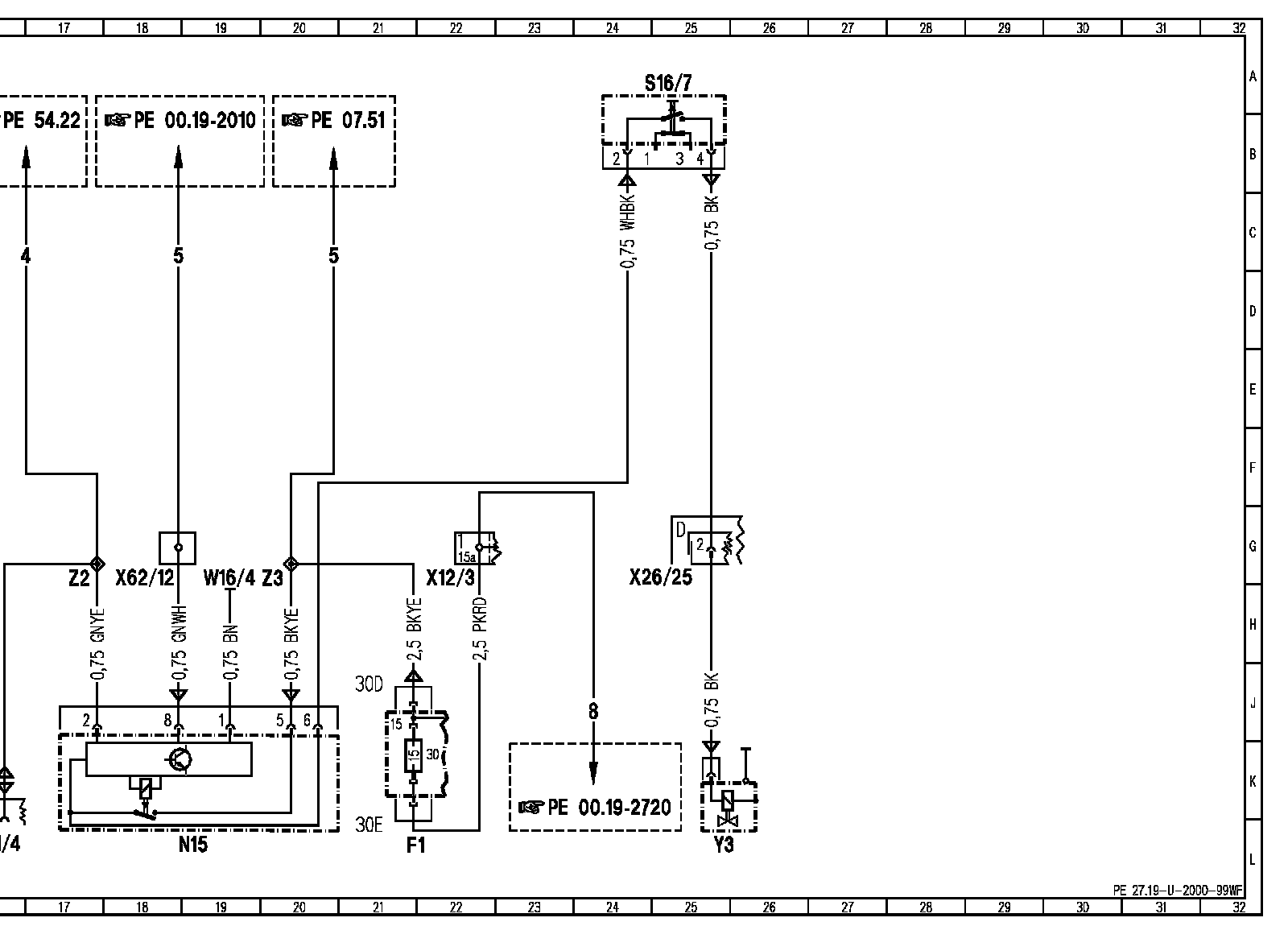

Wiring Diagram, Part 2:

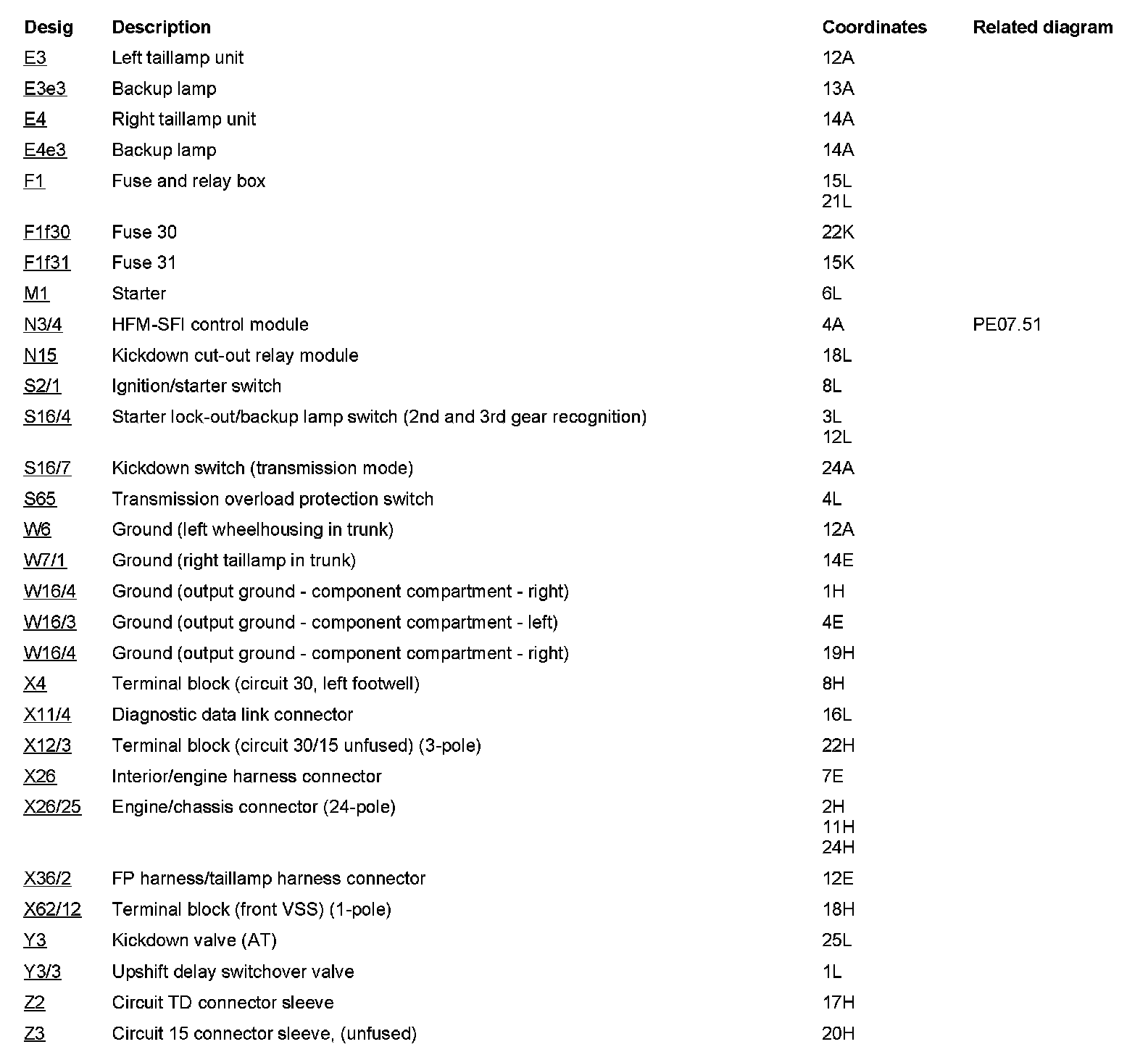

Component Description/Coordinates, E3 To Z3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
