Windshield Wiper PE82.30-U-2000WB

Windshield Wiper PE82.30-U-2000WB

Wiring Diagram, Part 1:

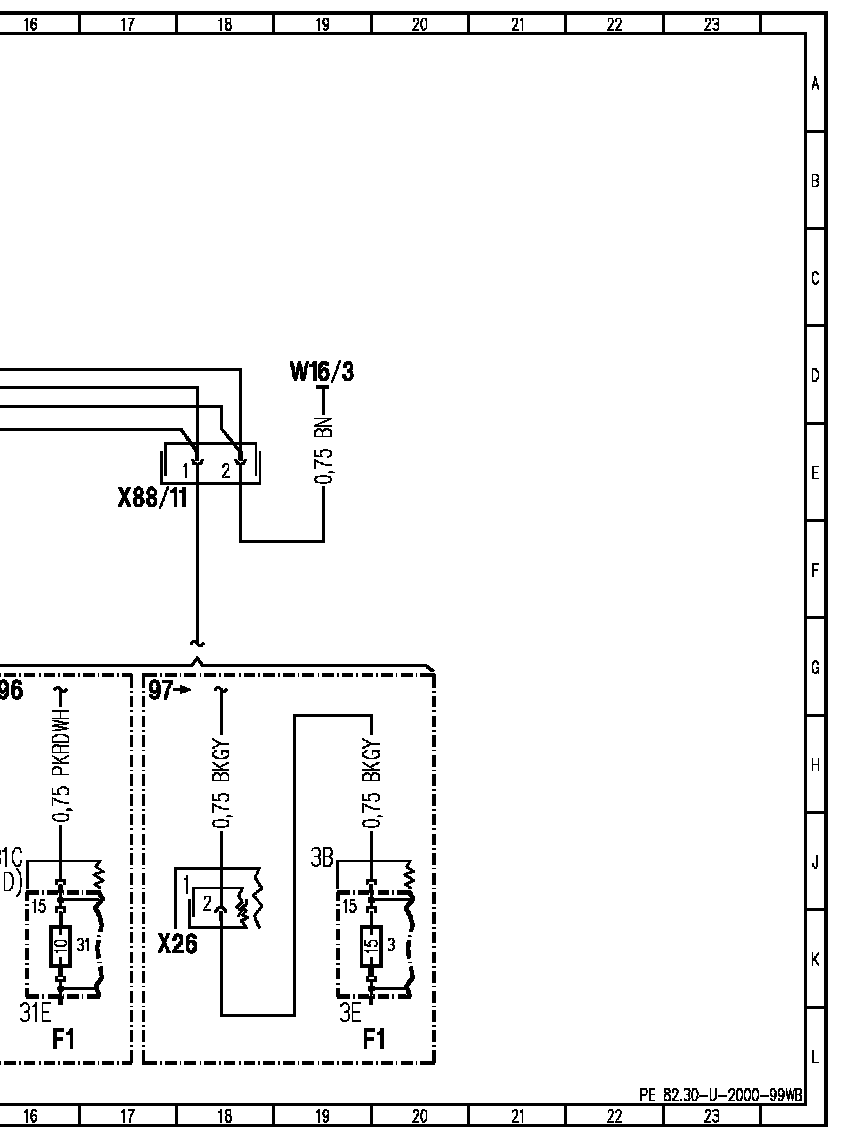

Wiring Diagram, Part 2:

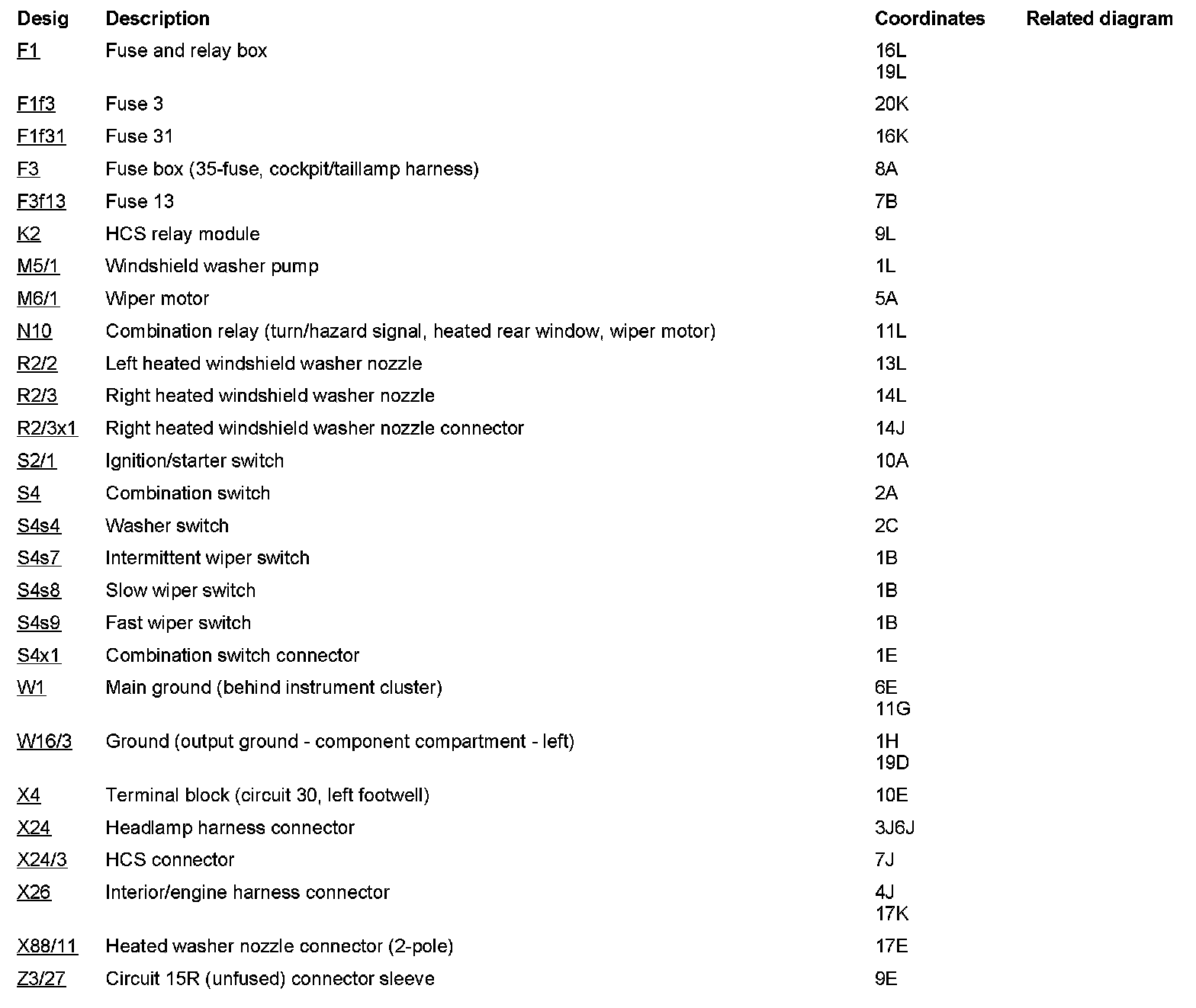

Component Description/Coordinates, F1 To Z3/27:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
