Rain Sensor: Service and Repair

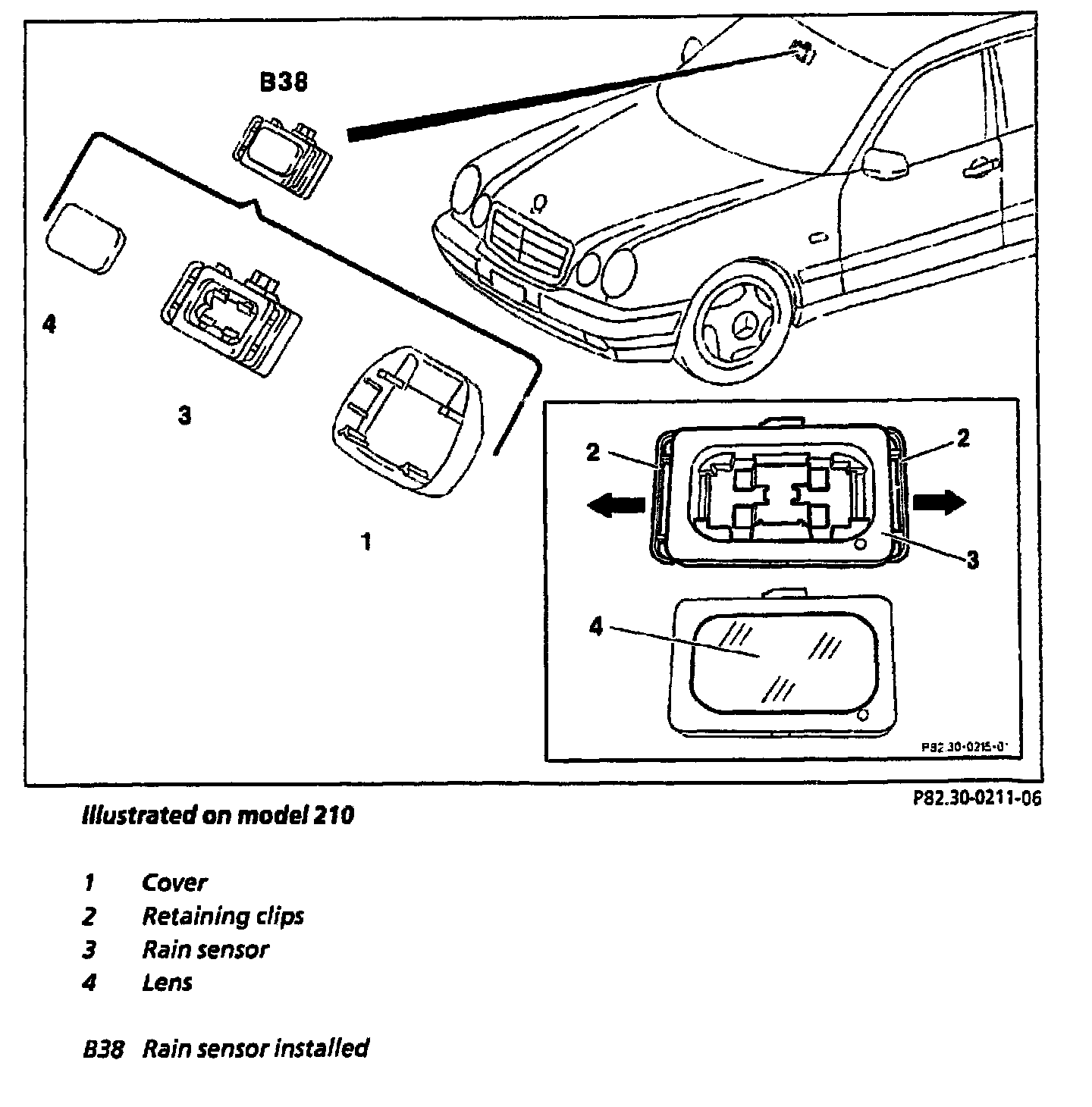

Illustrated On Model 210:

1. Remove cover (1).
2. Unhook retaining clips (2).
3. Remove rain sensor (3).

NOTE: Lens (4) is glued to windshield. Do not replace!

4. Disconnect wiring harness.
5. Reinstall in opposite order.
6. Check for proper function.
