Trunk / Liftgate: Adjustments
AR88.50-P-5200E Adjust Trunk Lid

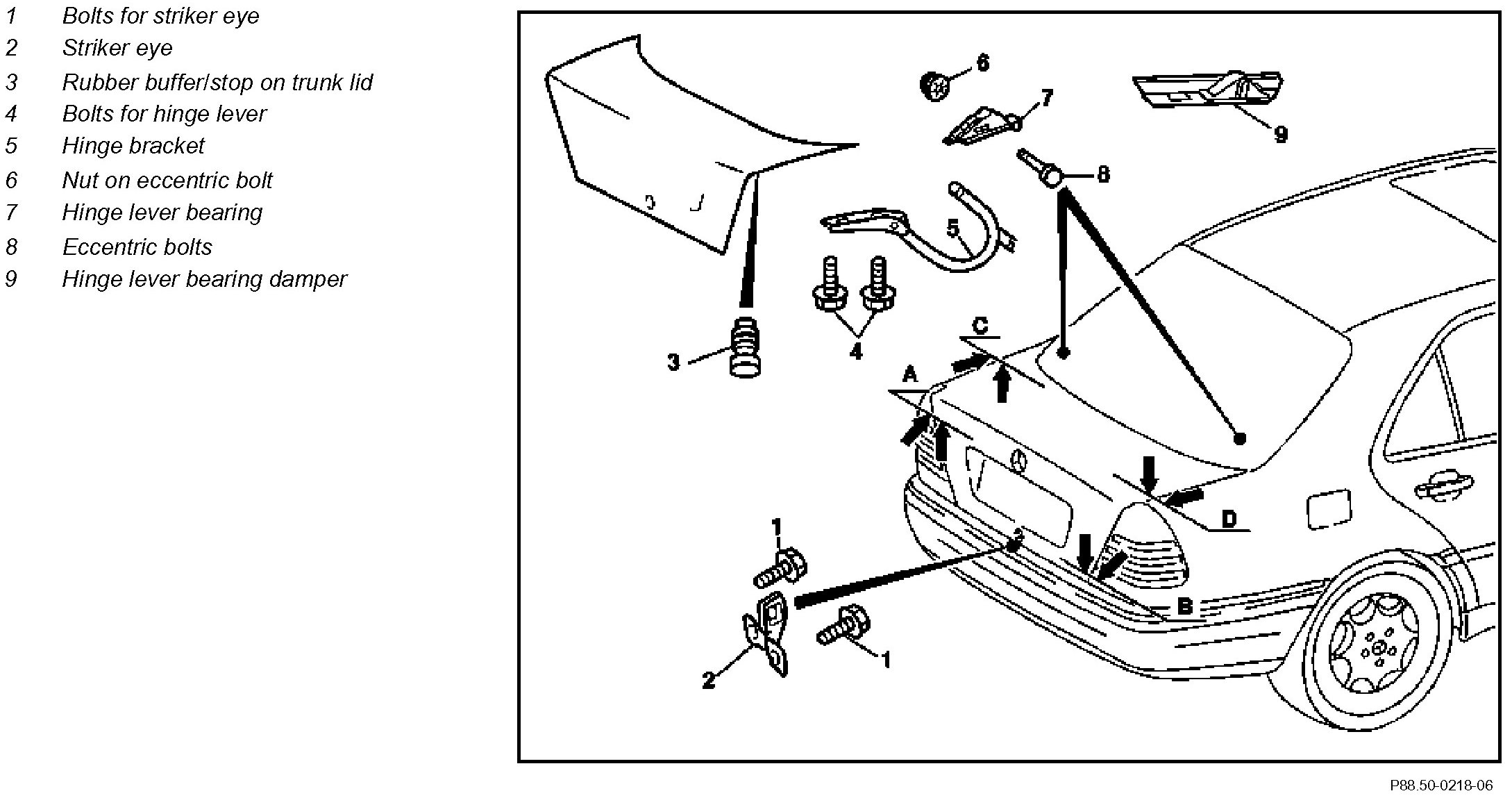

Component Identification:
Steps 1 - 15:

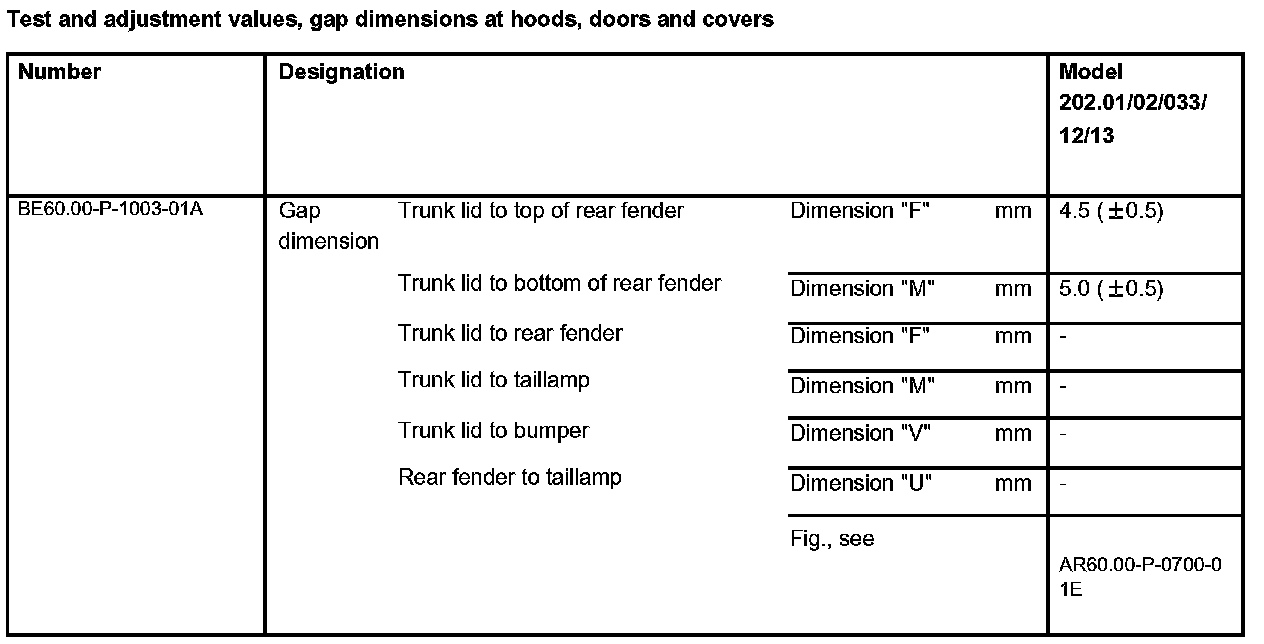

Test And Adjustment Values, Gap Dimensions At Hoods, Doors And Covers:

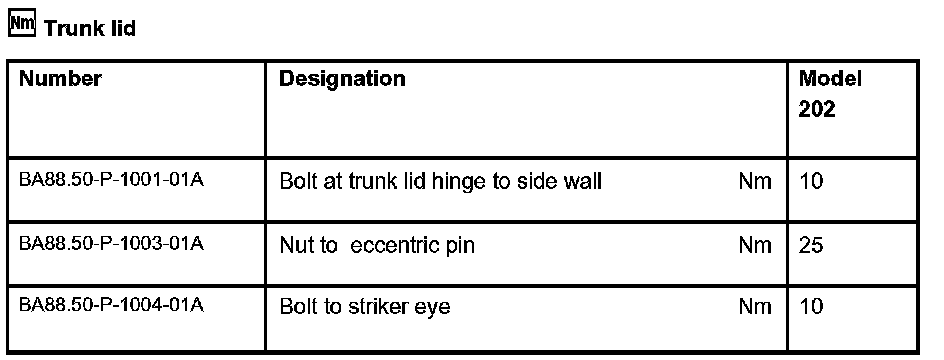

Trunk Lid:

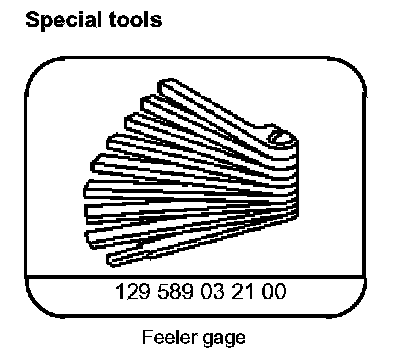

Special Tools:
