AR88.70-P-9000E Completely Remove/Install Exterior Mirror
AR88.70-P-9000E Completely Remove/Install Exterior Mirror
AR88.70-P-9000E Completely Removing And Installing Exterior Mirror

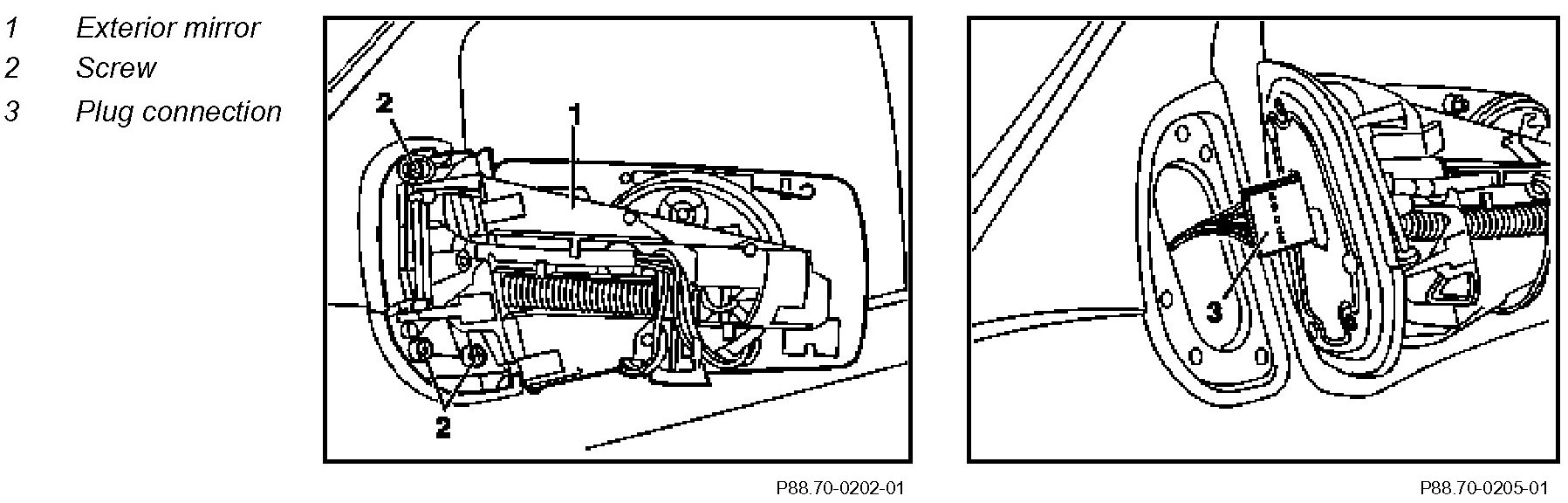

Component Identification:

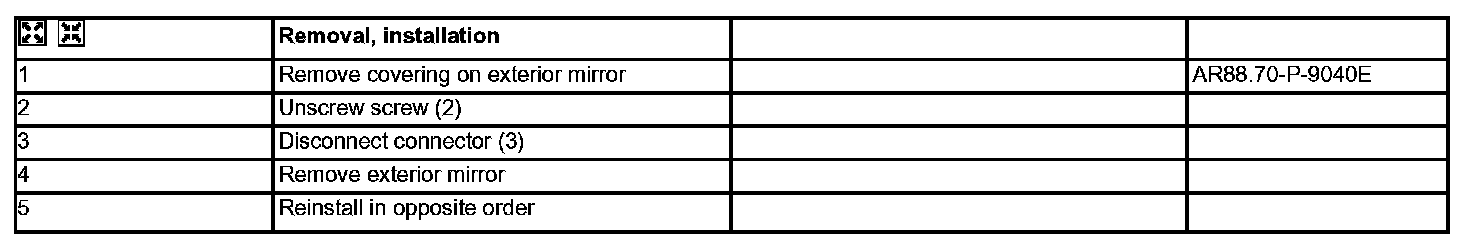

Steps 1 - 5:
