Electronic Accelerator (EA)/Cruise Control (CC)/Idle Speed Control (ISC) PE30.20-U-2000WC

Electronic Accelerator (EA)/cruise Control (CC)/idle Speed Control (ISC) PE30.20-U-2000WC

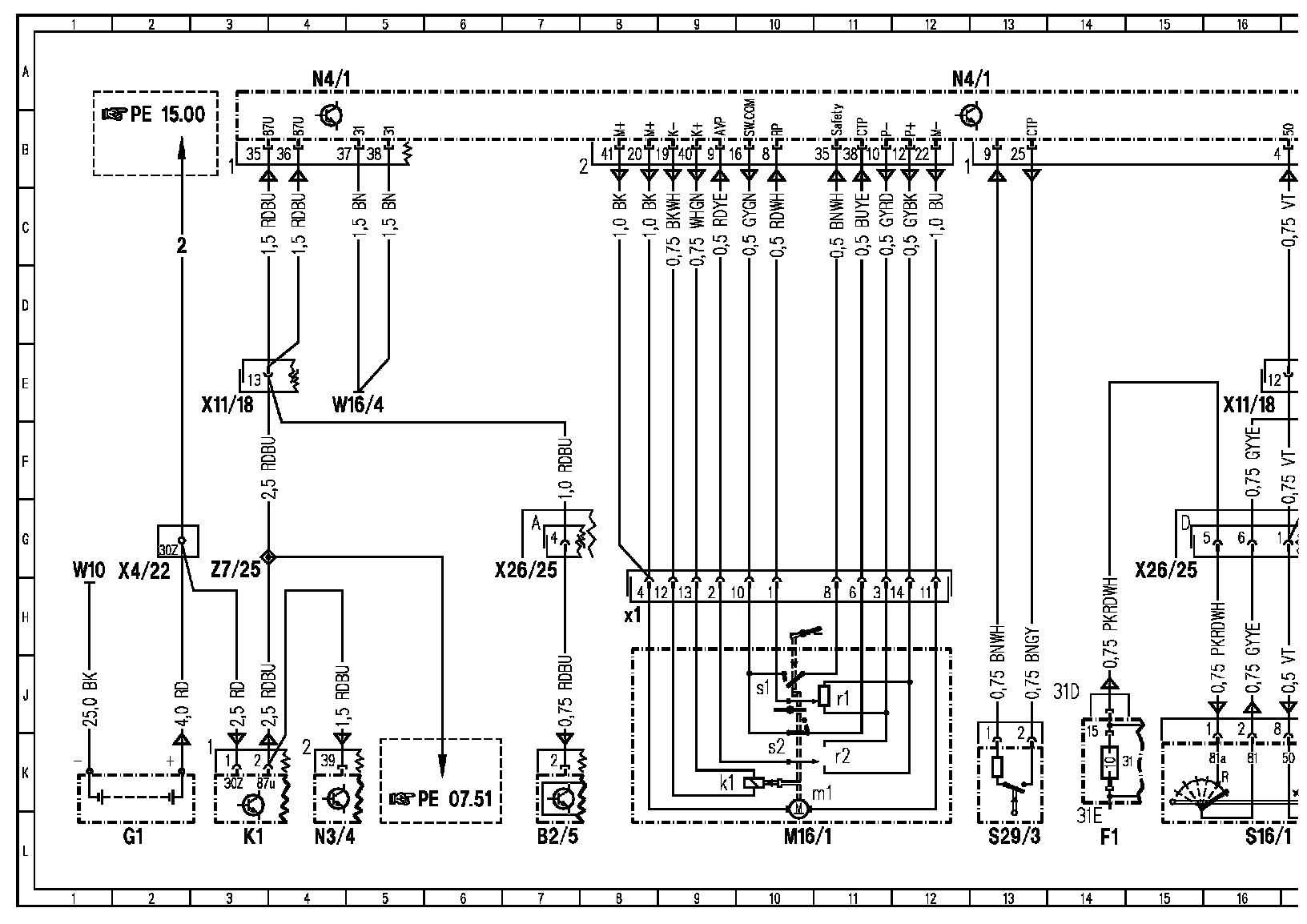

Wiring Diagram, Part 1:

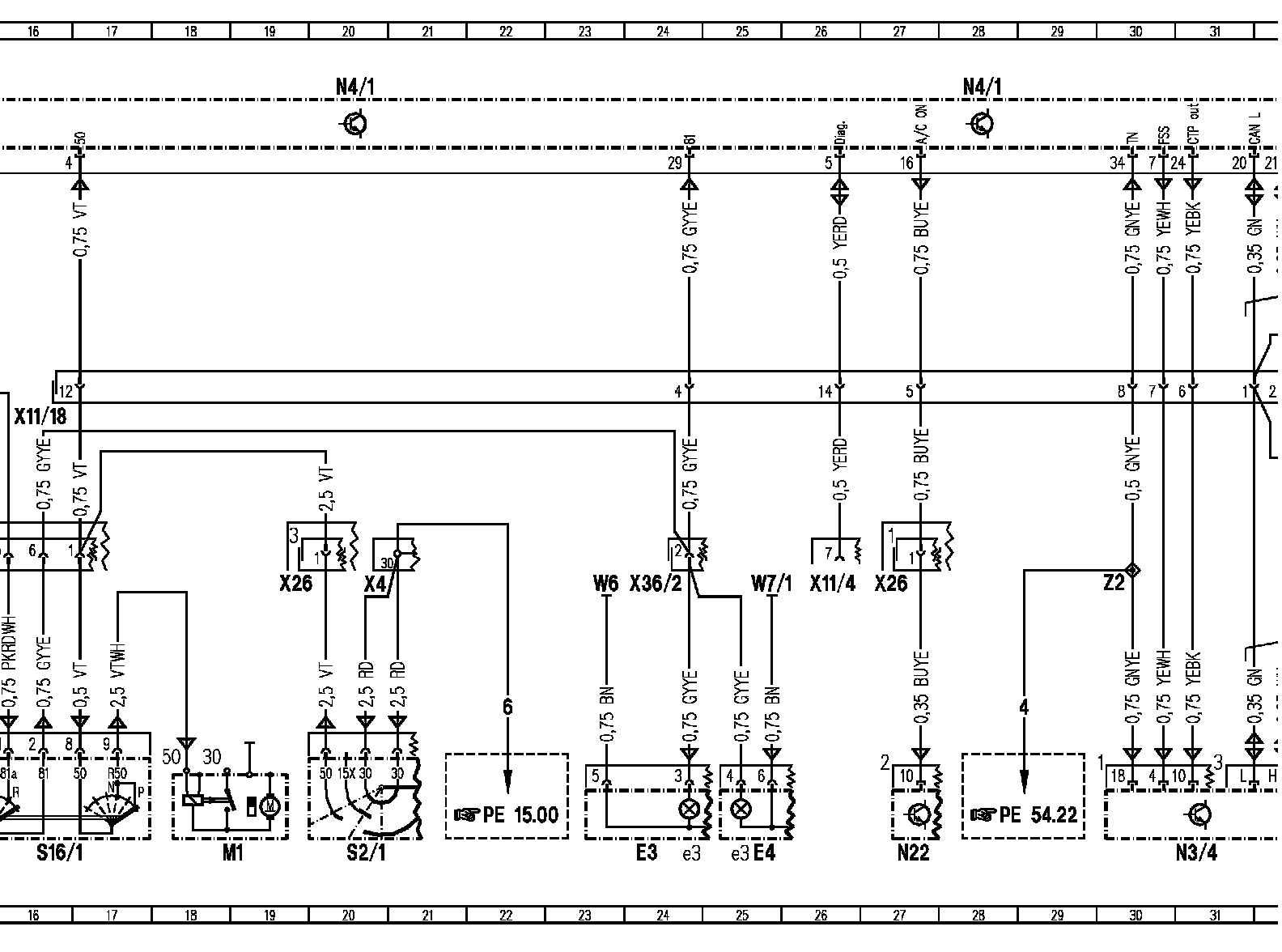

Wiring Diagram, Part 2:

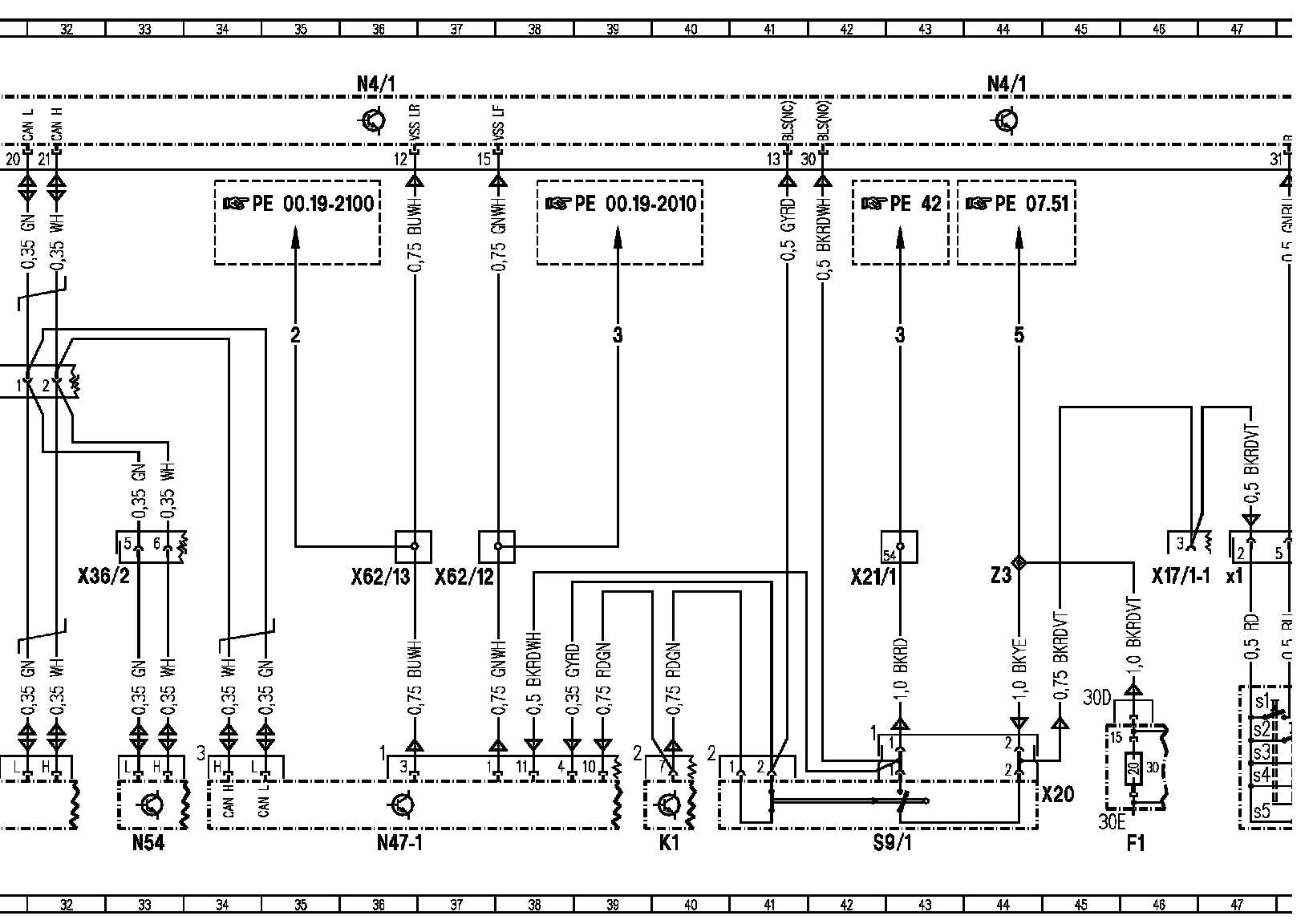

Wiring Diagram, Part 3:

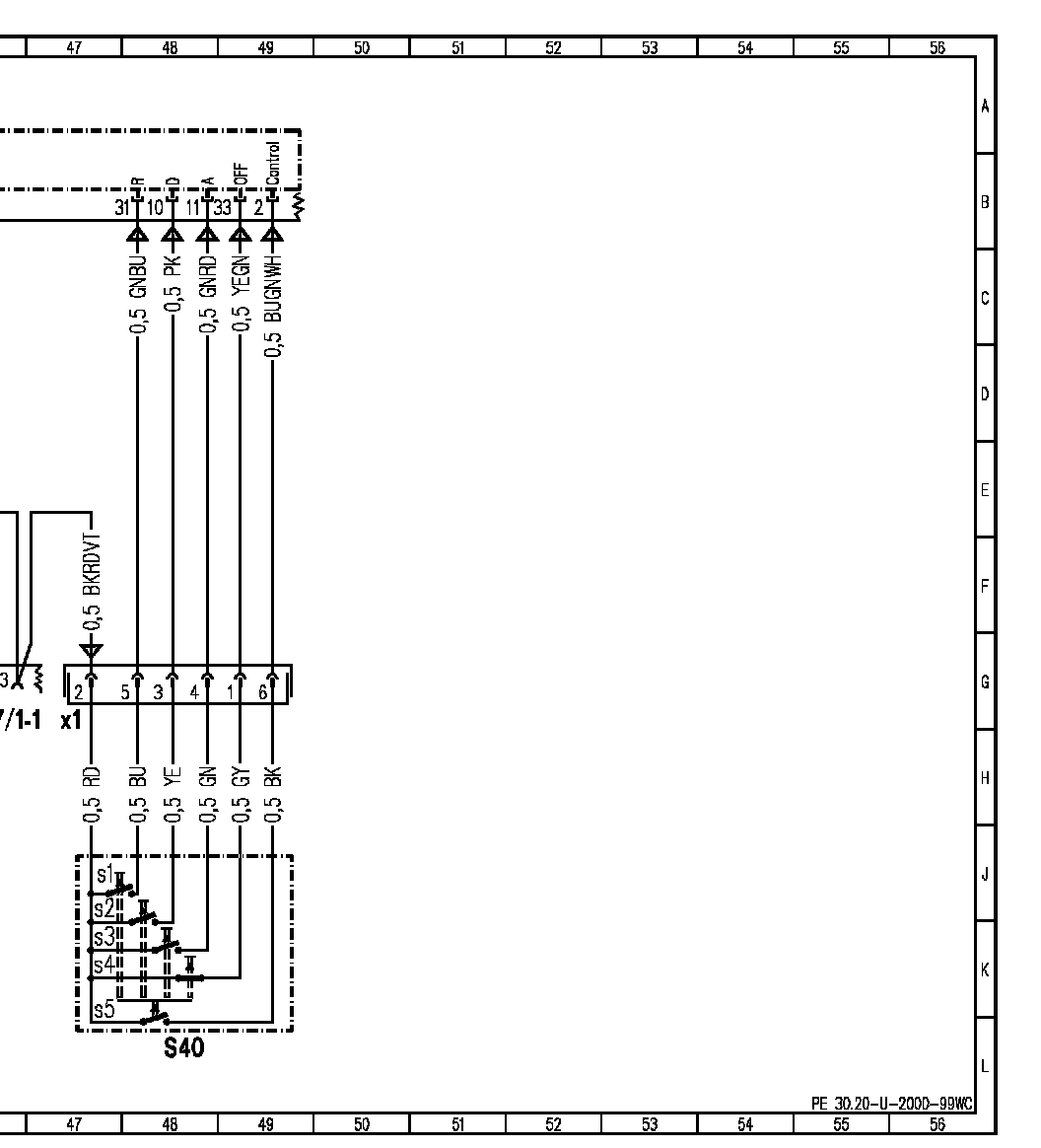

Wiring Diagram, Part 4:

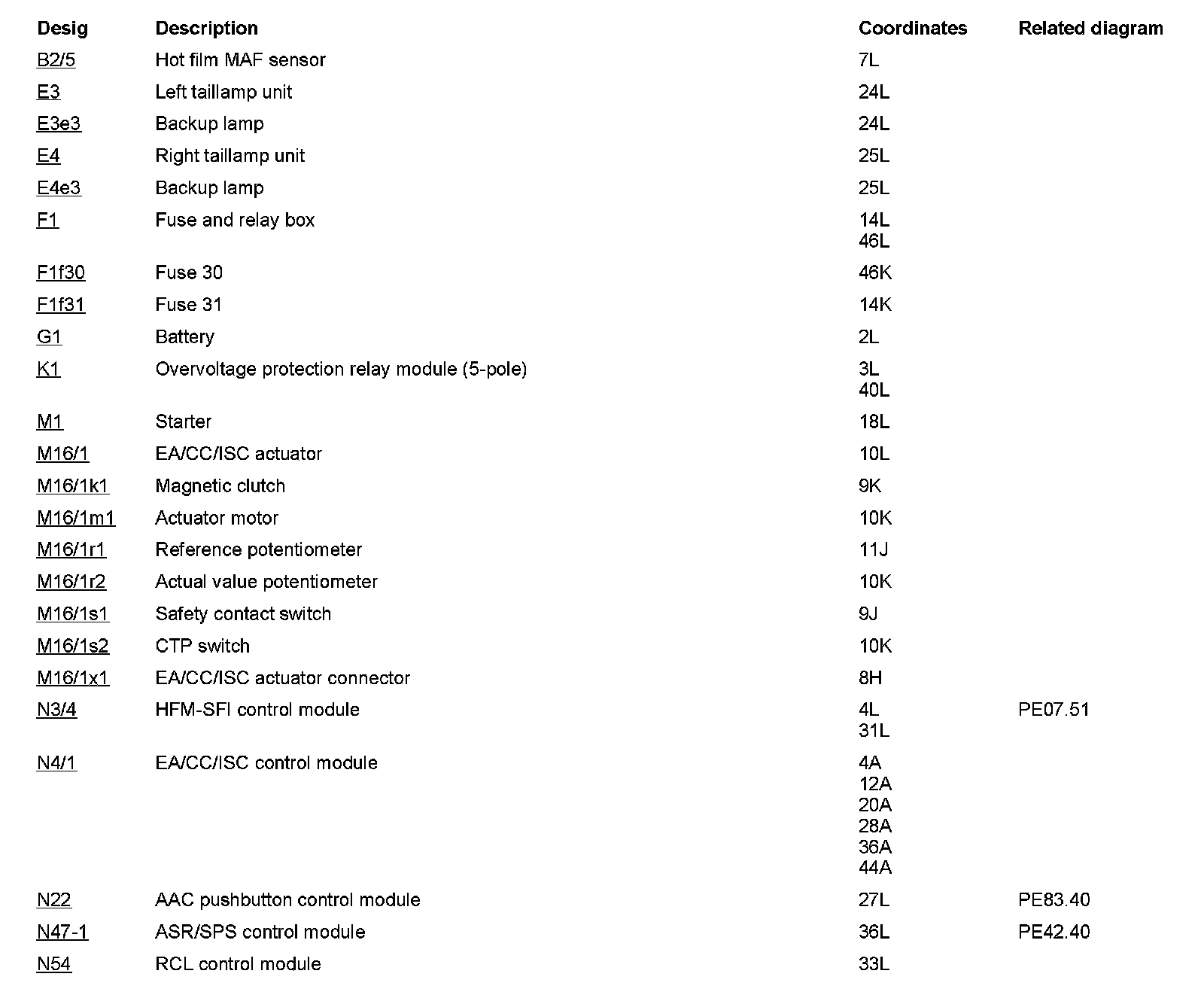

Component Description/Coordinates, B2/5 To N54:

Component Description/Coordinates, S2/1 To Z7/25:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
