Central Locking (CL) PE80.20-U-2000WC

Central Locking (CL) PE80.20-U-2000WC

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

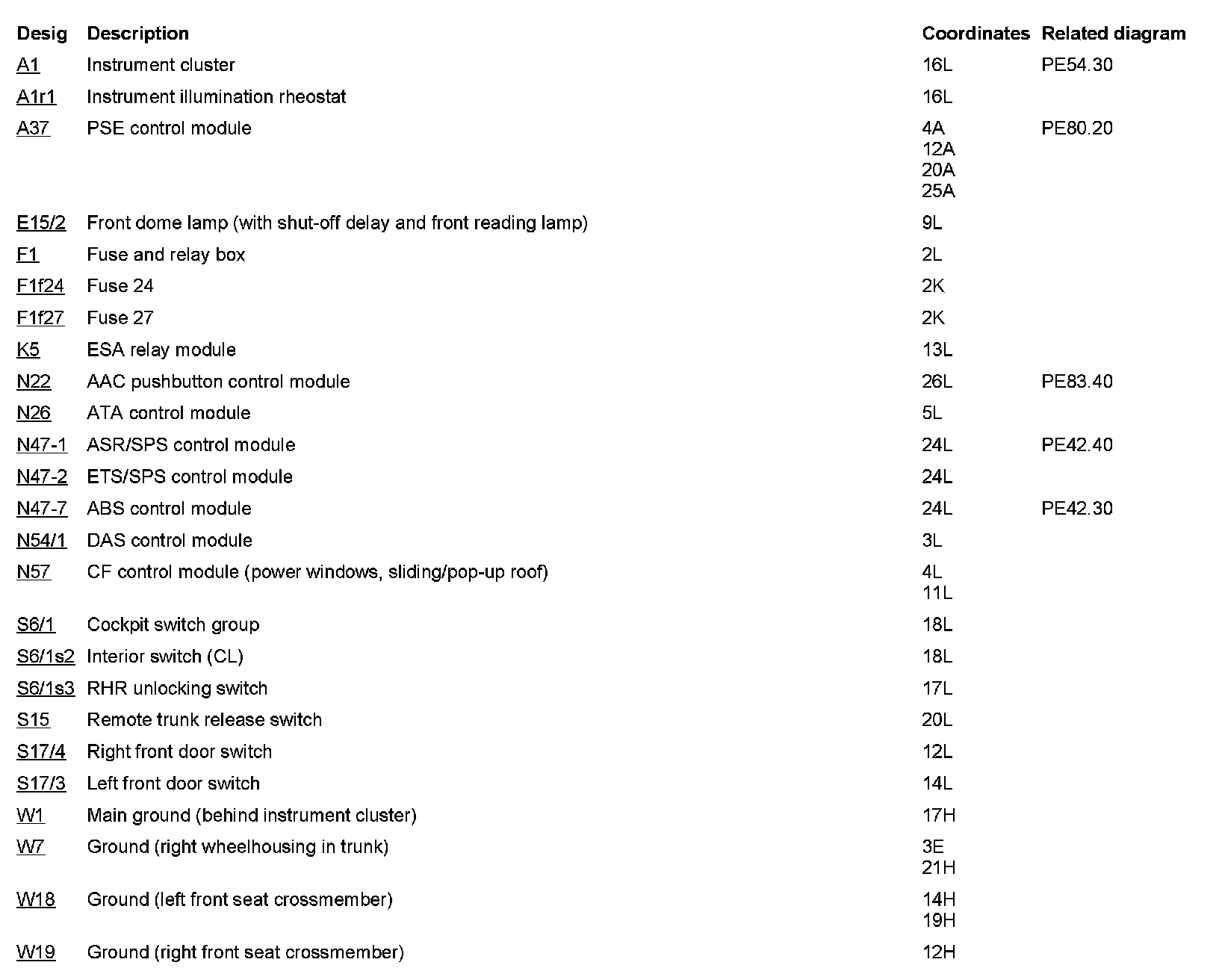

Component Description/Coordinates, A1 To W19:

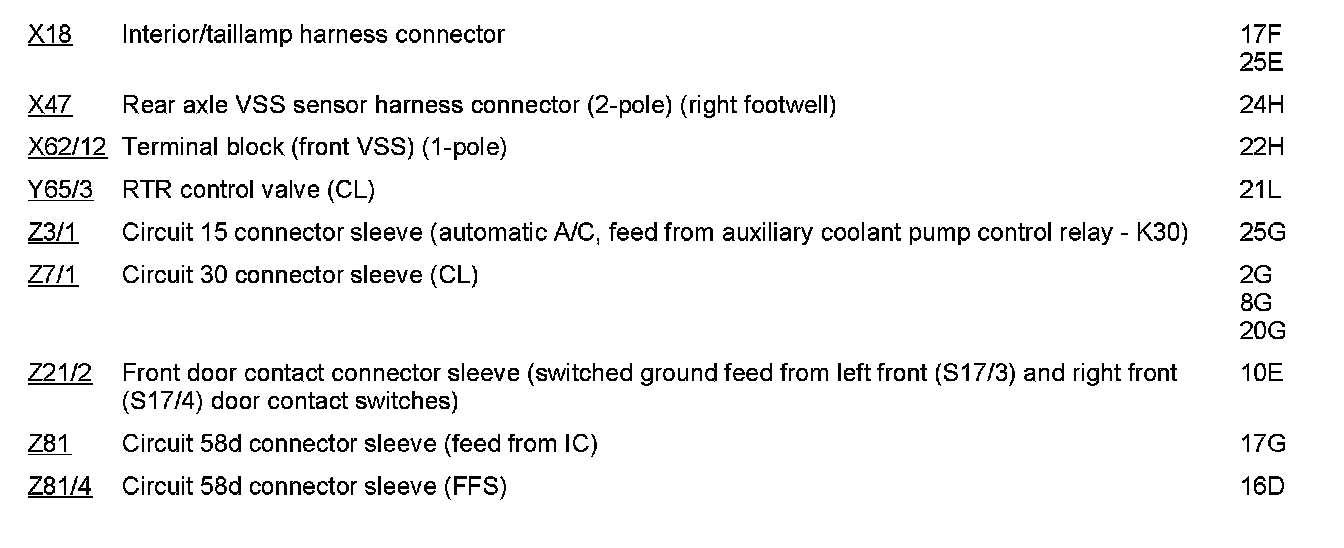

Component Description/Coordinates, X18 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
