System Diagram

Starter, Generator PE15.00-U-2000WC

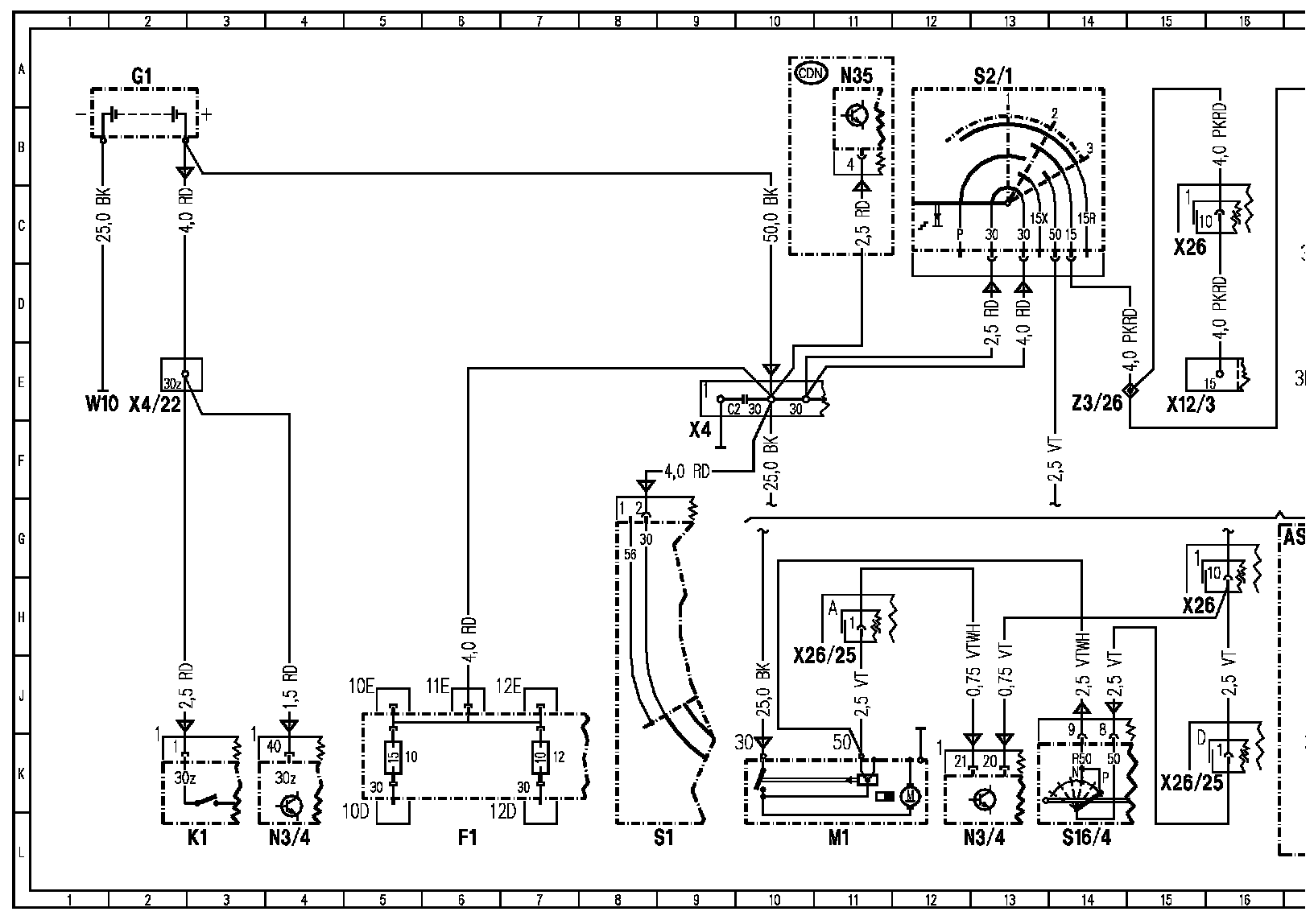

Wiring Diagram, Part 1:

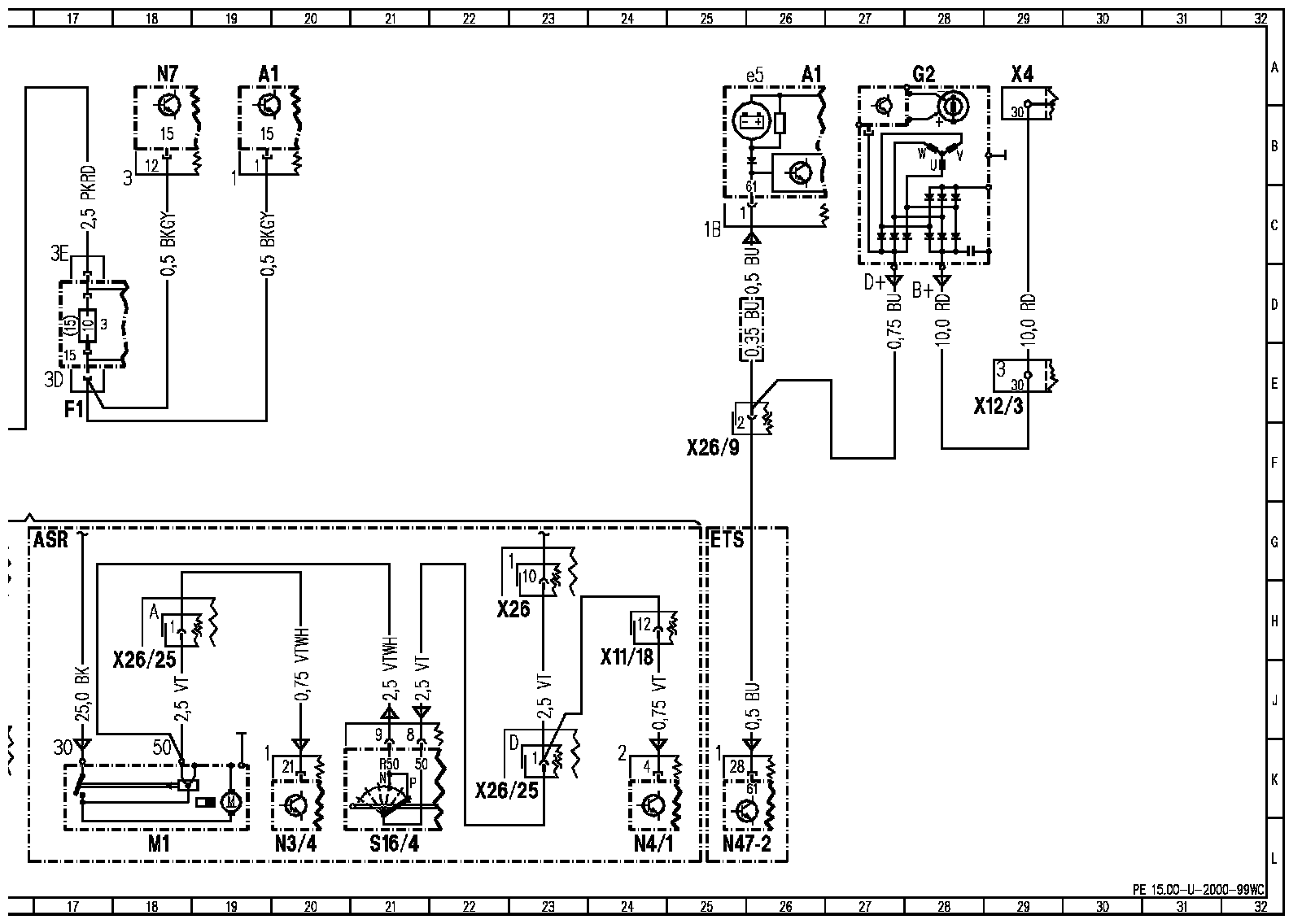

Wiring Diagram, Part 2:

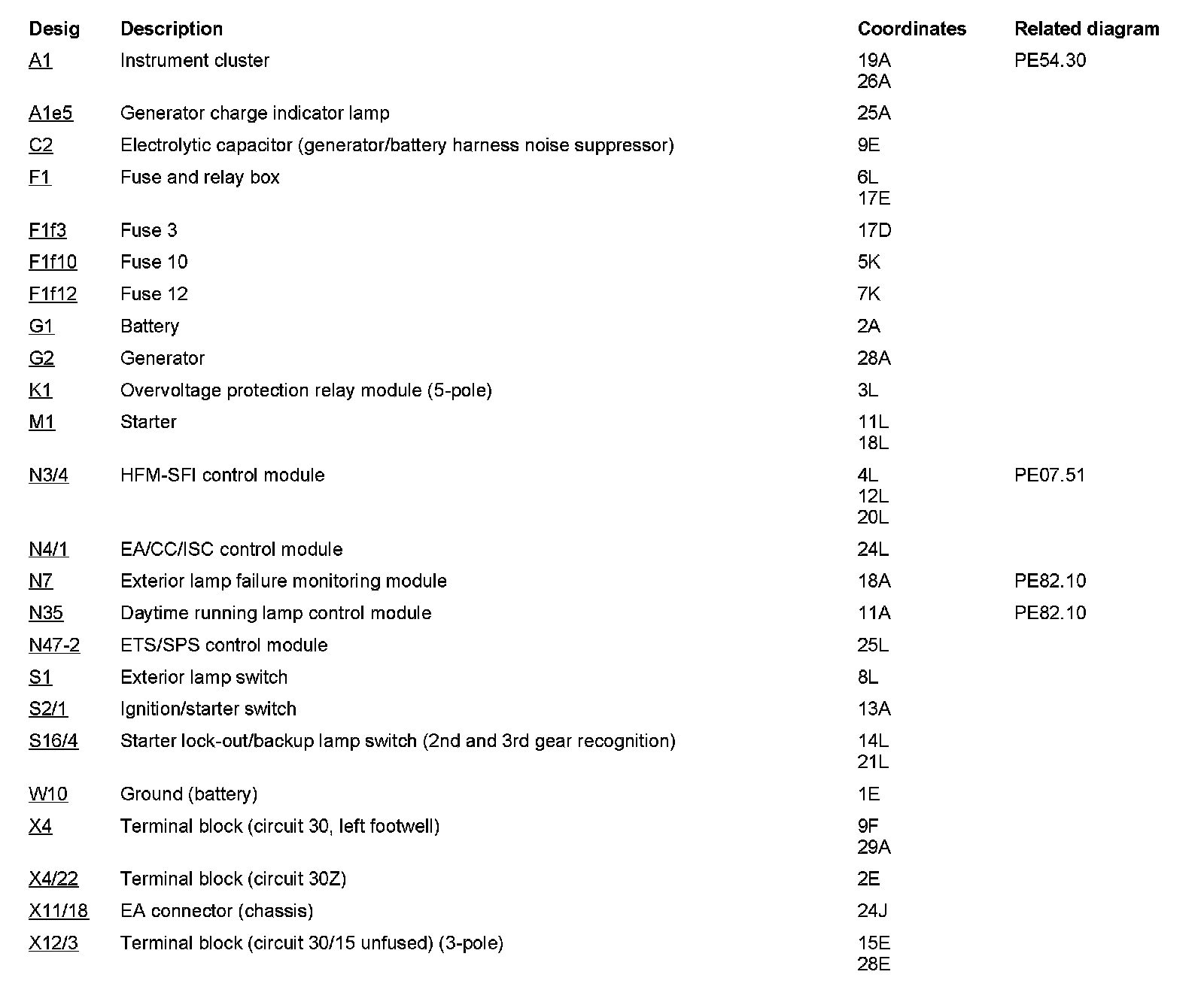

Component Description/Coordinates, A1 To X12/3:

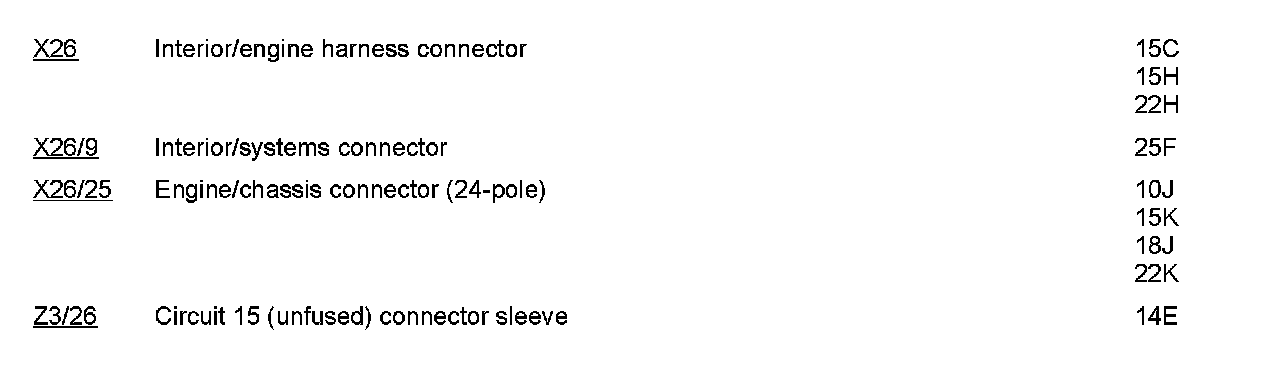

Component Description/Coordinates, X26 To Z3/26:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
