Audible Warning Device Control Module: Service and Repair



Replacing Seat Belt Reminder Control Unit/Seat Belt and Road Speed Reminder Control Unit

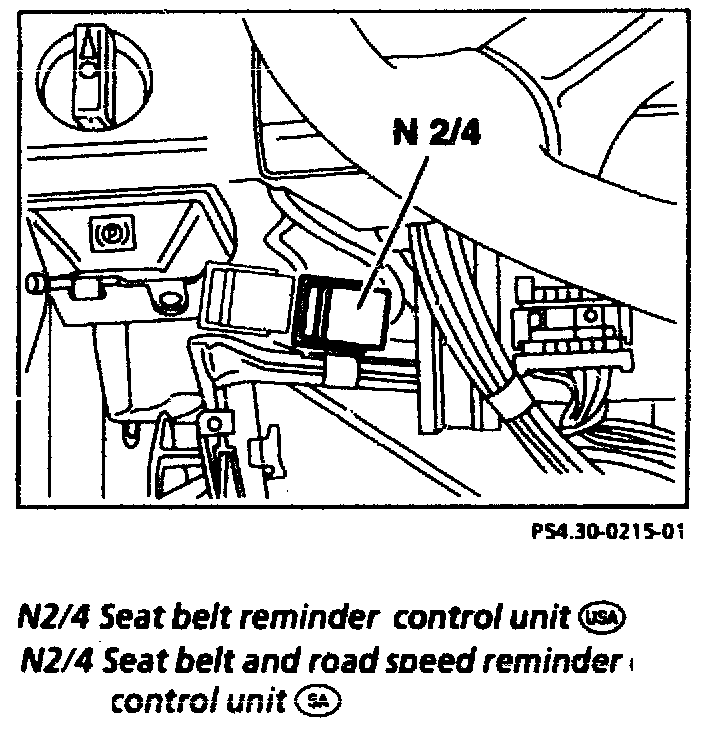

Component Identification:

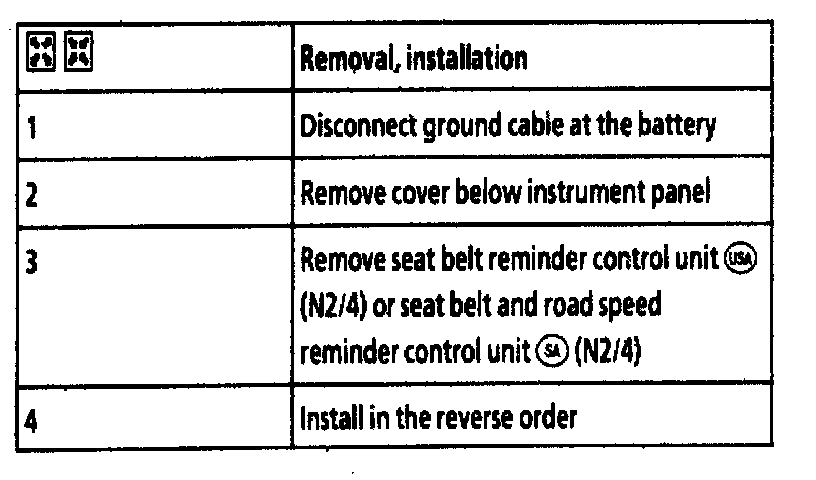

Removal/Installation, Steps 1 - 4:
