Disassembling Instrument Cluster Housing
Disassembling Instrument Cluster Housing
Models 202, 210:

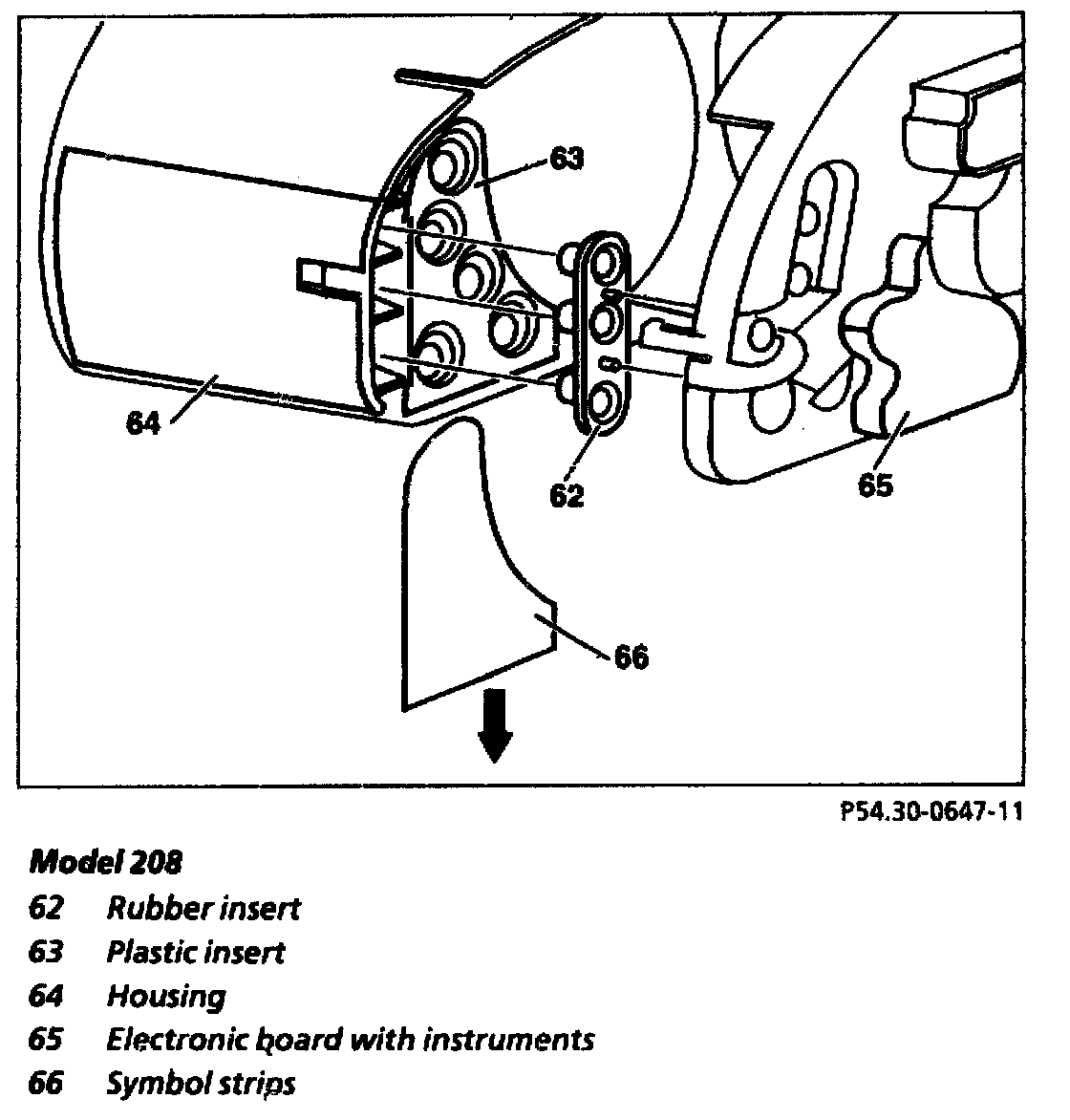

Model 208:

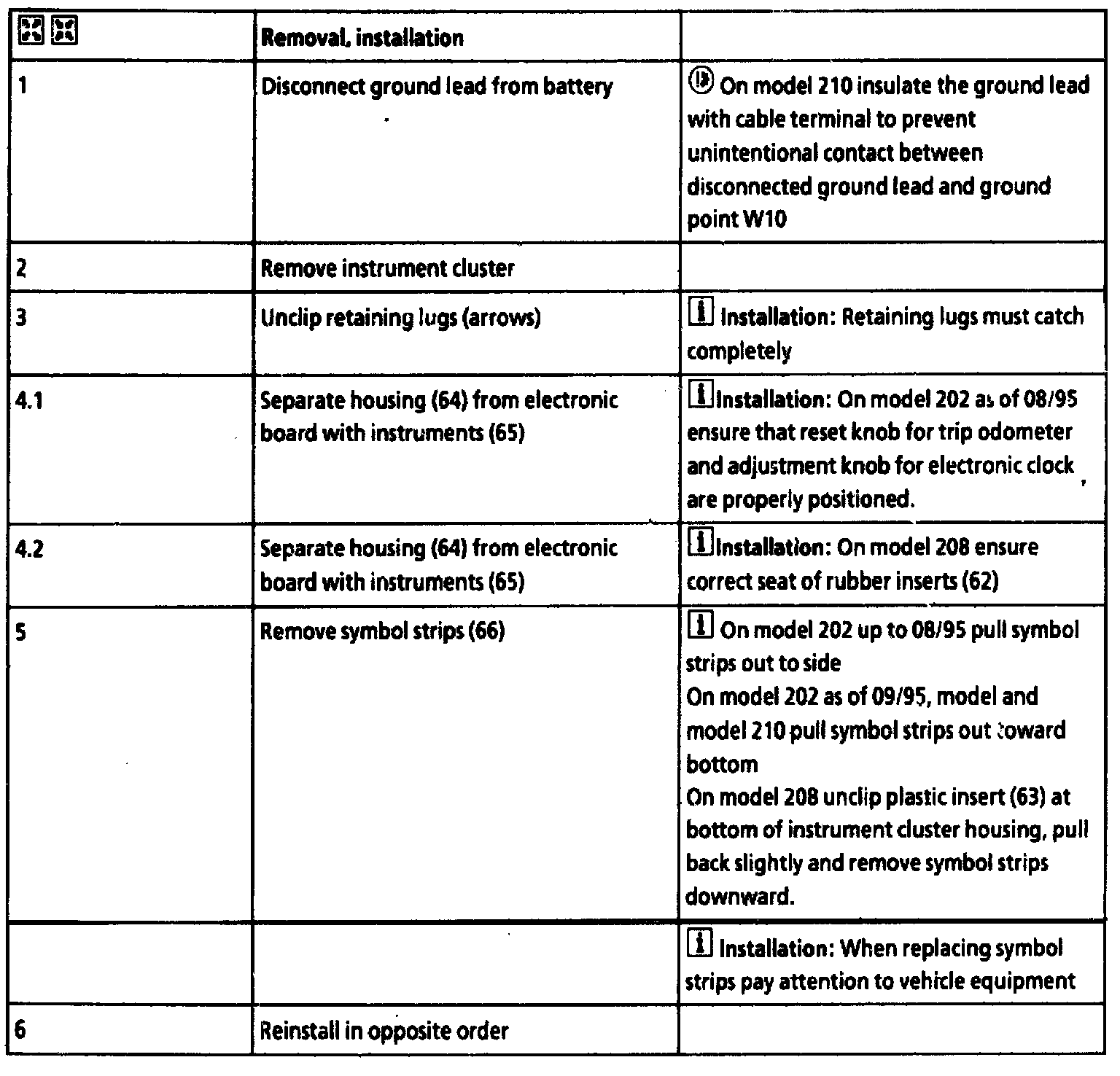

Removal/Installation, Steps 1 - 6:
