Daytime Dipped Headlight PE82.10-U-2100WC

Daytime Dipped Headlight PE82.10-U-2100WC

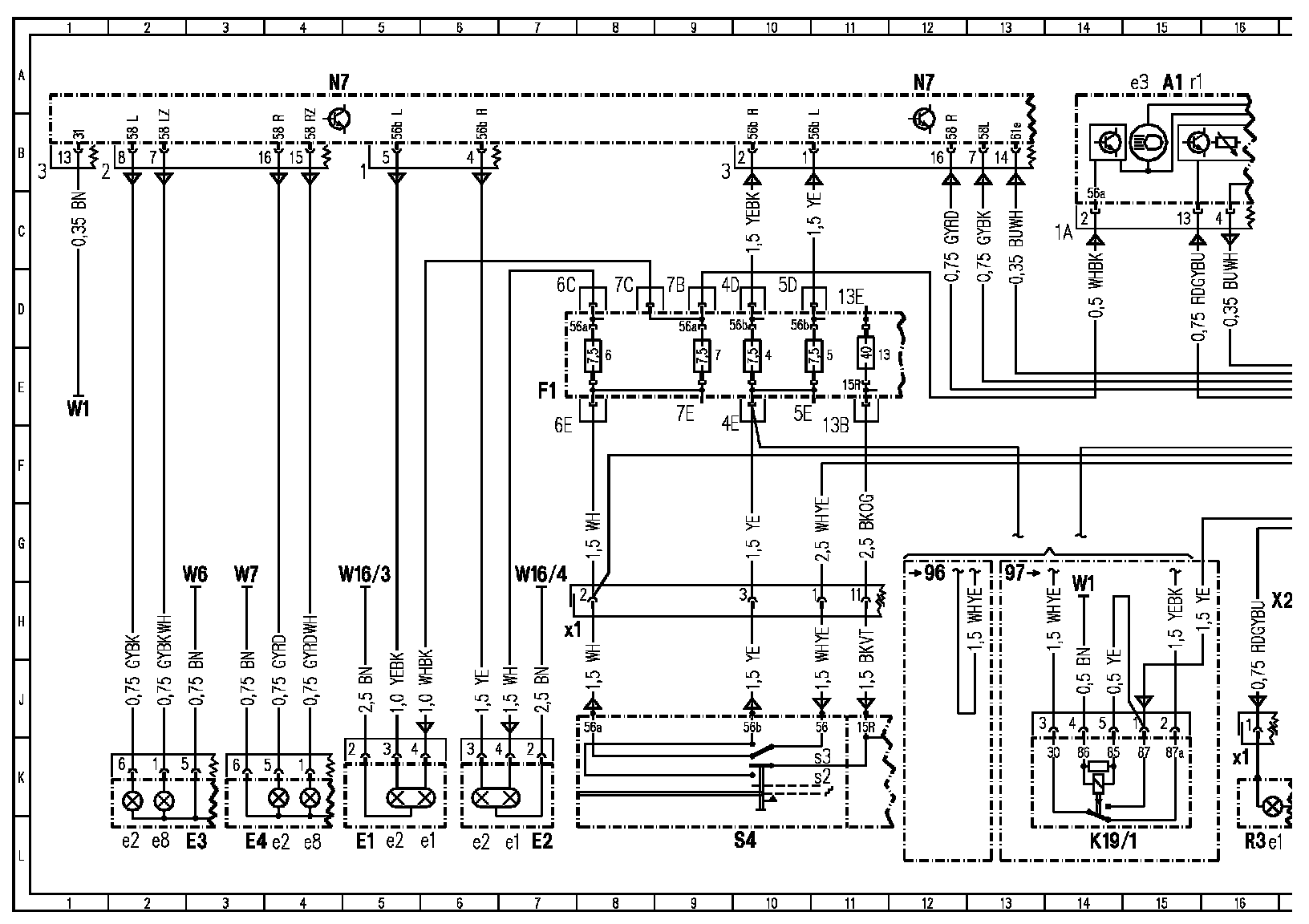

Wiring Diagram, Part 1:

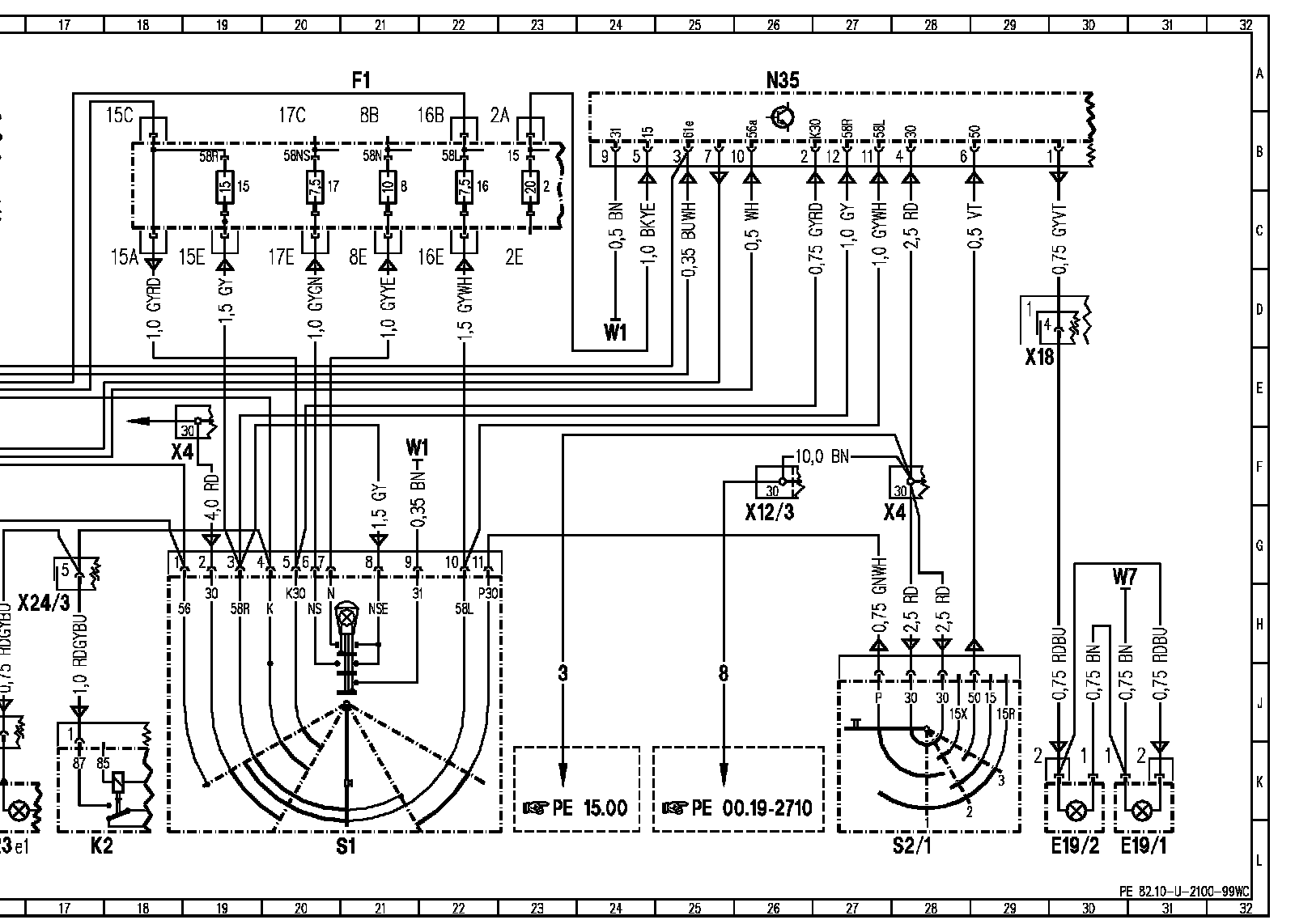

Wiring Diagram, Part 2:

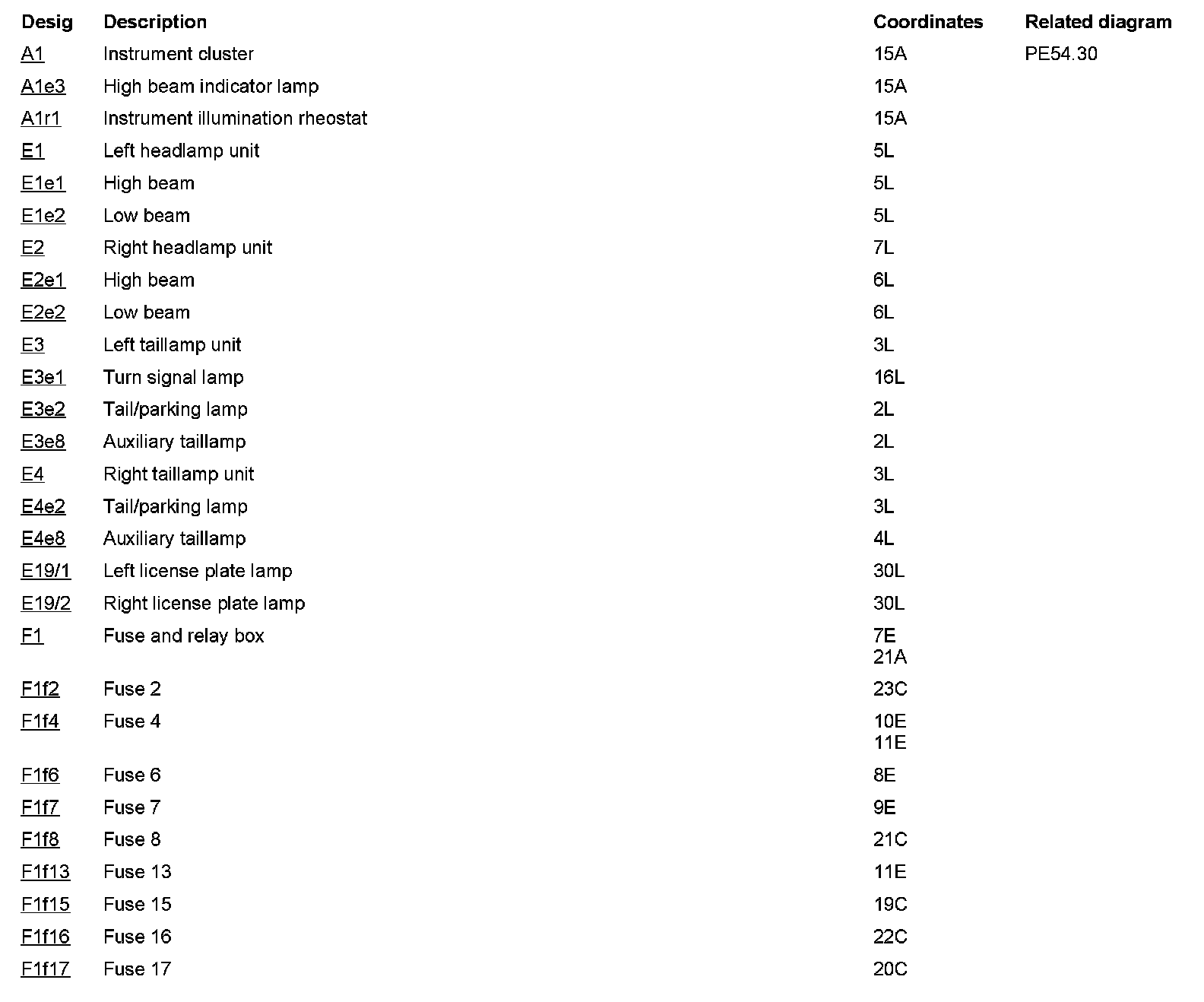

Component Description/Coordinates, A1 To F1f17:

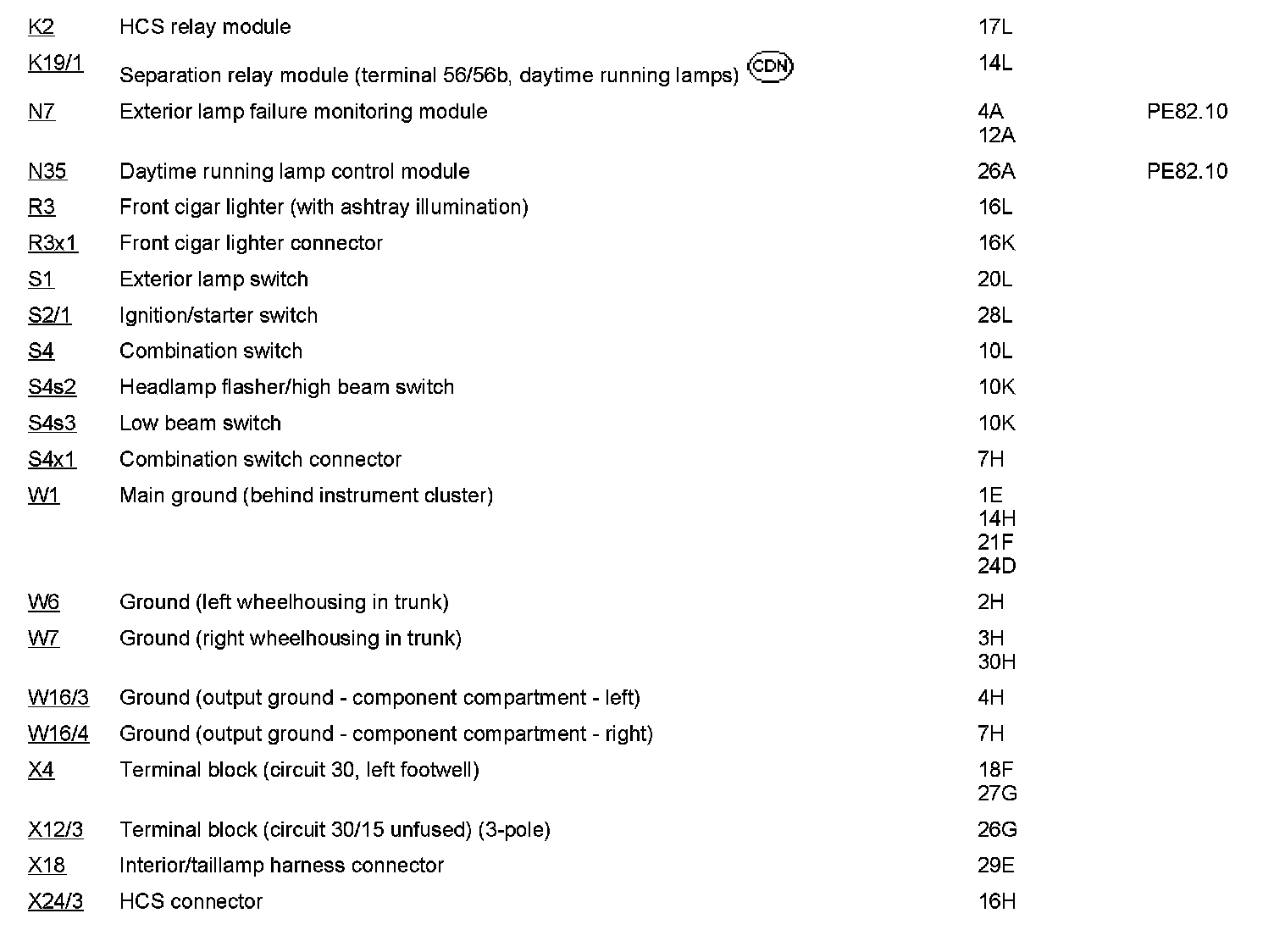

Component Description/Coordinates, K2 To X24/3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
