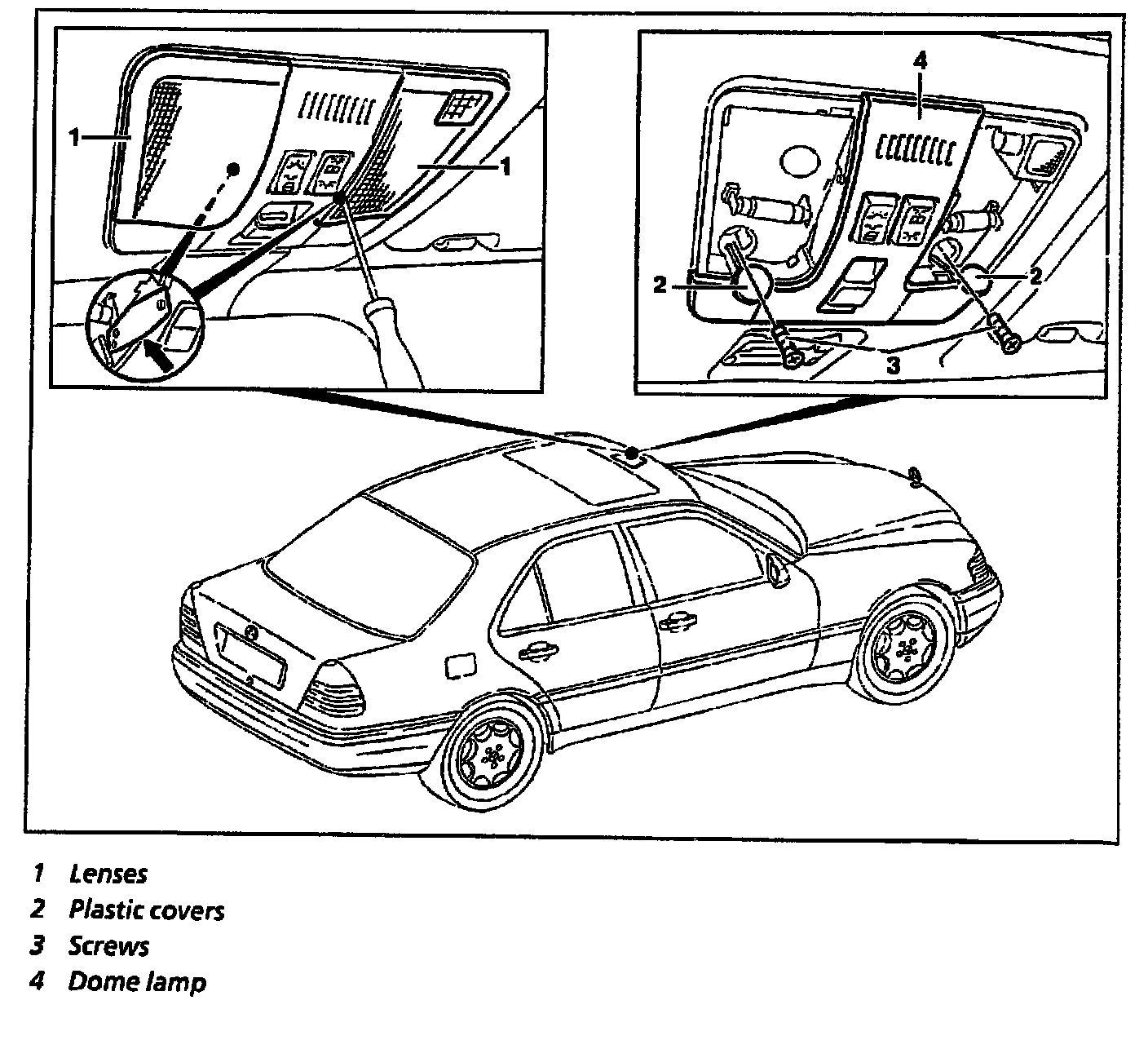

Dome Lamp: Service and Repair

Removal, Installation
1. Lever off lenses (1). Pay attention to mechanism for levering out parts between dome lamp lenses.
2. Lever off plastic covers (2).
3. Remove screws (3).
4. Lever off front dome lamp (4).
5. Unplug connectors at dome lamp (4).
6. Install in reverse order.
