Circuit 15 Wiring PE00.19-U-2720WA
Circuit 15 Wiring PE00.19-U-2720WA

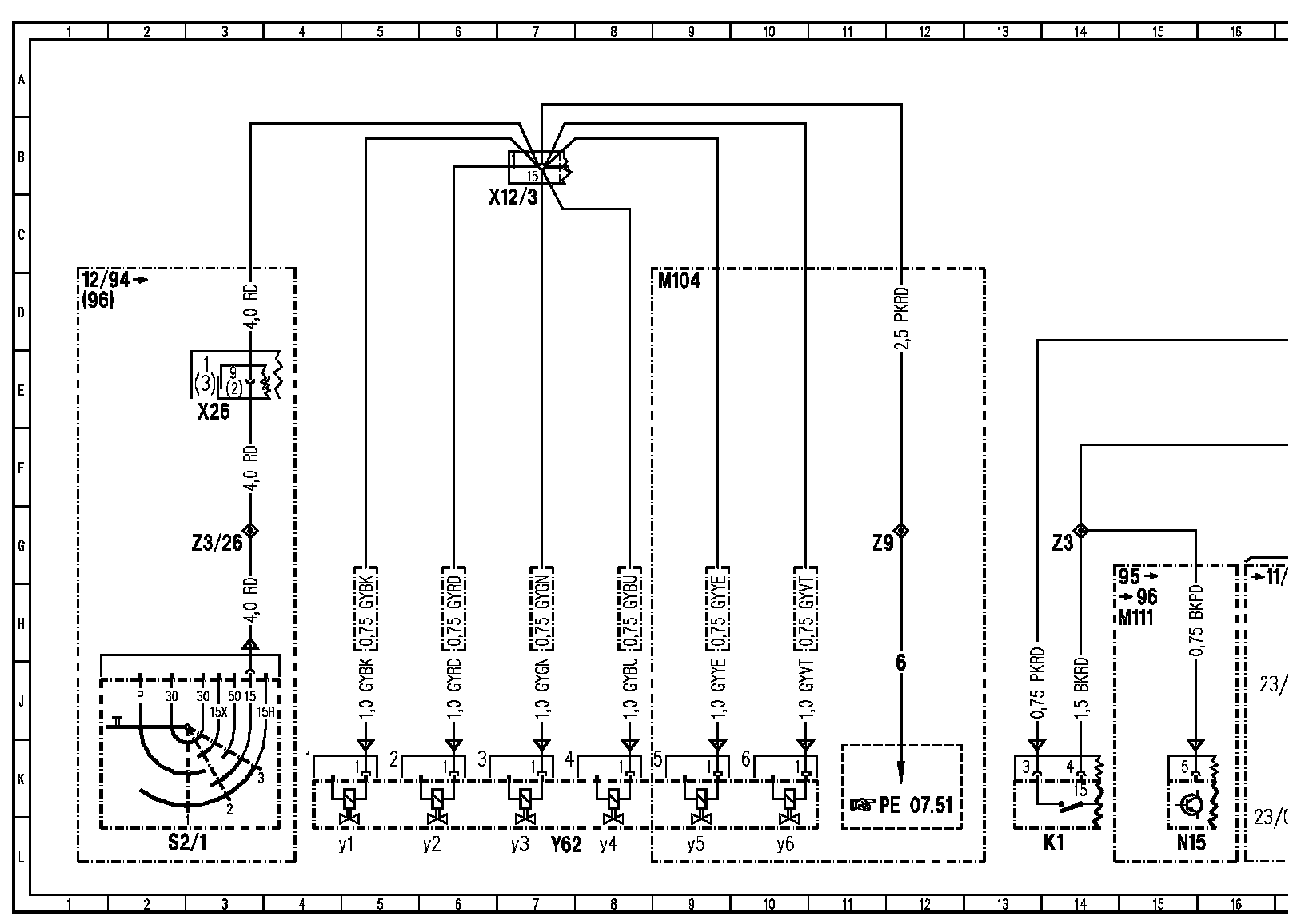

Wiring Diagram, Part 1:

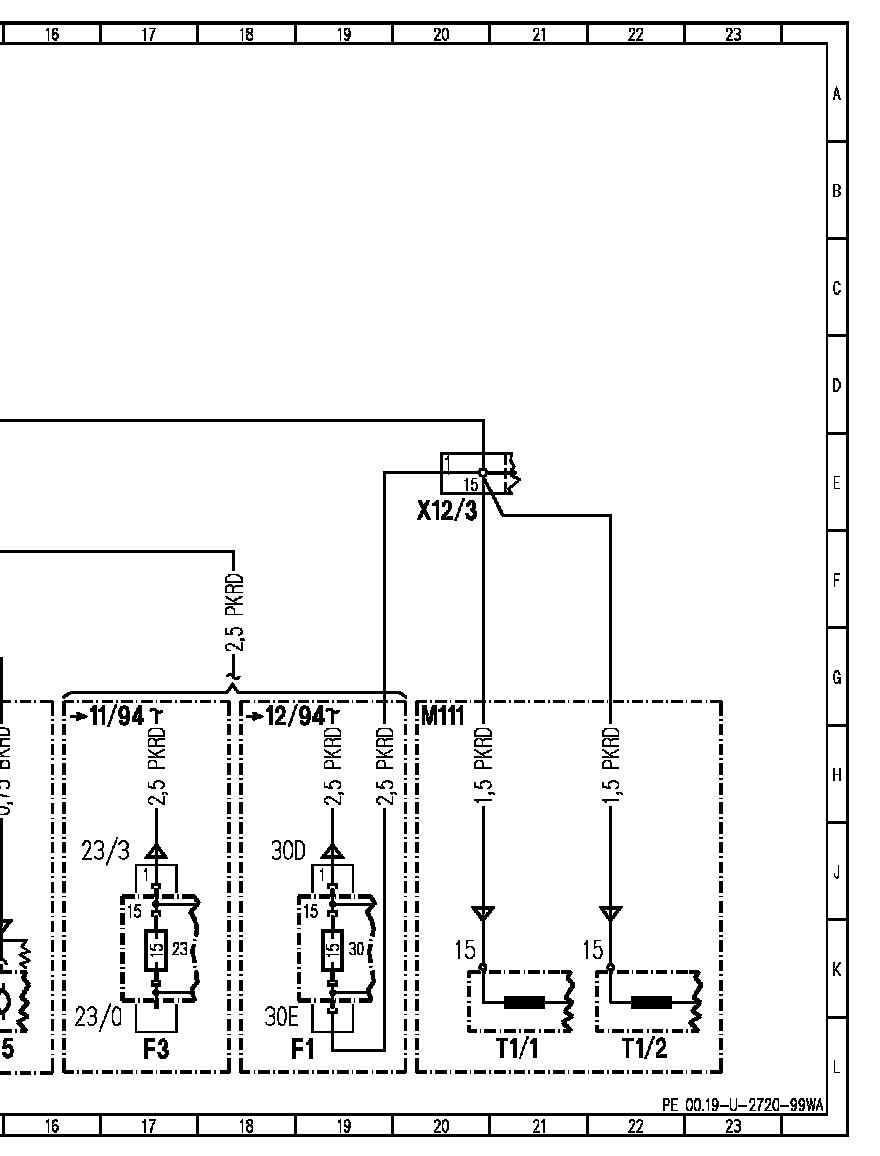

Wiring Diagram, Part 2:
Component Description/Coordinates, F1 To Z9:
Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
