Installing Modified Fuel Pump

References (BA), Fuel pump







1 Install injection pump, fit on pump holder only.

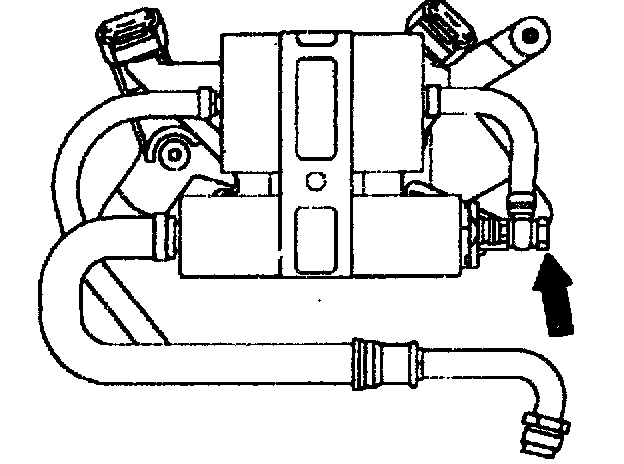

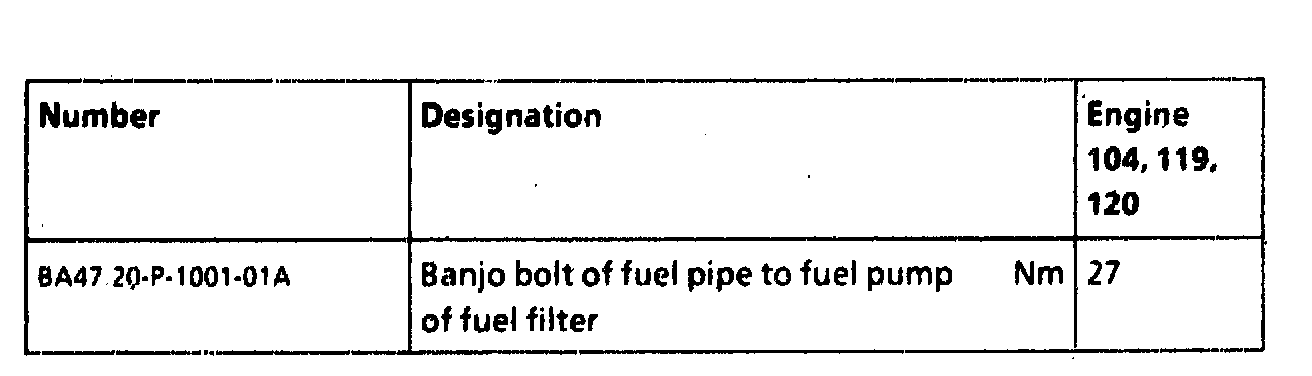

2 Tighten banjo bolt (arrow).
3 Tighten pump holder.


NOTE: Routing of electric cable as for previous fuel pump.

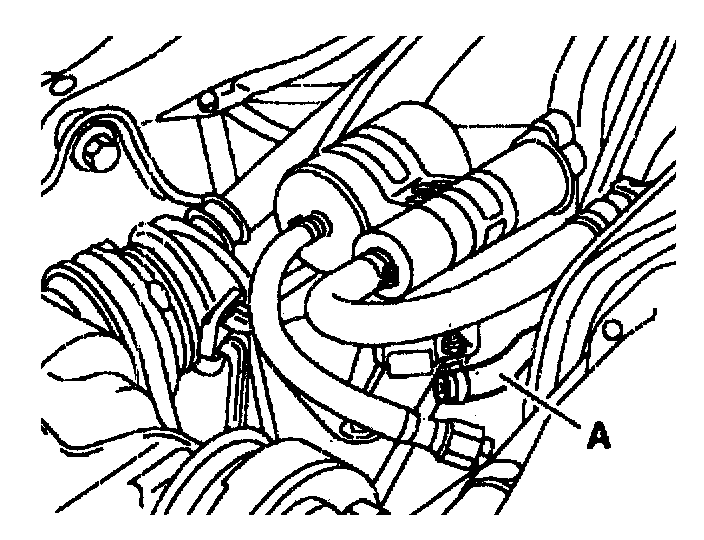

4 Detach vent pipe (A) from fuel tank and shorten to 43 mm.

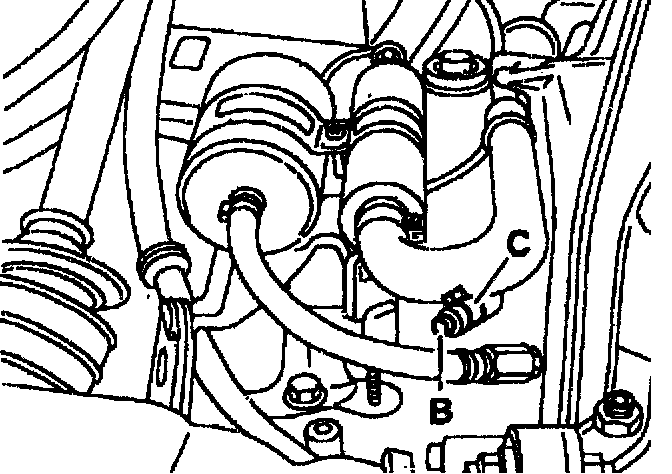

5 Seal vent pipe (A) with plug (included in parts supply) and secure with phi 13.5 mm hose clamp or hose clamp (C) (parts supplied).

NOTE: Use hose clamp (C) only with suitable pliers, make Caillau.

6 Attach vent pipe (A) with standard clamp to fuel tank.
