Compressor HVAC



BA83.55-P-1000-01A Refrigerant Compressor

Modification notes


Modification Notes:

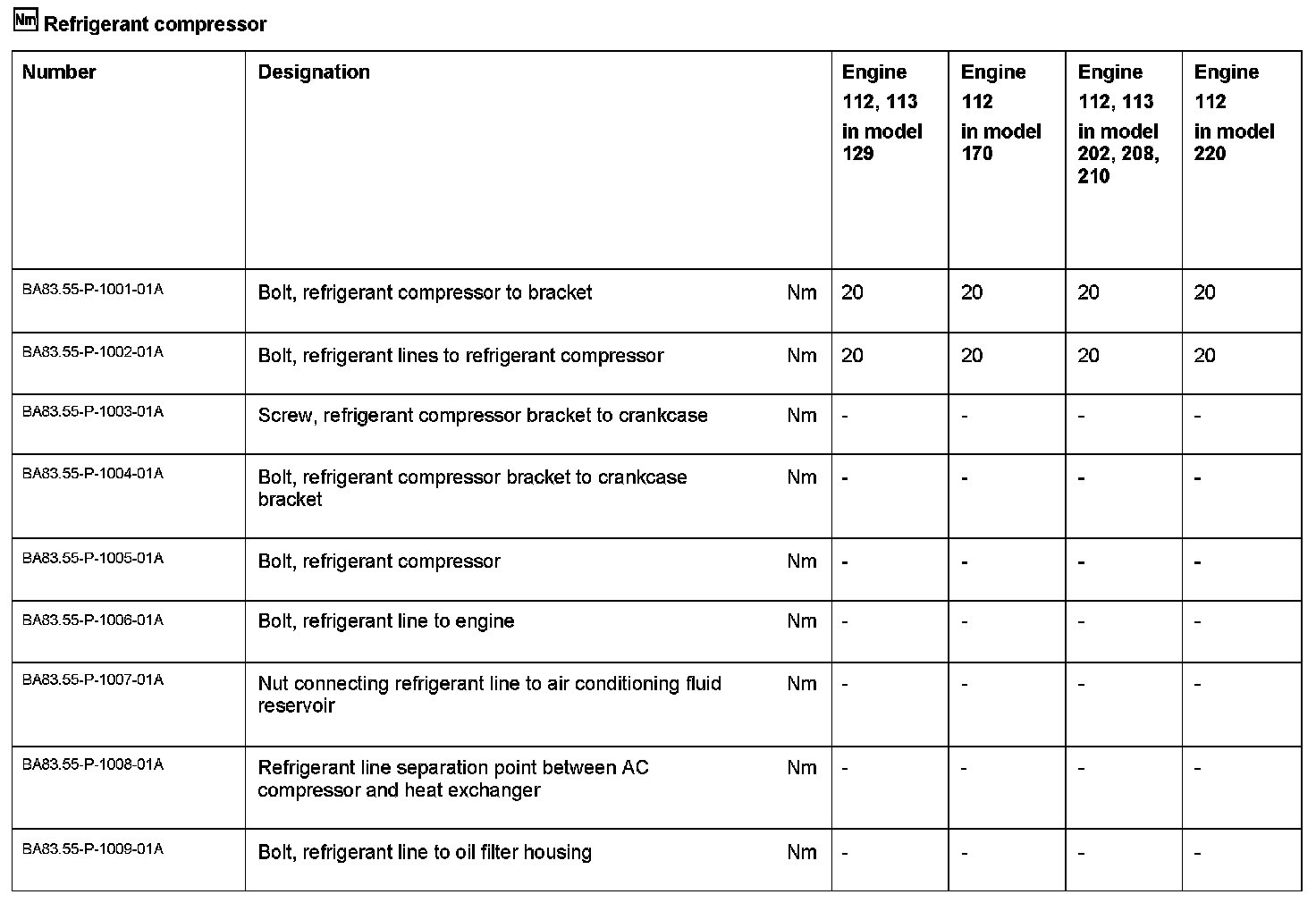

Refrigerant compressor

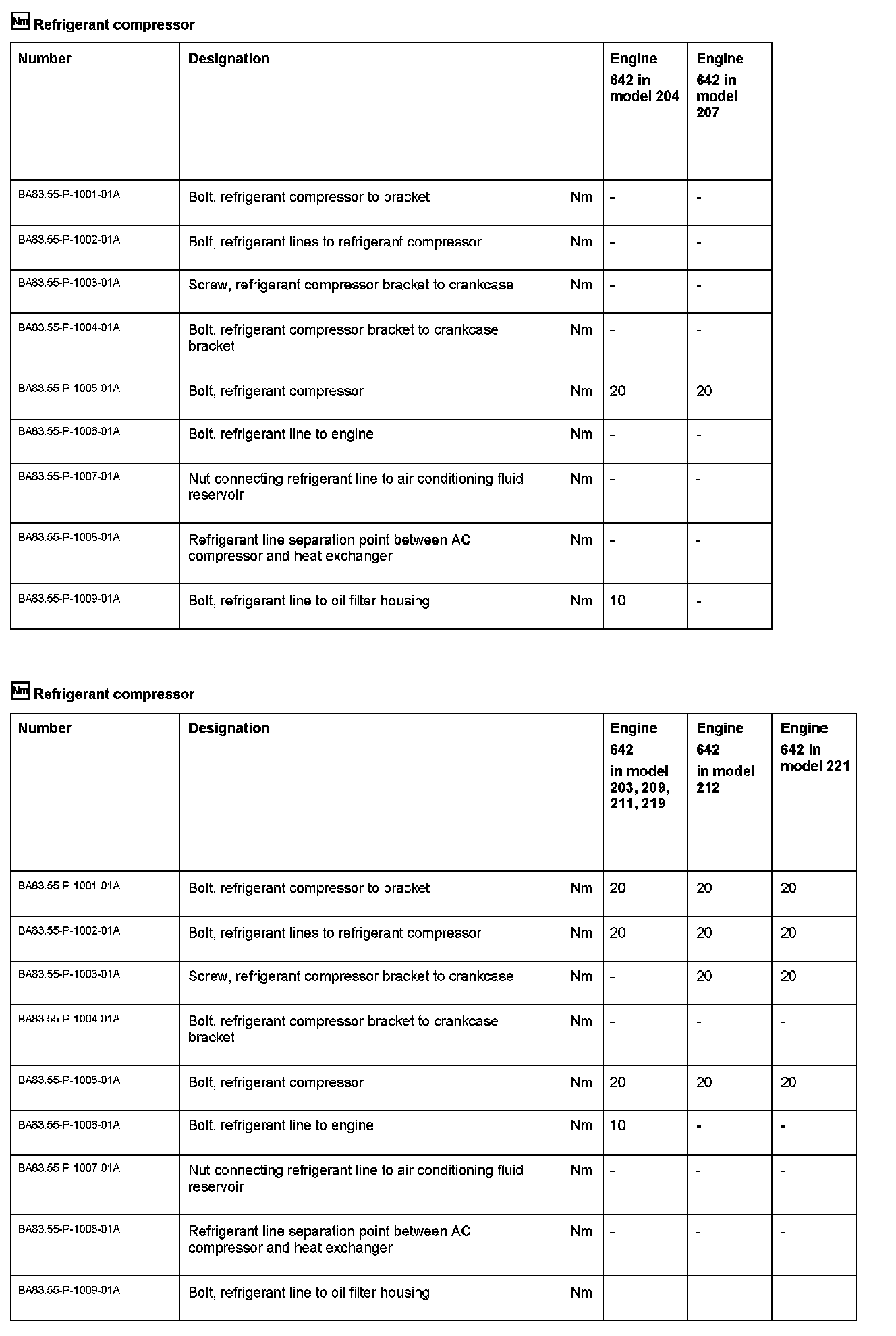

Refrigerant Compressor:





Refrigerant Compressor:





Refrigerant Compressor:





Refrigerant Compressor:





Refrigerant Compressor:
