Alternator: Service and Repair




Illustrated On Model 104:

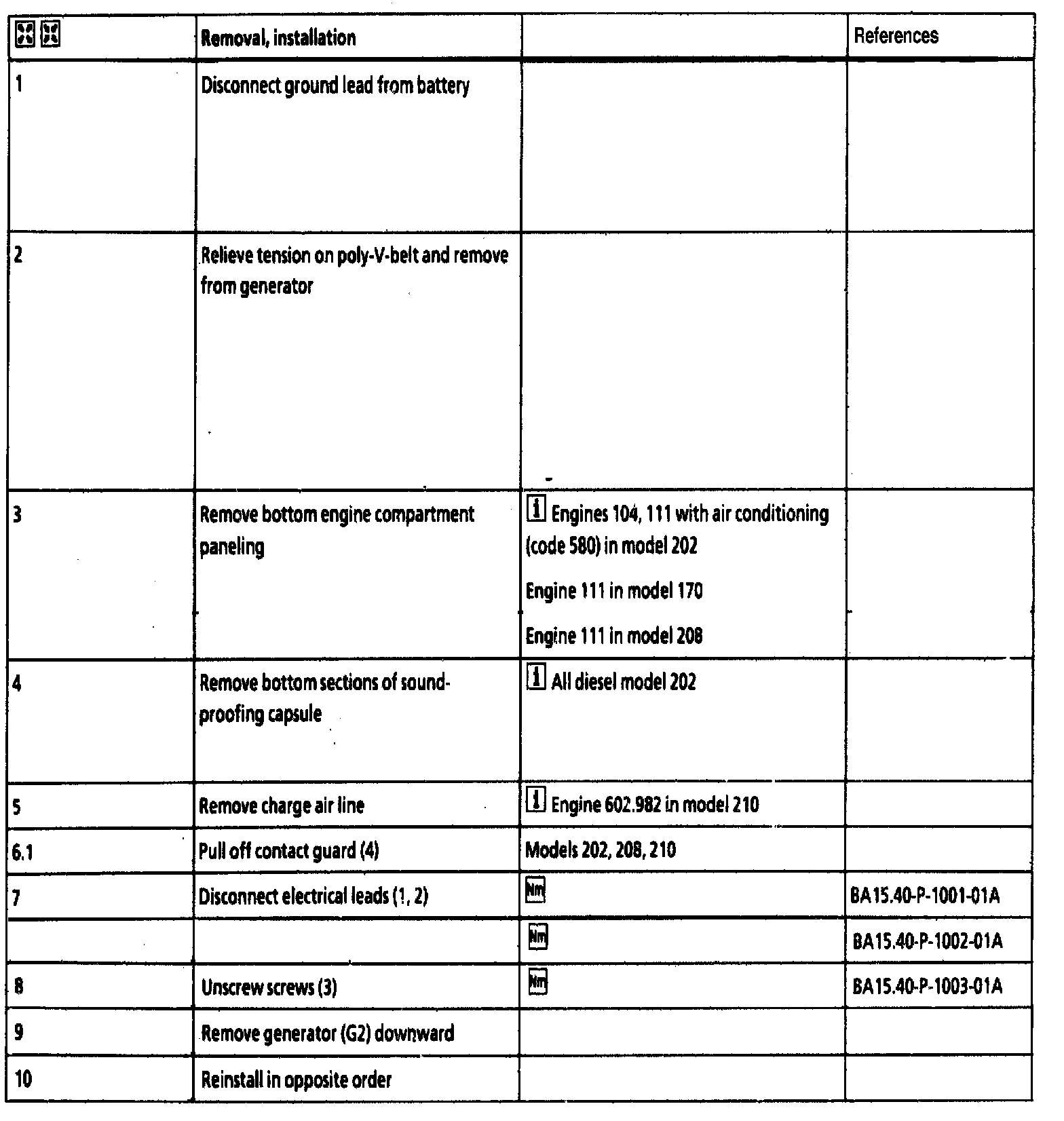

Removal/Installation, Steps 1 - 10:

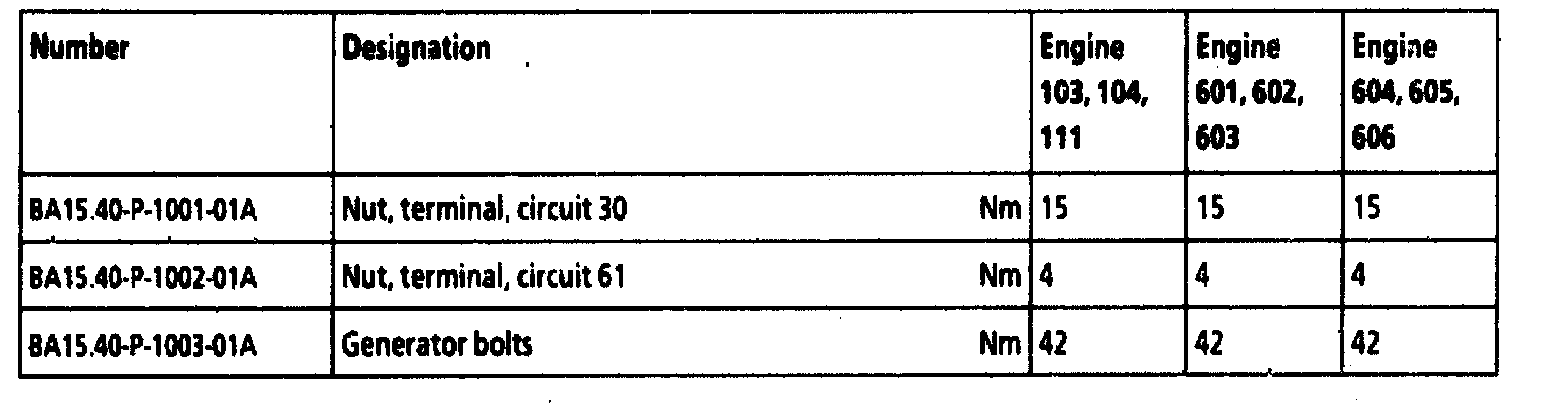

References (BA), Generator:
