Removal and Replacement

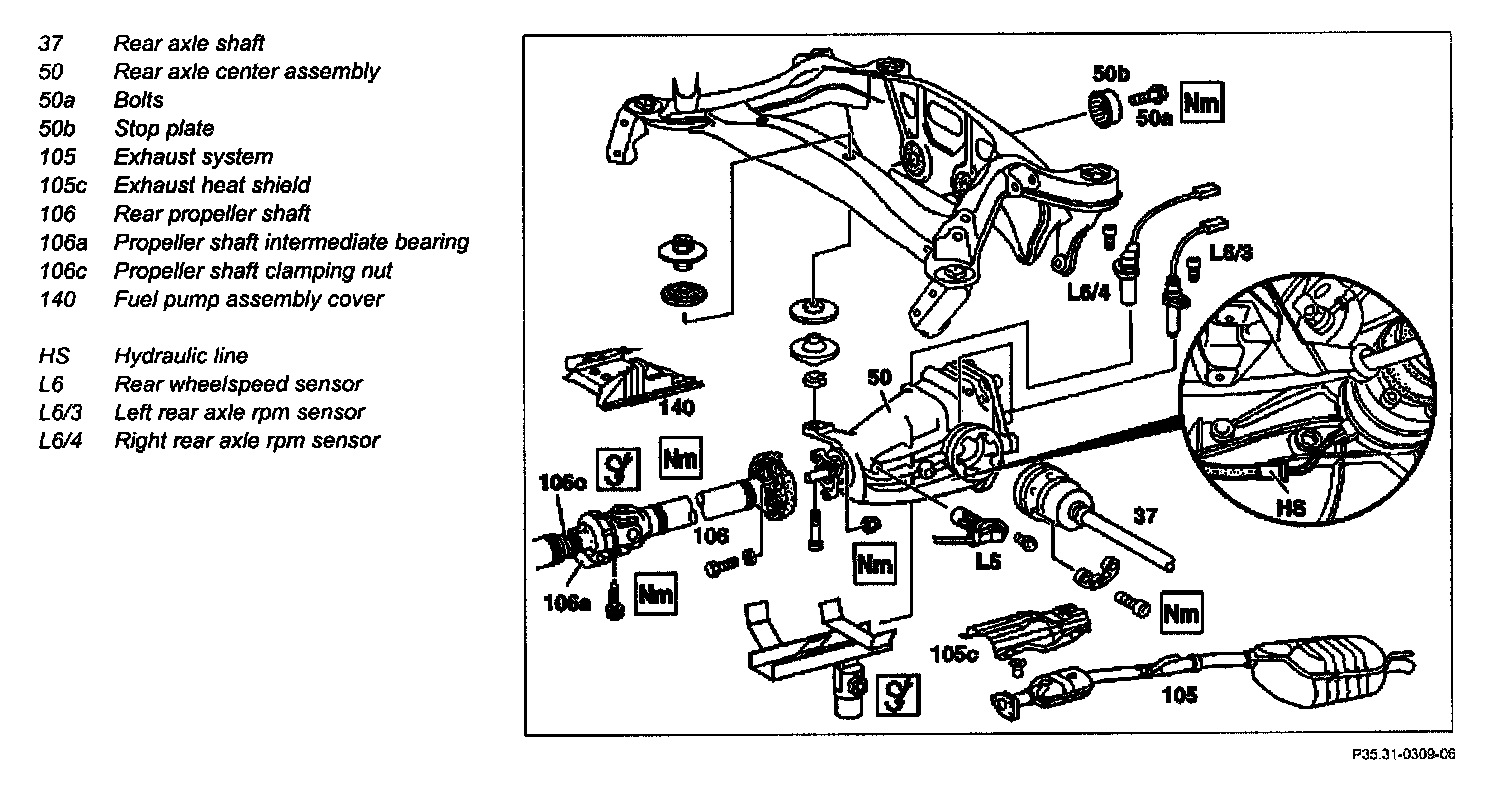

Removing and installing rear axle center assemblyRear axle center assembly dia. 188 in MODELS 170, 202
Rear axle center assembly dia. 185 in MODEL 170, 202, 208
Rear axle center assembly dia. 198 in MODEL 170, 202, 208
Rear axle center assembly dia. 210 in MODEL 208
Rear axle center assembly 210E
Removing

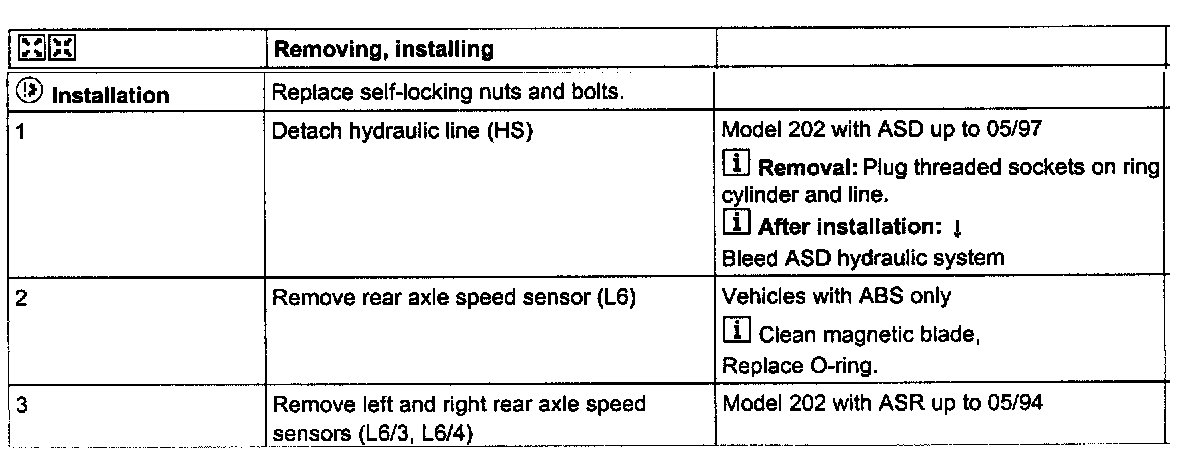

Removal & Installation Steps 1-3:
Removal & Installation Steps 4 - 16:
Removal & Installation Step 17:

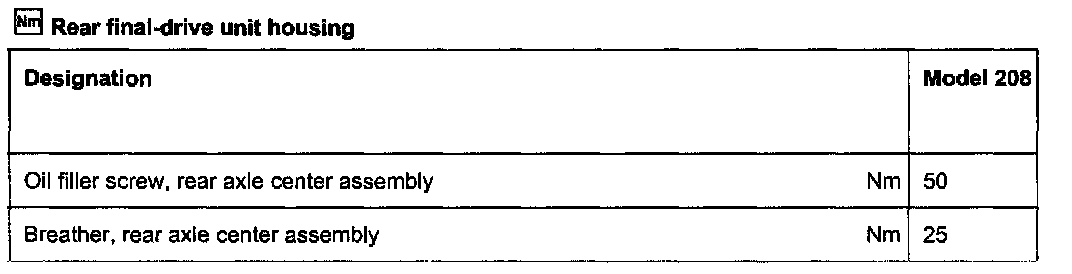

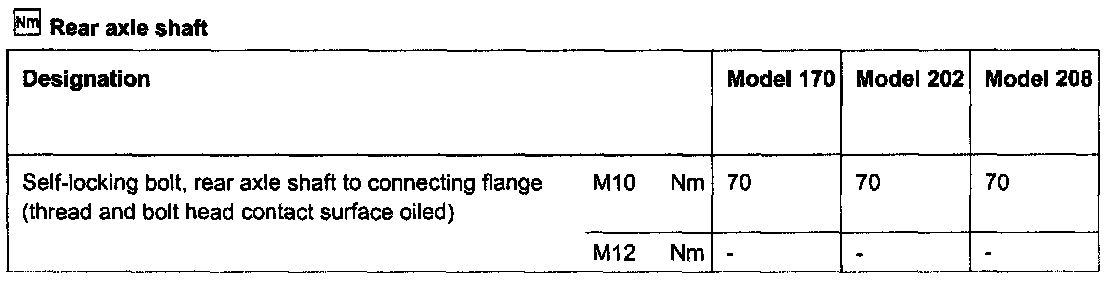

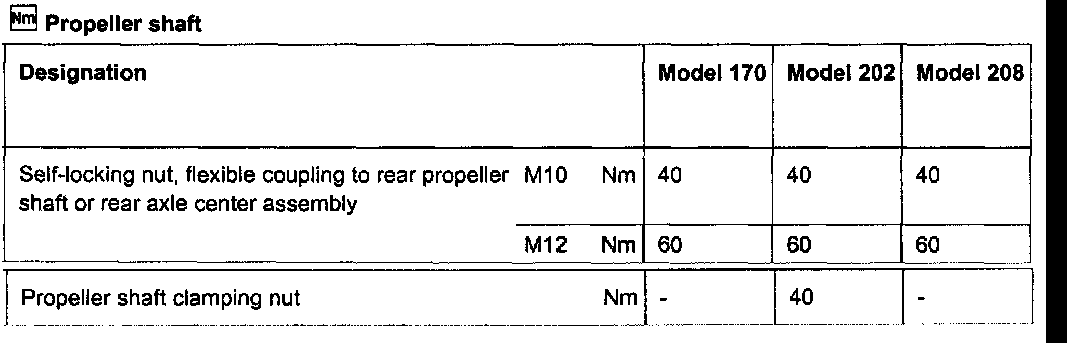

Torque Specifications

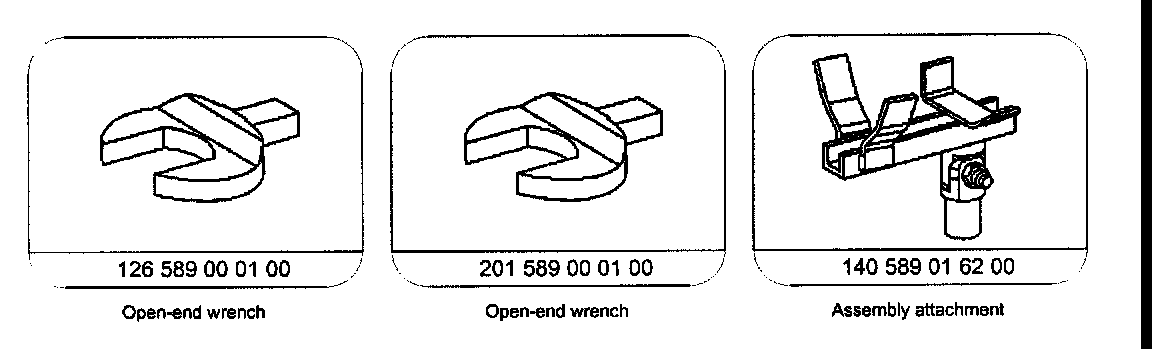

Special Tools
