Collision Avoidance and Parking Assist Systems
Parktronic System

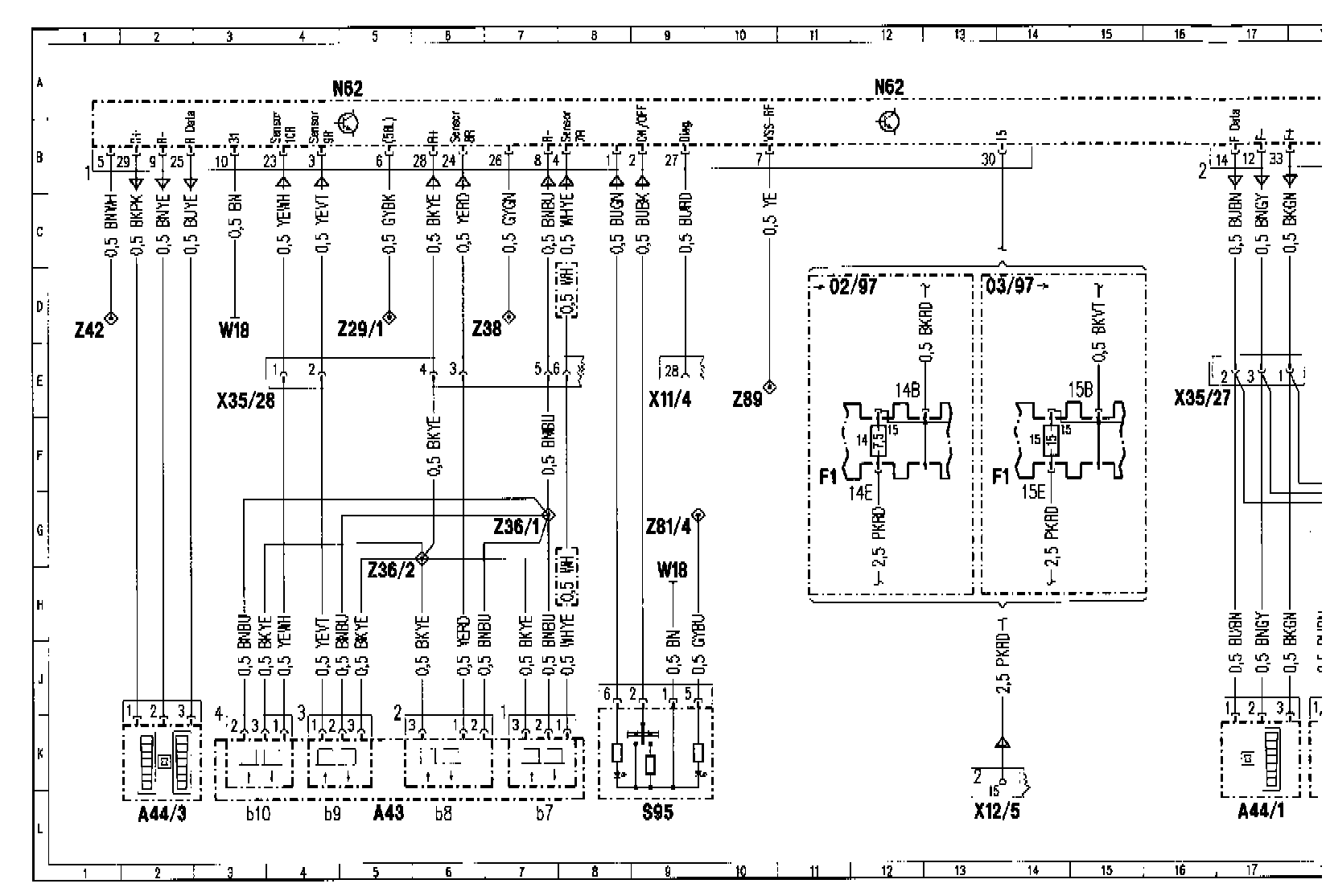

?=><Wiring Diagram:
Component Grid Location

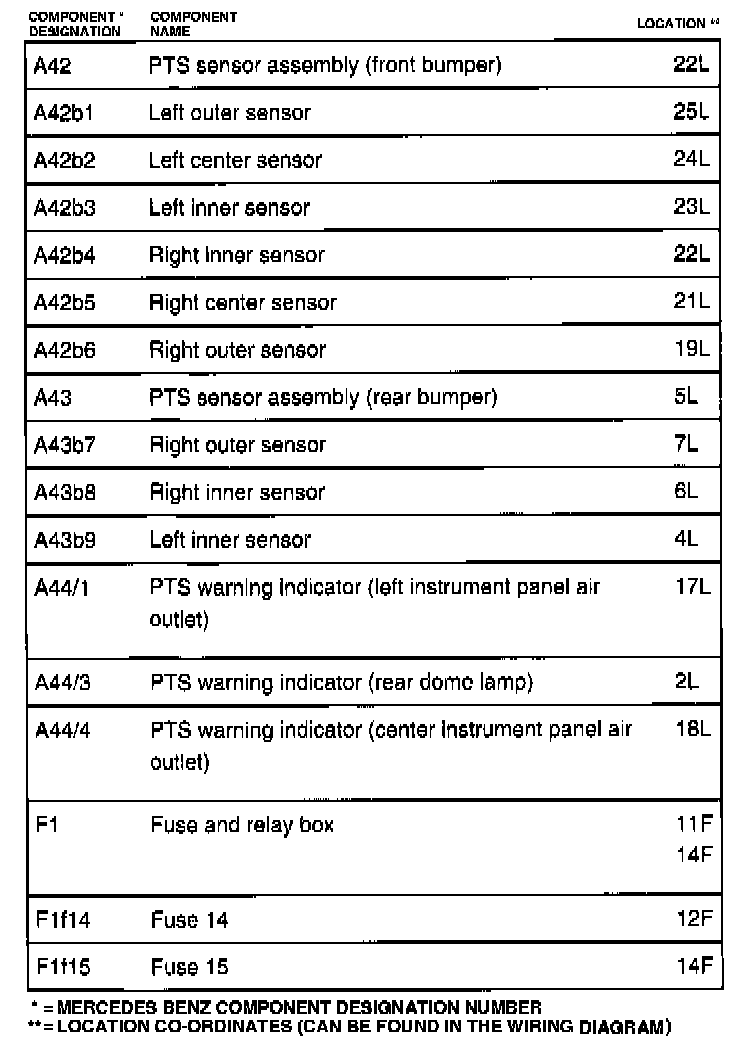

A42 - F1f15:

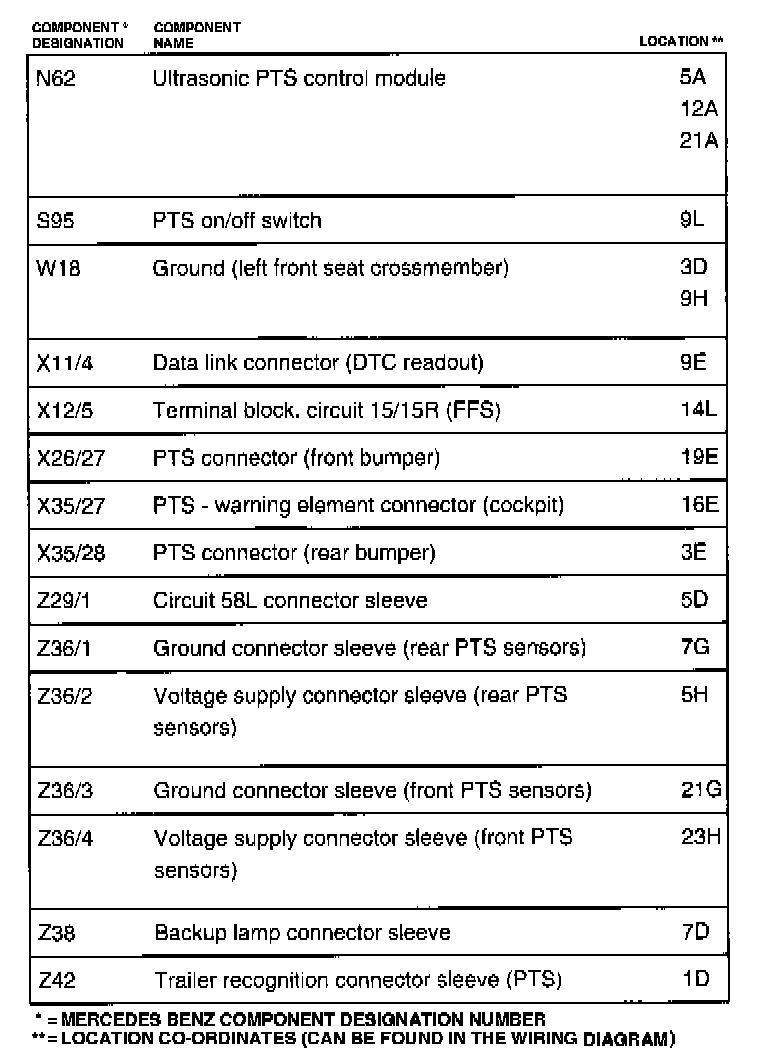

N62 - Z42:
Z81 - Z89:
