Auto Dimming Inside Rear View Mirror PE68.49-2000B, From 6/1/96
Auto Dimming Inside Rear View Mirror PE68.49-2000B, From 6/1/96
W/ Automatic Dimming Driver Side Outside Rear View Mirror

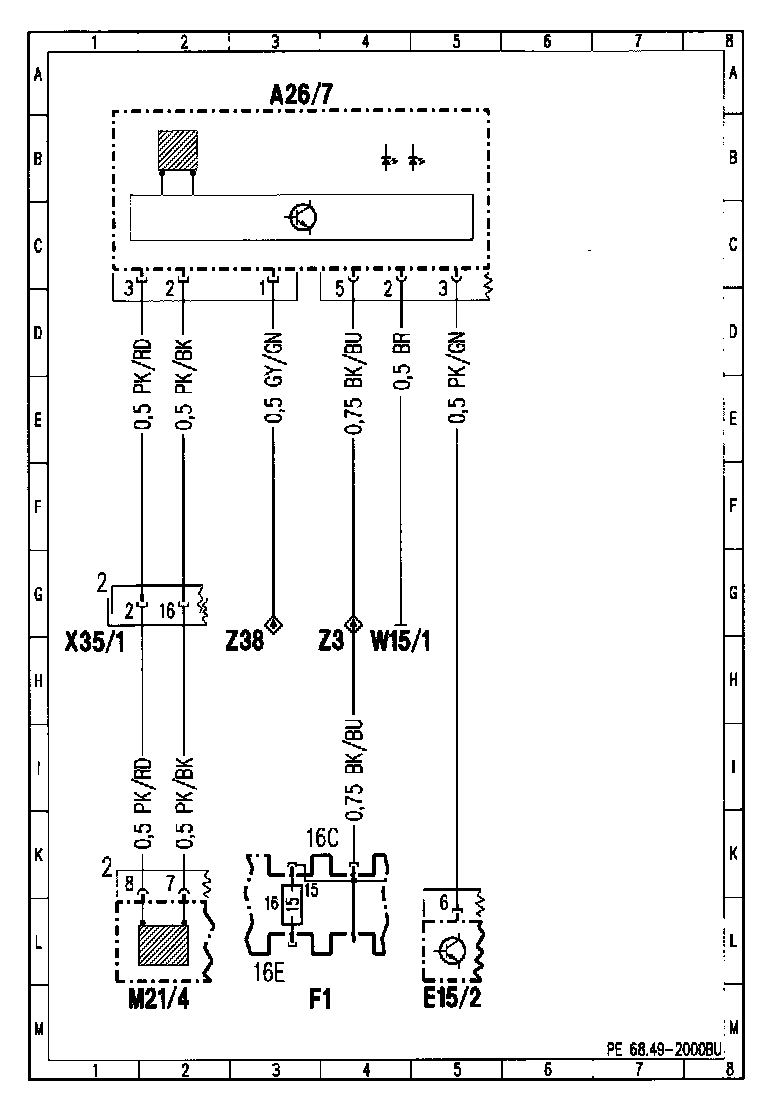

Wiring Diagram:
Component Grid Location (A26/7 - Z38):
