B3.3 Interior Compartment (Cockpit)

Connector Sleeves (Wire/Plug Connections In Harness - Z Solder Splices)

Connector Sleeve ID/Description & Pin ID

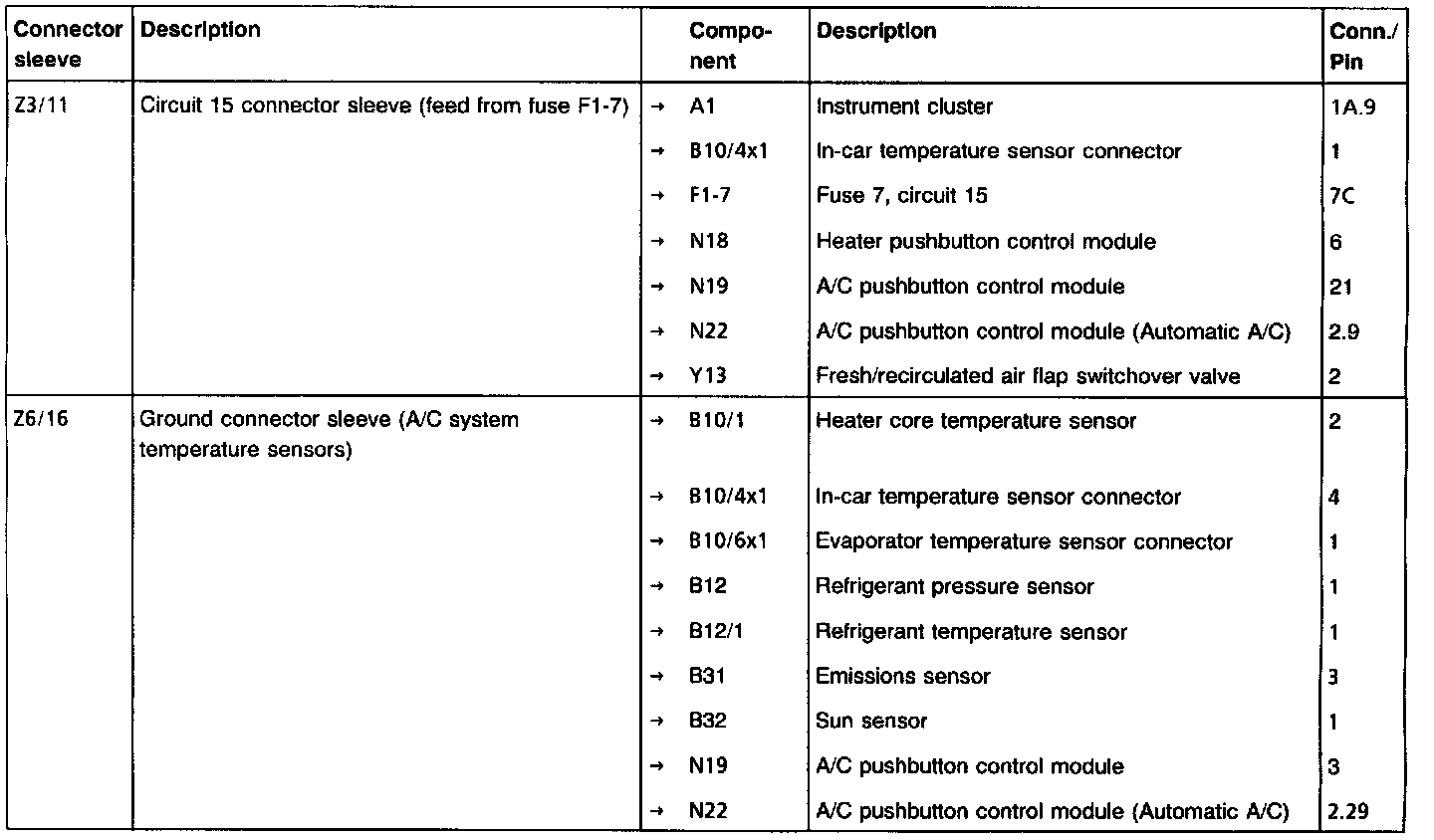

Z3/11 & Z6/16:

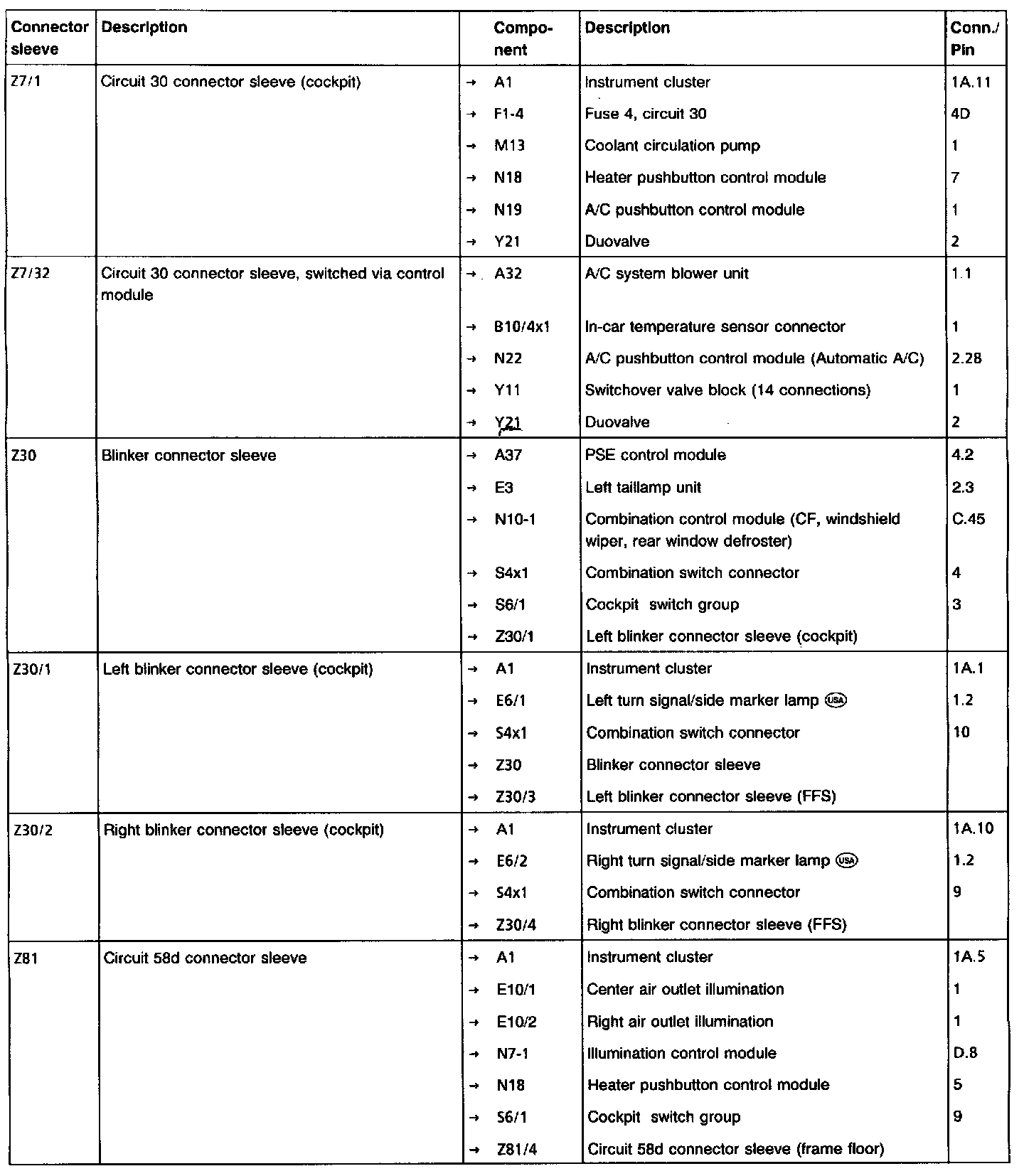

Z7/1 - Z8/1:
