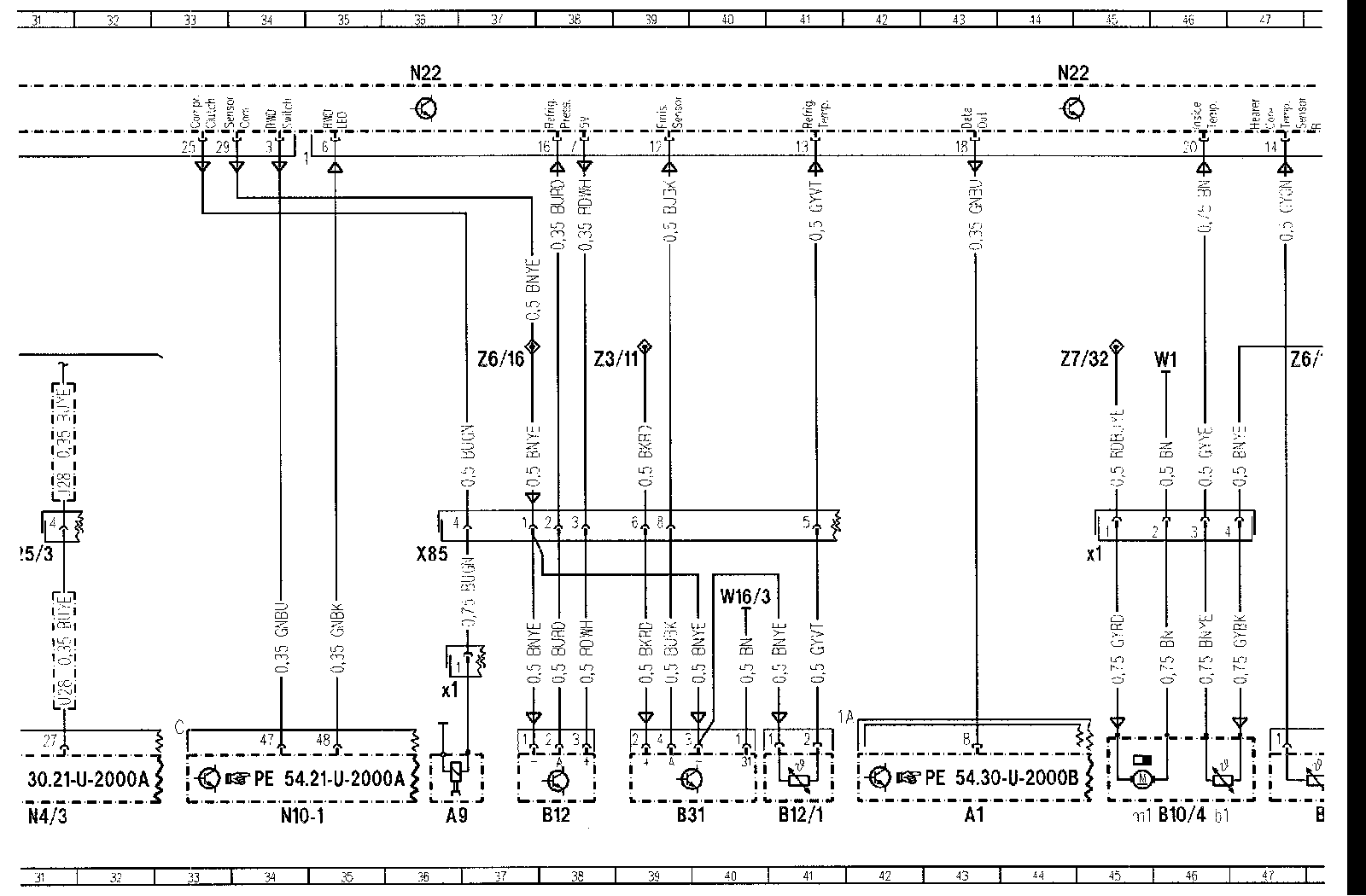

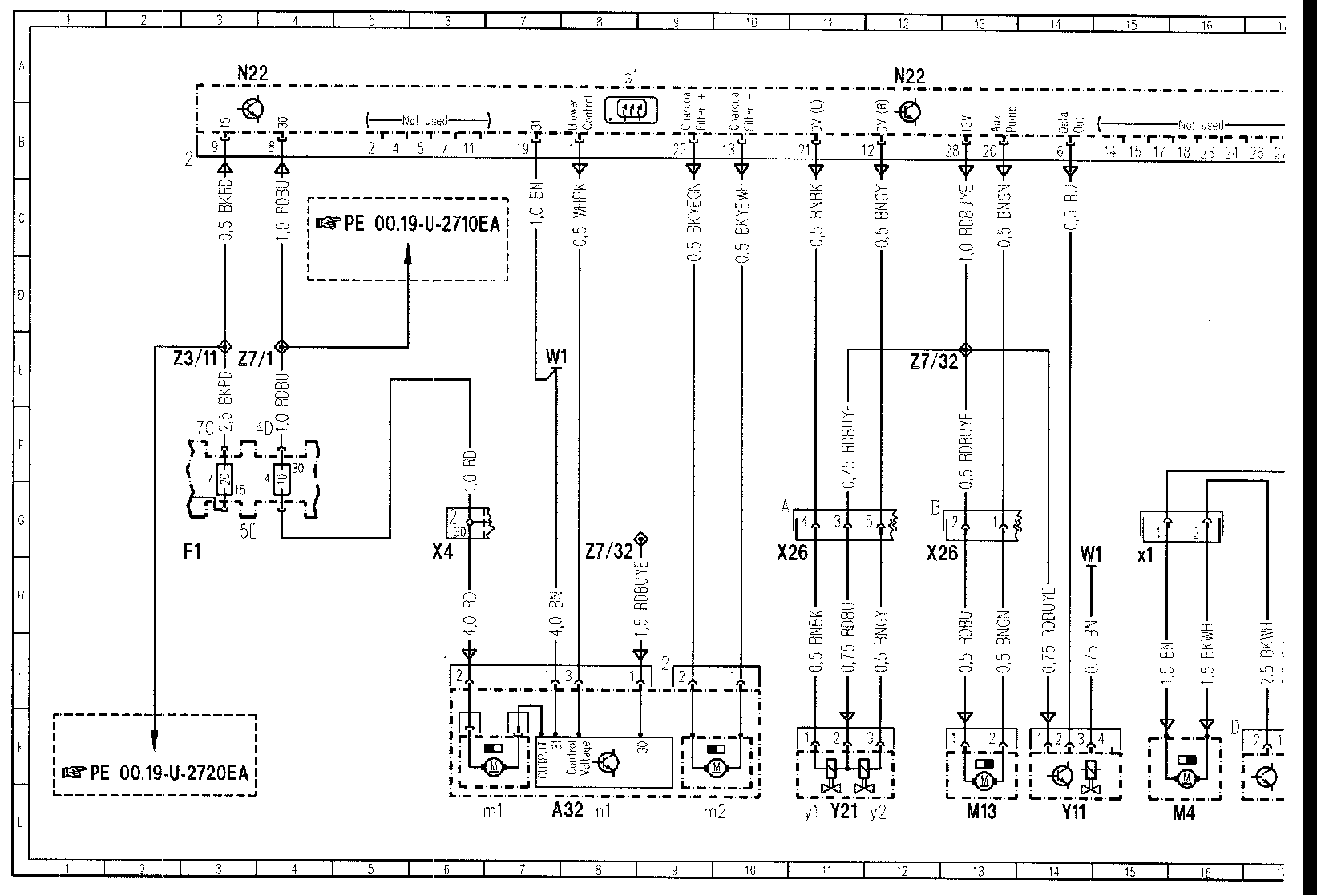

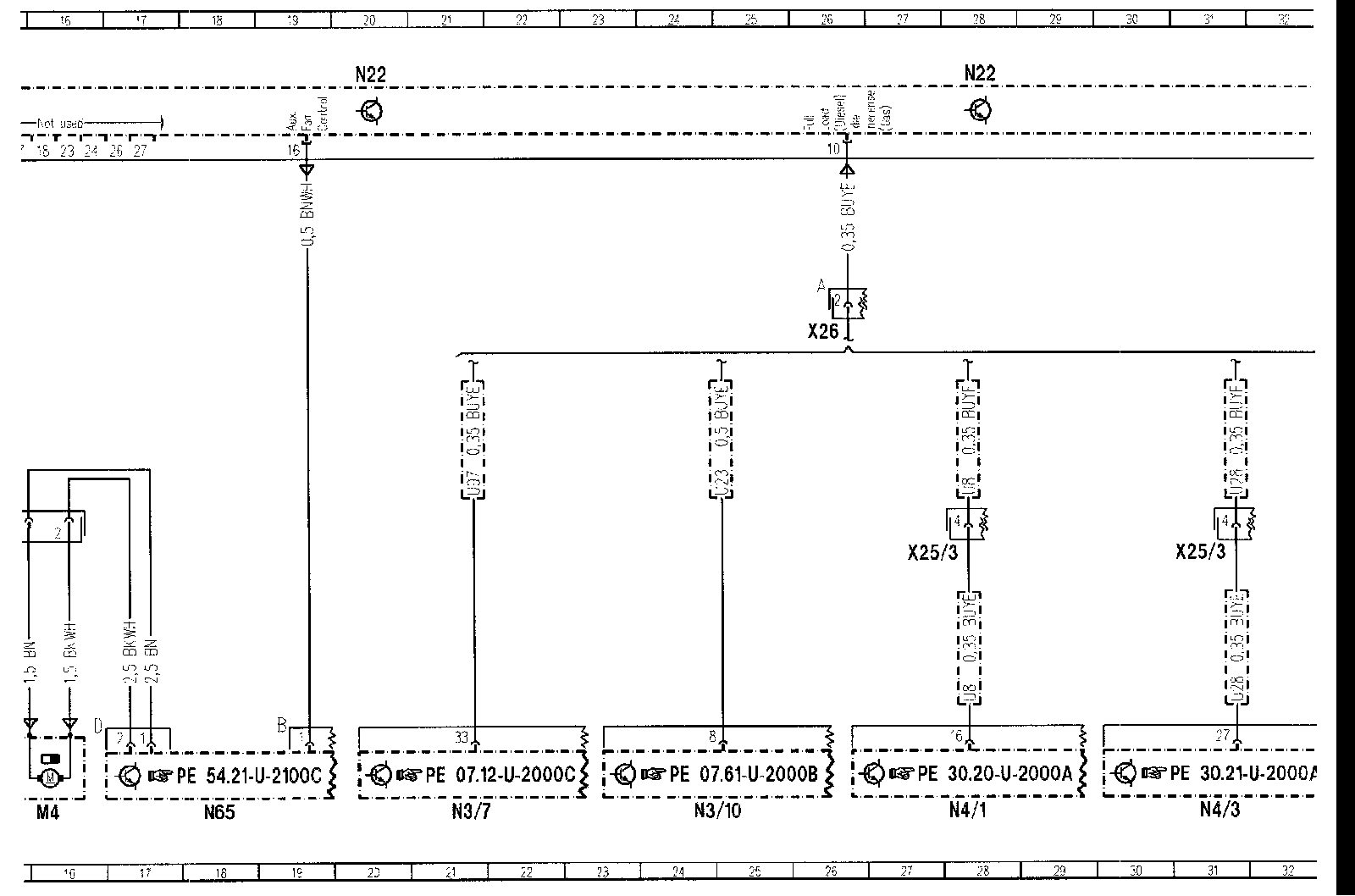

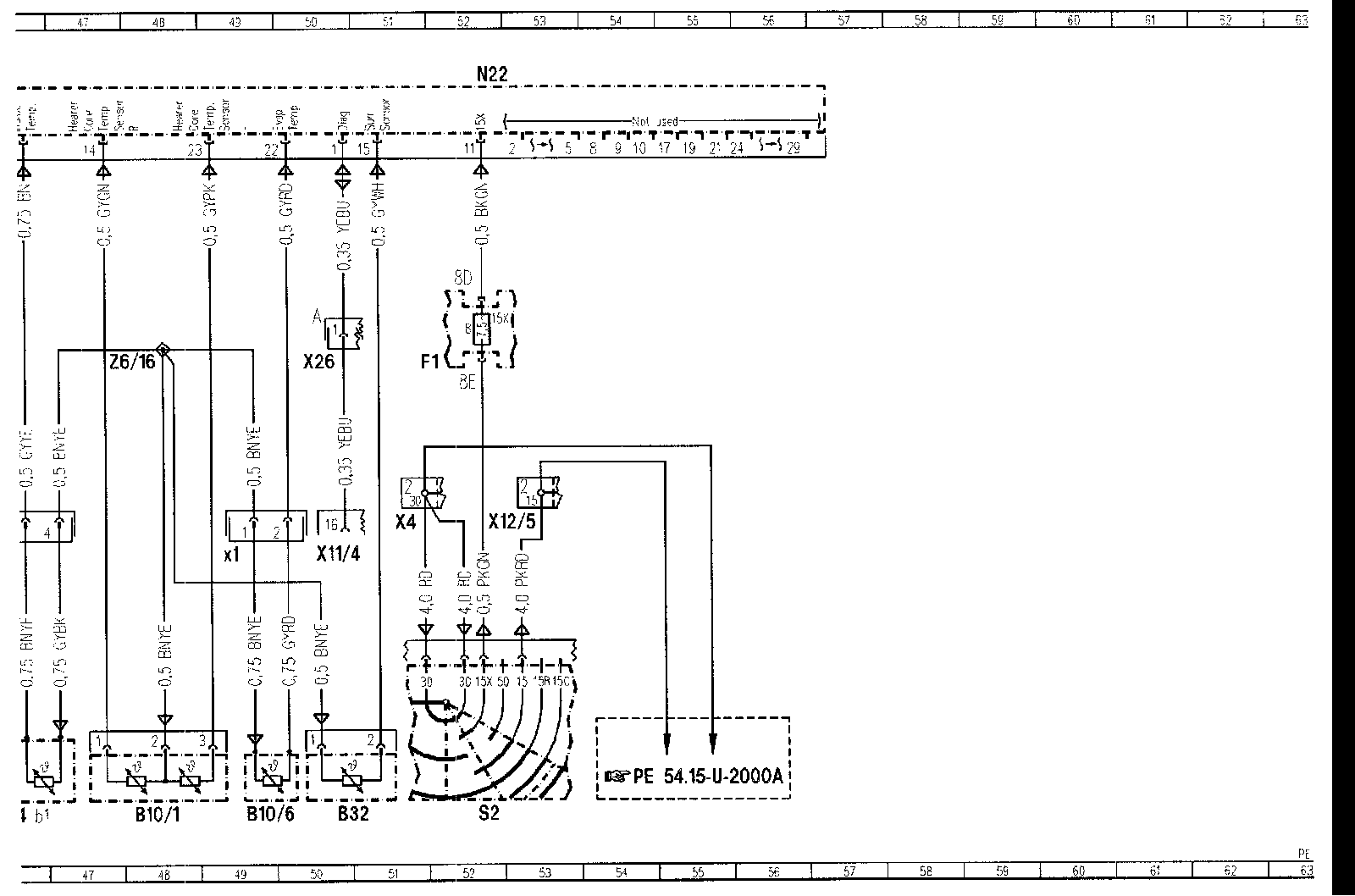

Automatic Air Conditioning (AAC) PE83.40-U-2000A



83.40-U-2000A Model 210 up to 05/31/96 with CODE (581a) Air Conditioning (Automatic)

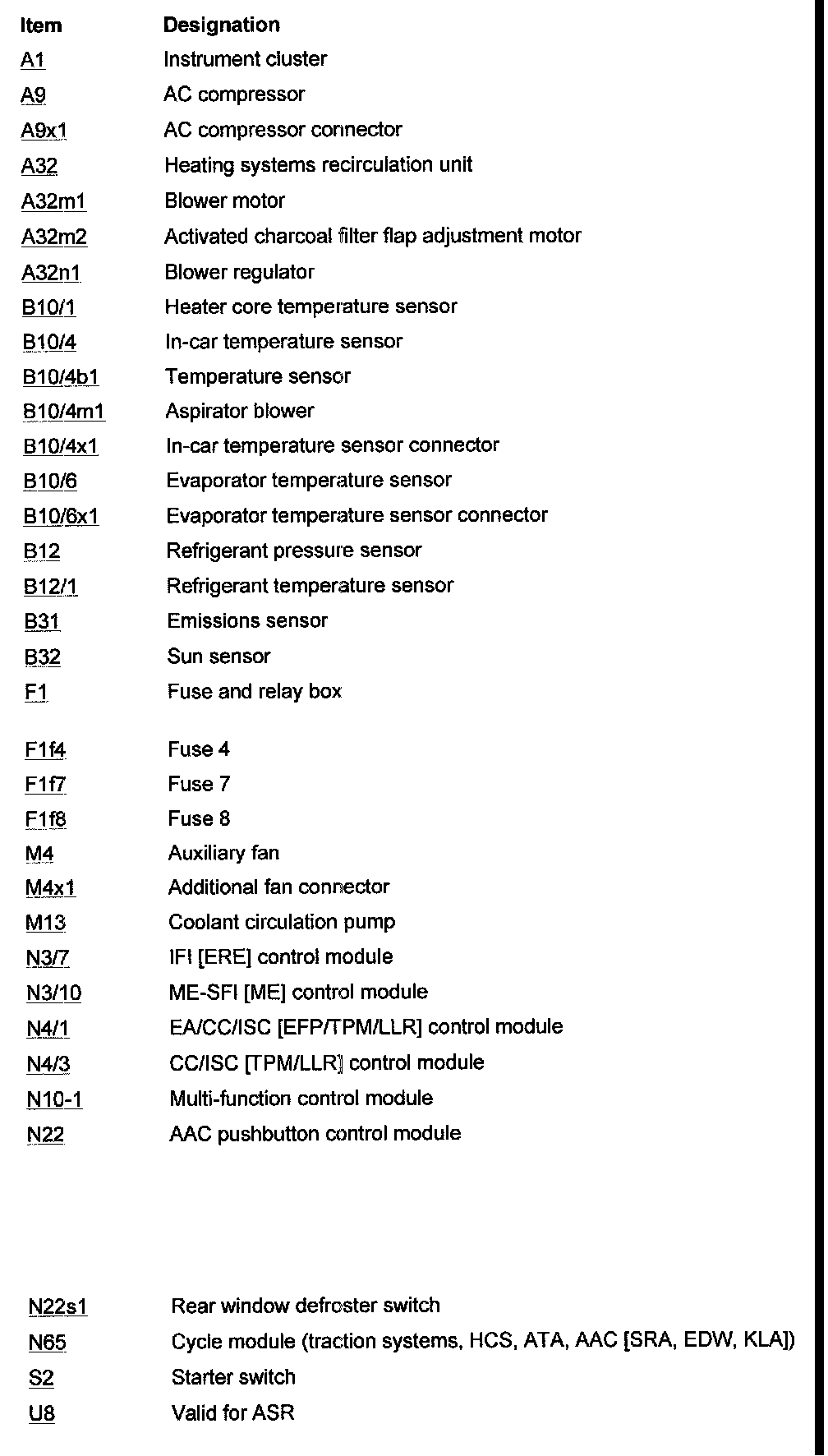

Legend
