Mercedes Benz
>>
1996
>>
E 300D (210.020) L6-3.0L DSL (606.912)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Air Conditioning (AAC) PE83.40-U-2000AU
Automatic Air Conditioning (AAC) PE83.40-U-2000AU

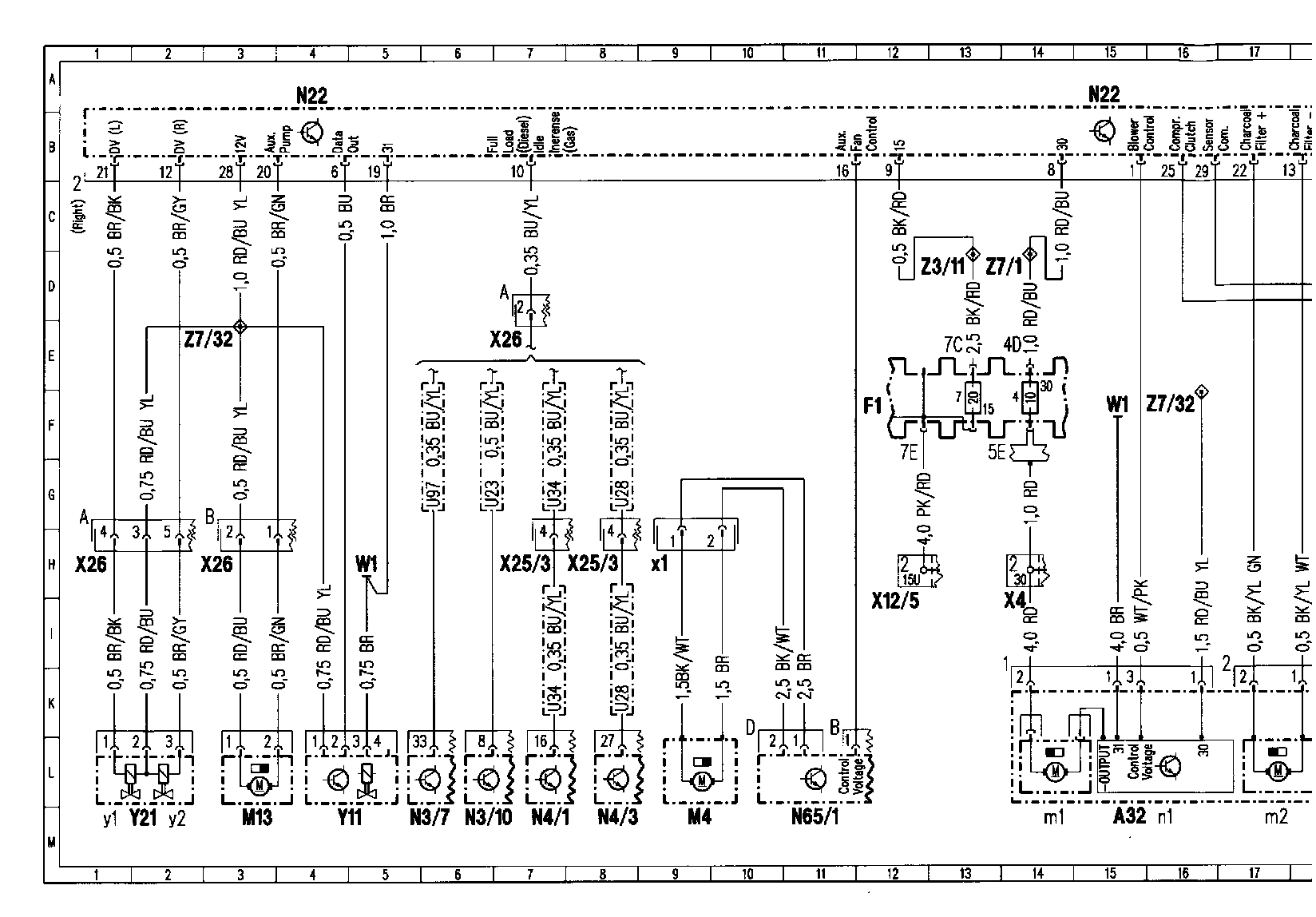

���8���8Wiring Diagram:

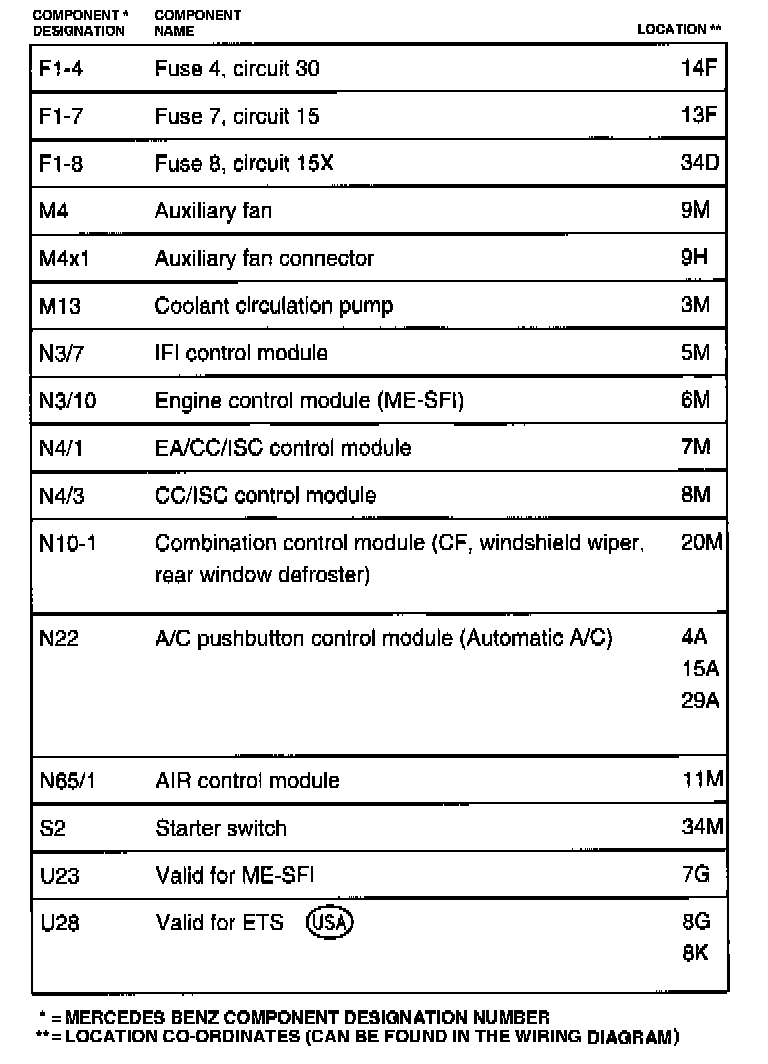

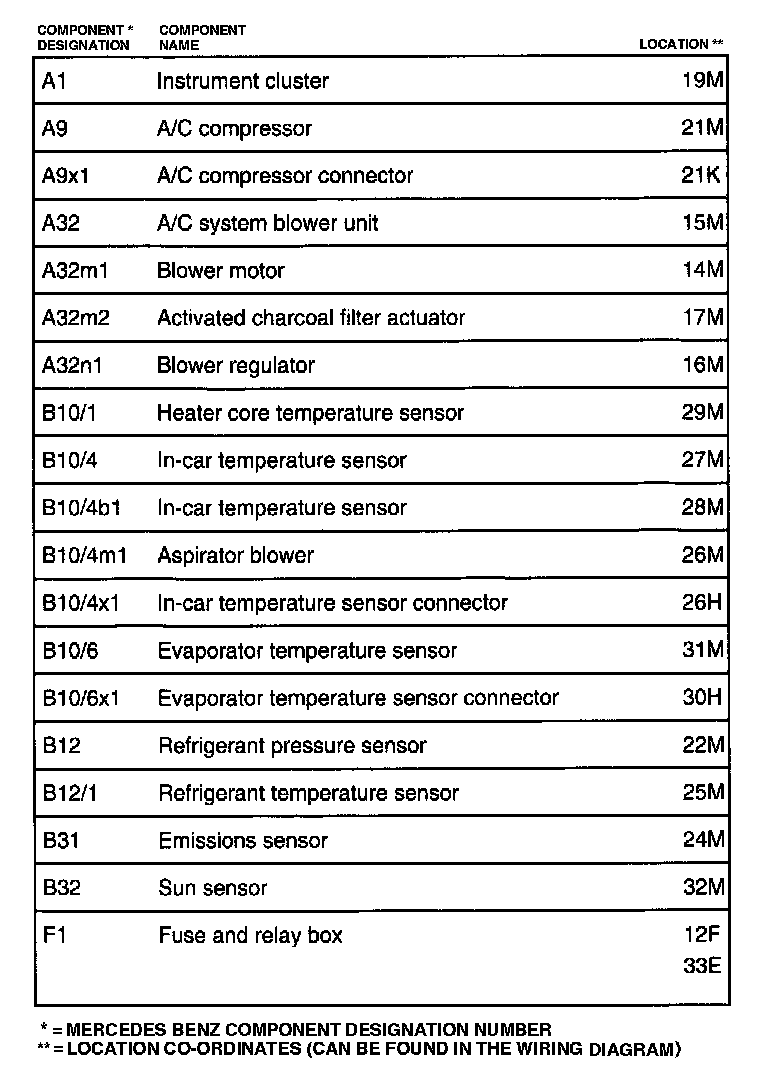

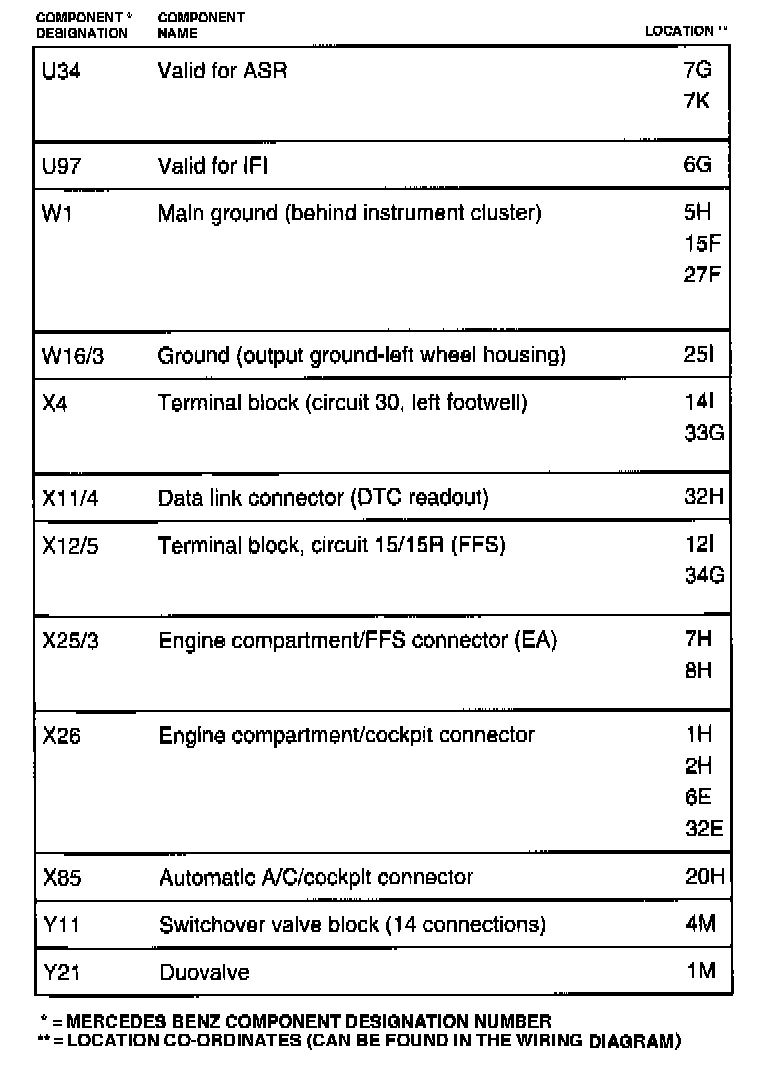

Component Grid Location
A1 - F1:
F1-4 - U28:
U34 - Y21:
Y21y1 - Z7/32:
