E 300D (210.020) L6-3.0L DSL (606.912)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starter, Generator PE15.00-U-2000E (As of 6/1/96)
Starter, Generator PE15.00-U-2000E (As of 6/1/96)
Starter, Generator
Wiring Diagram:

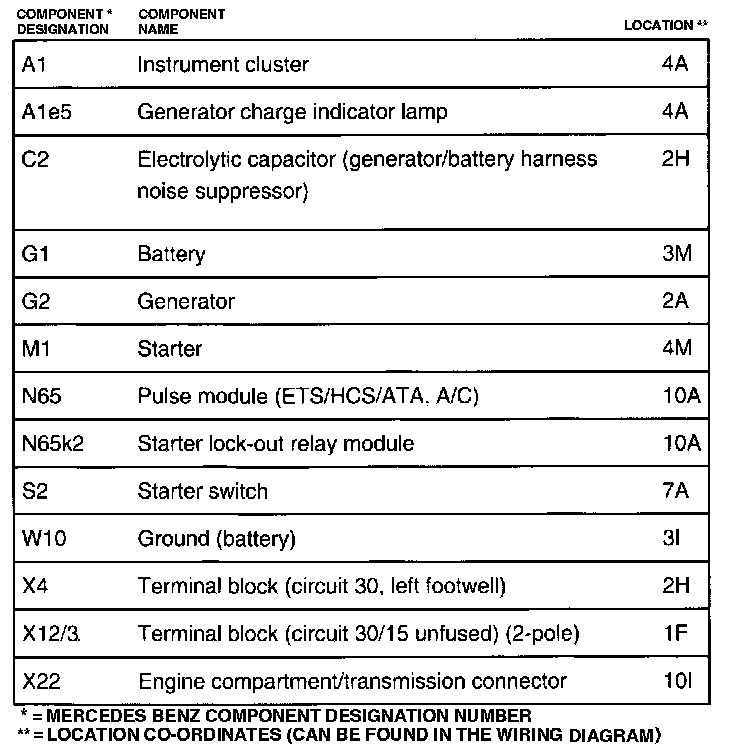

Component Grid Location (A1 - X22):
