Headlamp Cleaning System (HCS) PE82.15-U-2000A
Headlamp Cleaning System (HCS) PE82.15-U-2000A

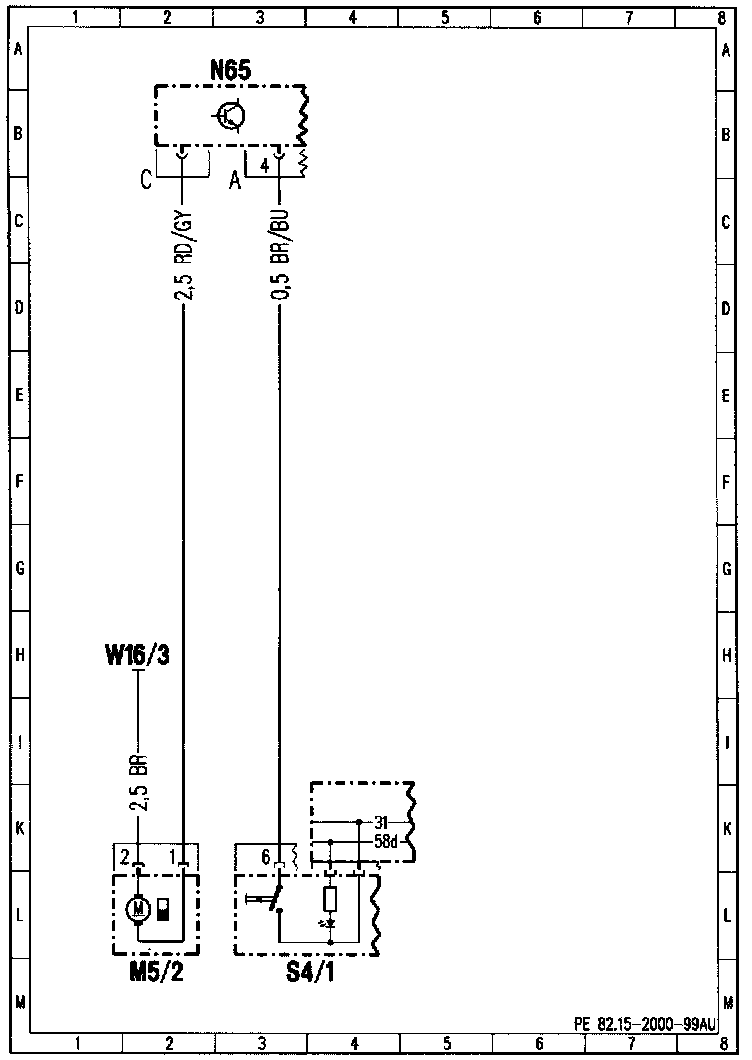

Wiring Diagram:
Component Grid Location (M5/2 - W16/3):
