Information Bus


Engine 104 HFM

Connector Assignment:

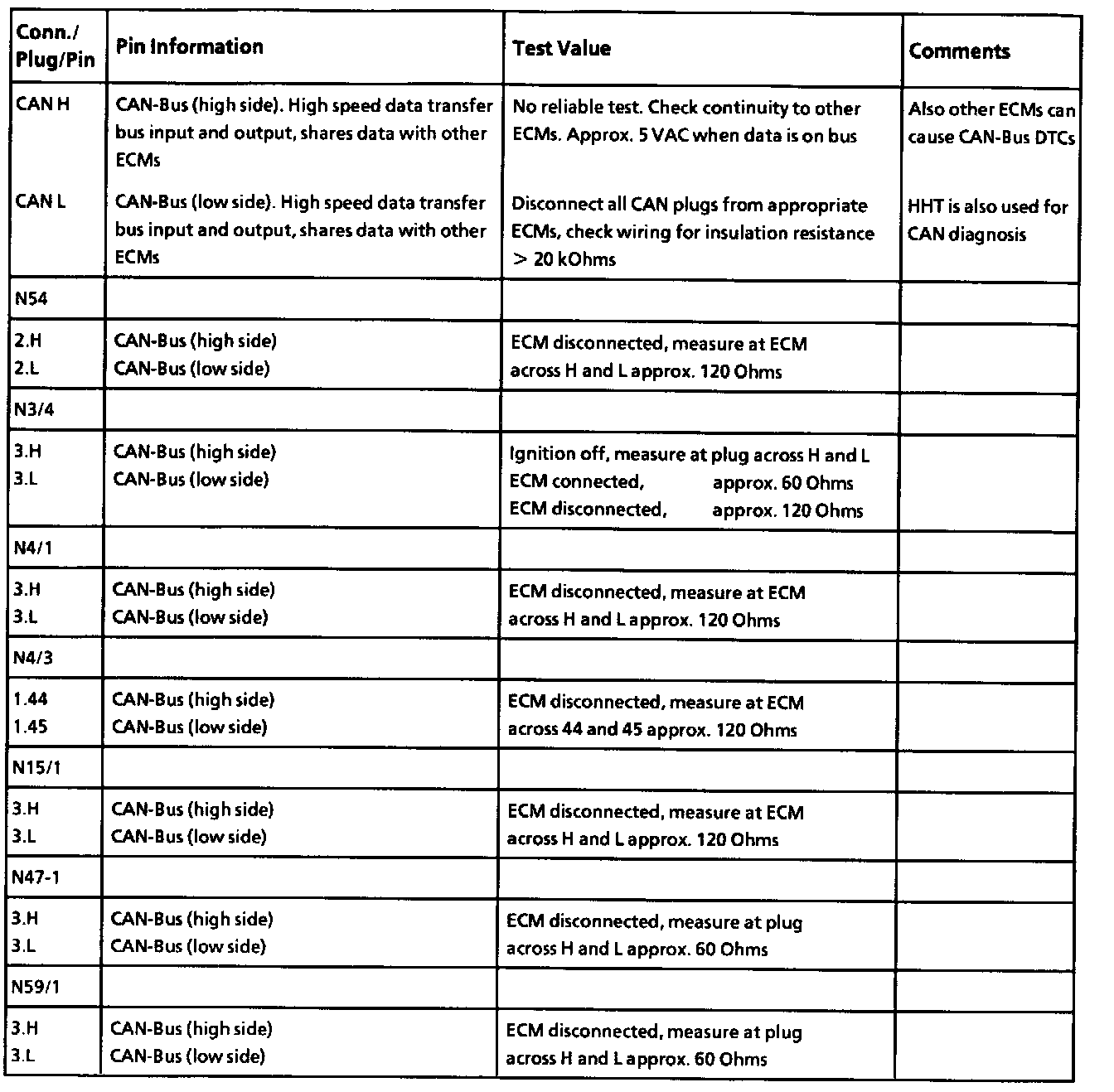

Pin Information:






All values measured to ground unless otherwise noted
