Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1996
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
5-Speed Automatic Transmission
5-Speed Automatic Transmission

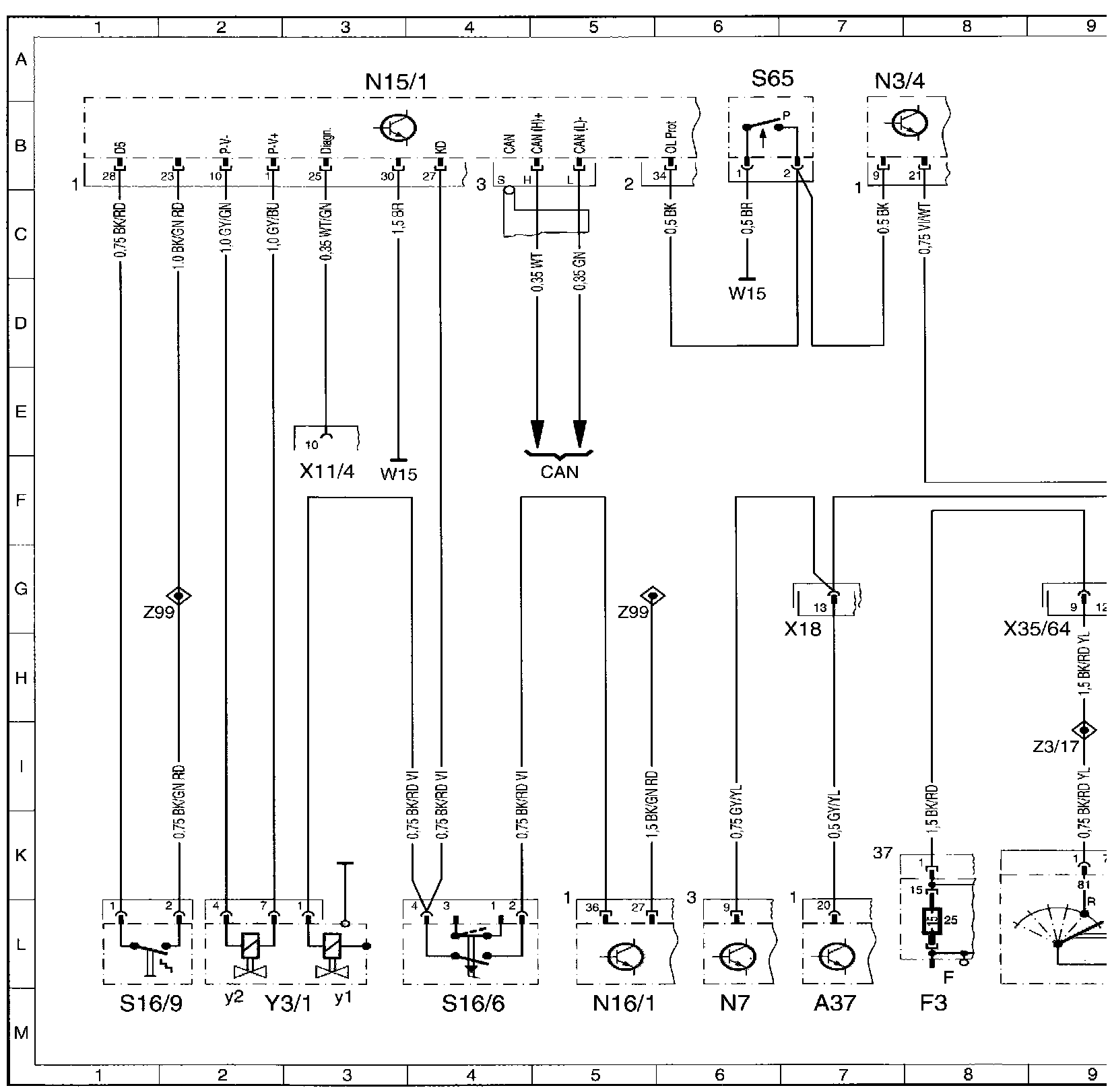

Wiring Diagram, 5-Speed Automatic Transmission (AT)
�r� :

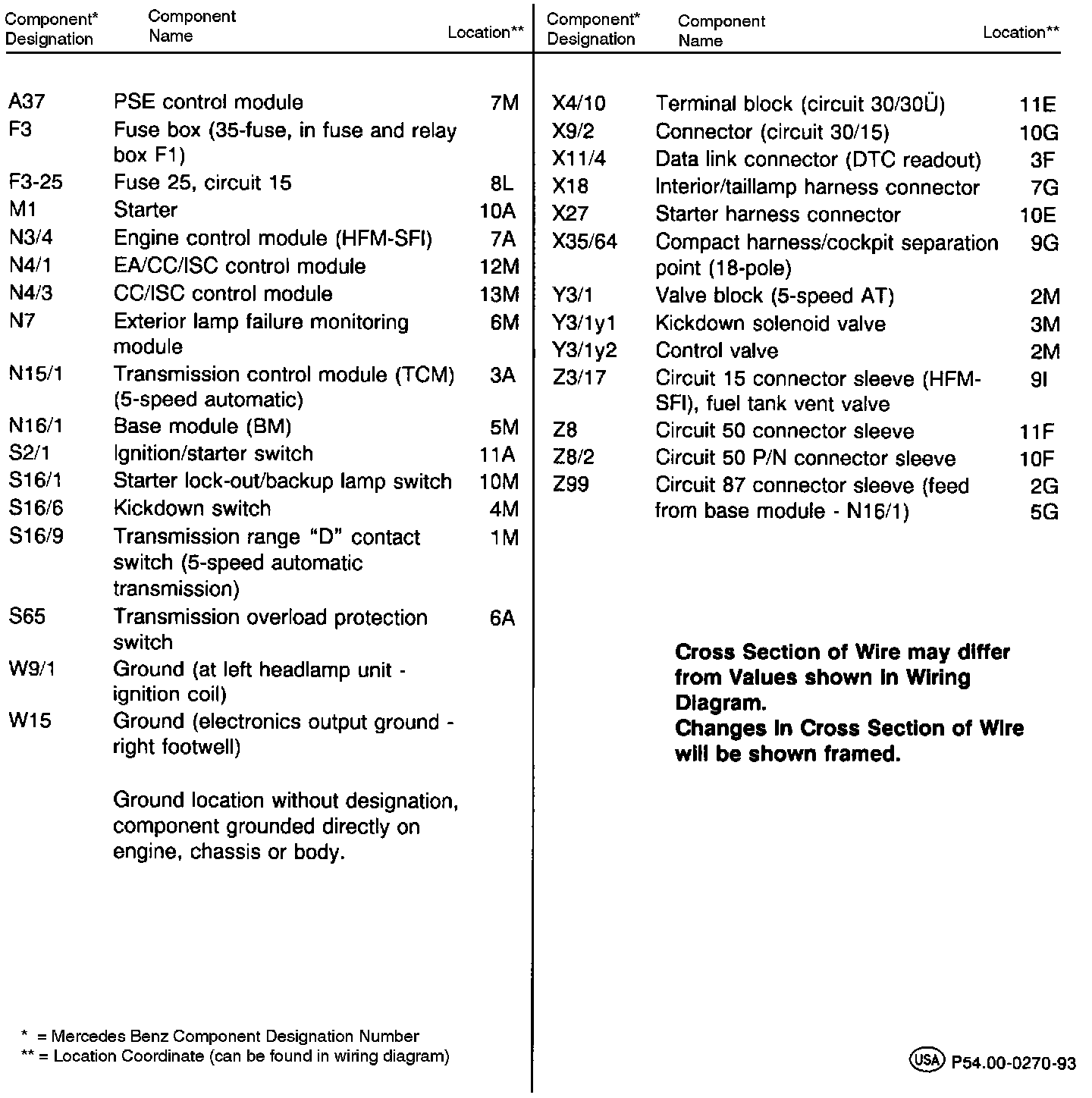

Component Index
