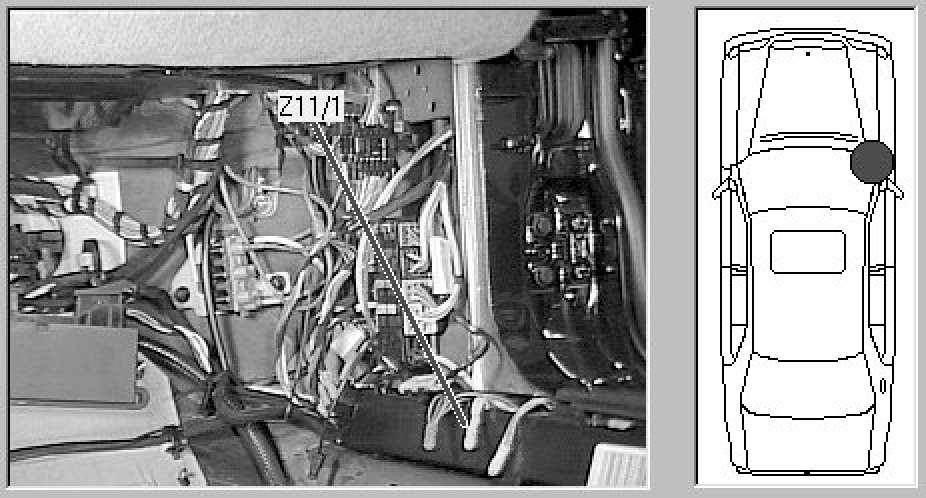

Z11/1 - Solder Splice 1
Z11/1 - Solder Splice 1
Passenger compartment, Passenger's footwell, in wiring tray near front of right front door.
