Interior Lights PE82.20-U-2000XD
Interior Lights PE82.20-U-2000XD

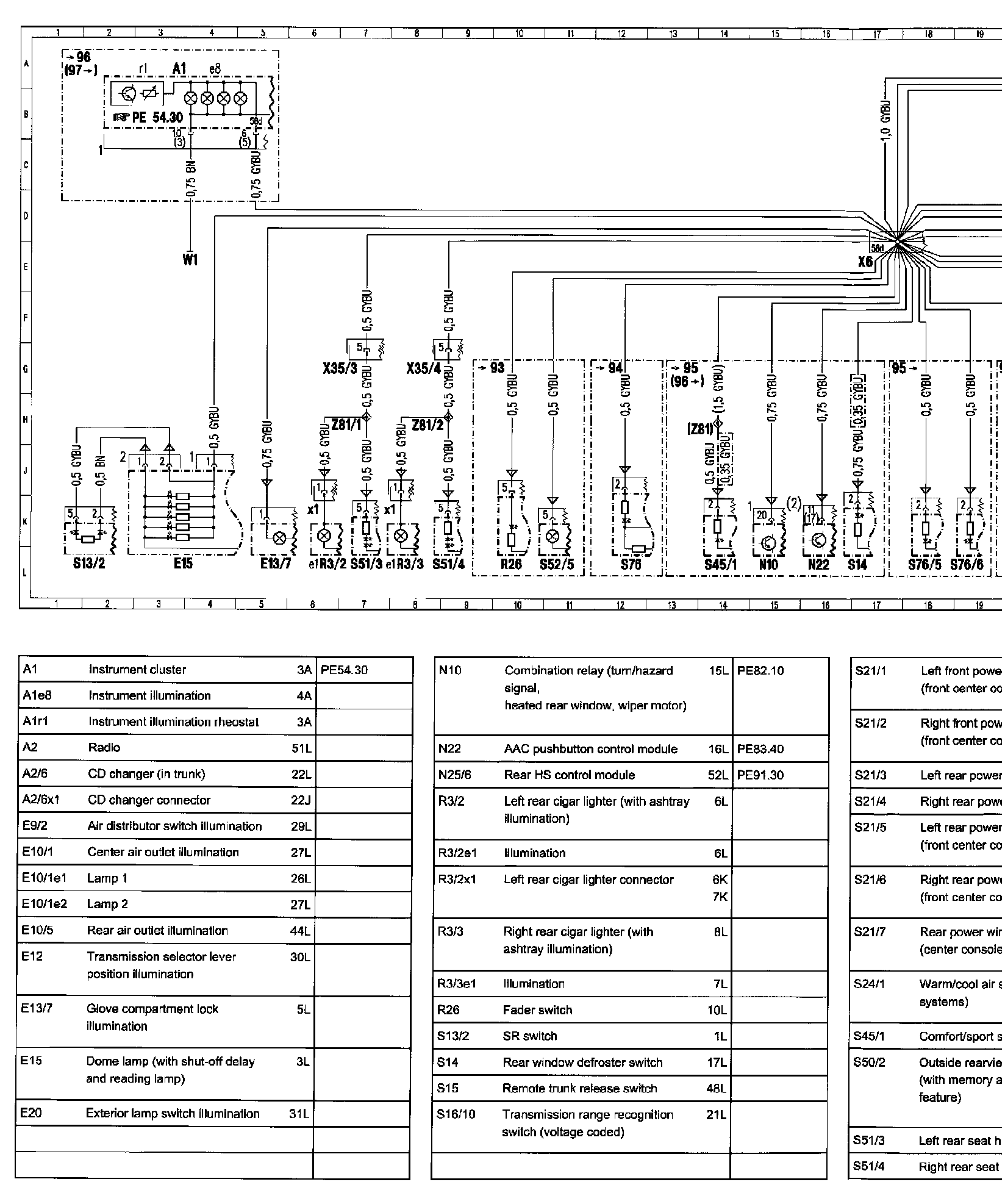

2��PA�PPE82.20-U-2000-XD - Sedan - With Variable Instrument Illumination:
