Mercedes Benz
>>
1996
>>
S 320 SWB (140.032) L6-3.2L (104.994)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>

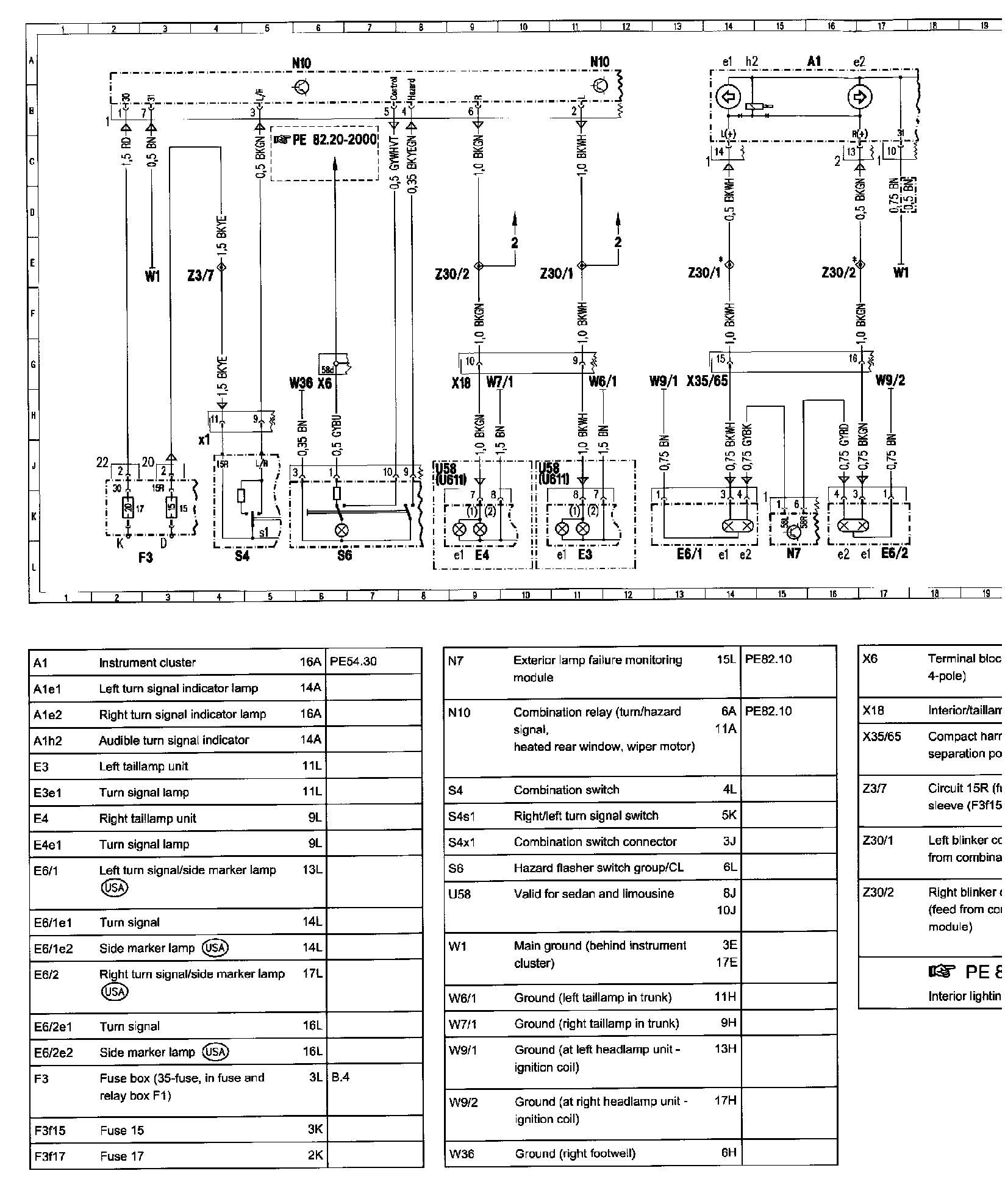

Turn Signal/Hazard Warning Lamps PE82.10-U-2200XX
Turn Signal/Hazard Warning Lamps PE82.10-U-2200XX
iw�PPE82.10-U-2200-99XX:
