Dome Lamp: Service and Repair

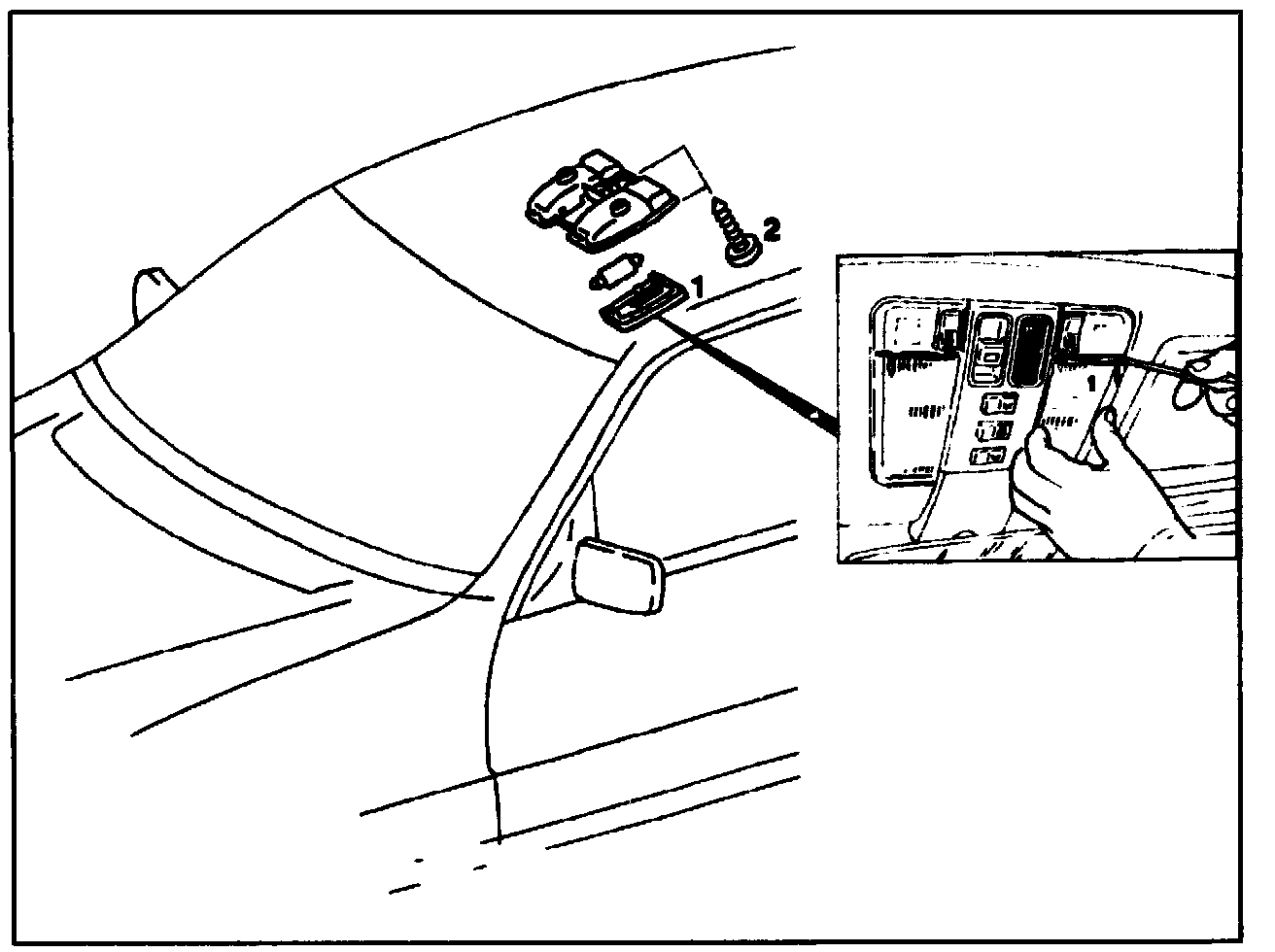

Dome lamp
(1)
unclip, clip in.
Screws (2)
unscrew, screw in.
Dome lamp
with delay and reading lamp
take off, insert.
Connectors of respective wiring harnesses
unplug, plug in.
