Circuit 54 Wiring PE00.19-U-2730XC
Circuit 54 Wiring PE00.19-U-2730XC

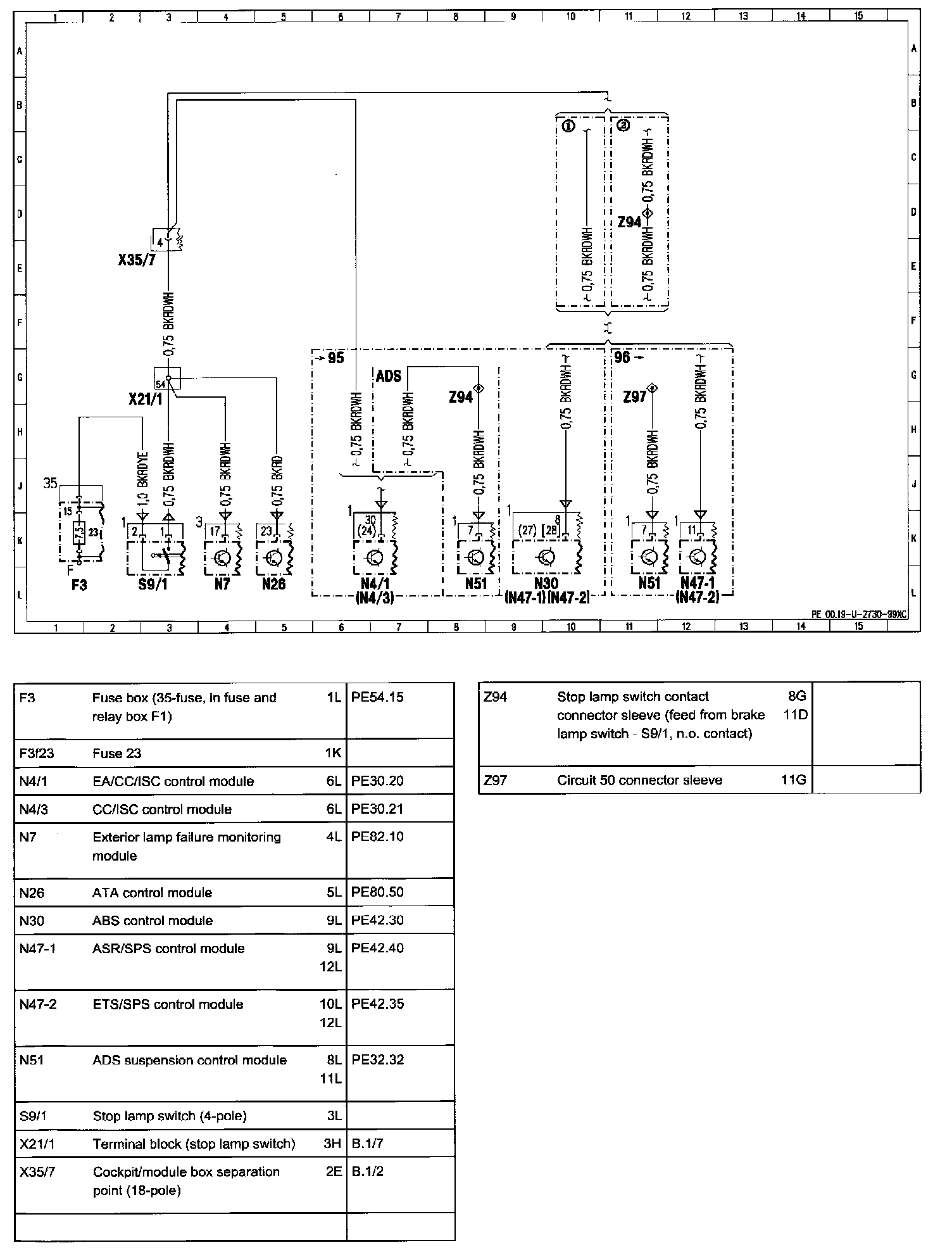

PE00.19-U-2730-XC - Voltage Distribution Via Terminal Block X 21/1:
