Body and Frame - Lateral Portal Frame Kit
REF. NO. 58/100DATE: April 1996
TO: ALL MERCEDES-BENZ PASSENGER CAR DEALERS
SUBJECT:
MODELS 140, 202 AND 210 LATERAL PORTAL FRAME KIT
A lateral portal frame kit, tool number 210 589 17 23 00, is now available (Figure 1). It consists of two cross-bars, two MZ 260 towers, and one longitudinal rail with two supports. See configuration and component table in this bulletin.
This (smaller) lateral portal frame kit was developed in order to reduce the cost of buying (or renting) the complete portal frame kit.
Please note that the complete portal frame kit (tool number 129 589 03 23 00), developed originally for model 124.06, together with MZ 260 towers (tool number 140 589 26 23 00), can be used with various lateral straightening portal frame sets (weld/check fixtures for A-, B-, and C- pillars) for models 140, 202 and 210.

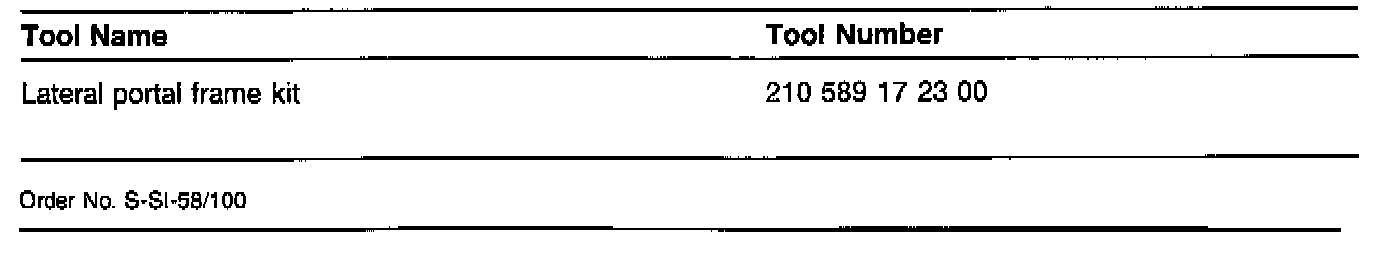

Special Tool
Tool Information

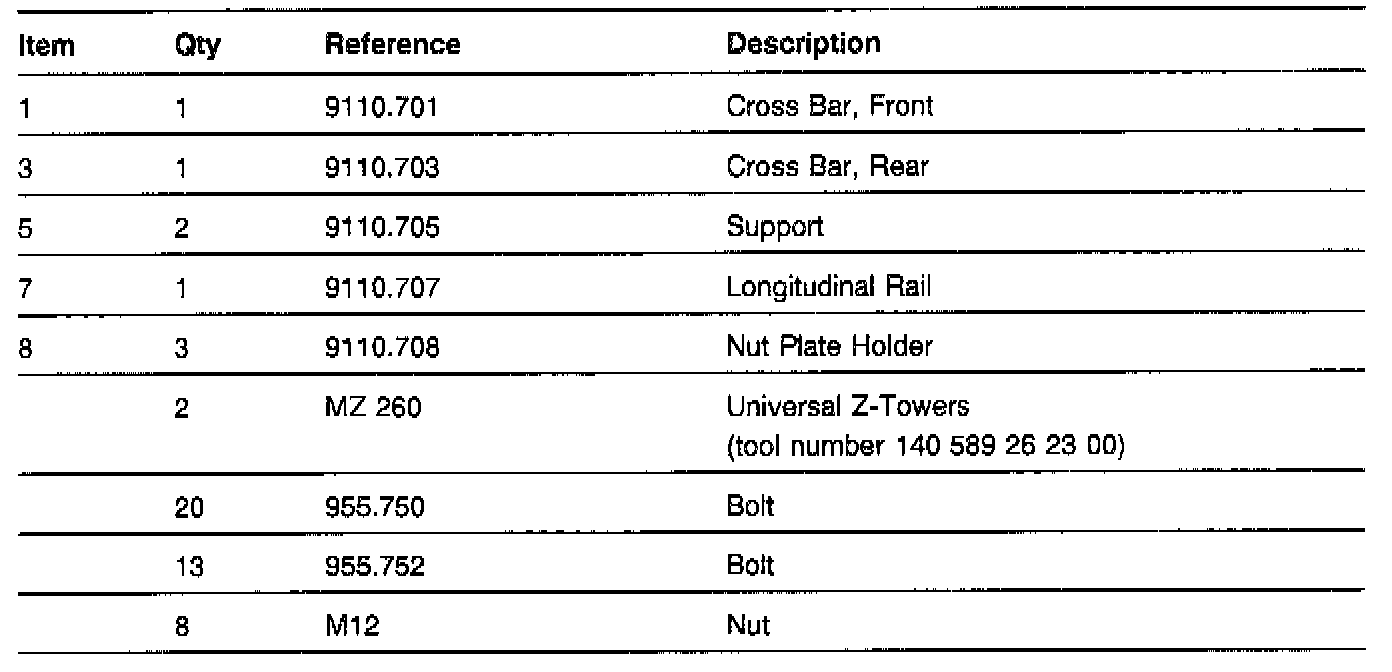

Component Information Table - Lateral Portal Frame Kit - tool number 210 589 17 23 00
