Rear Power Seats (4-Place Seating)


Sedan

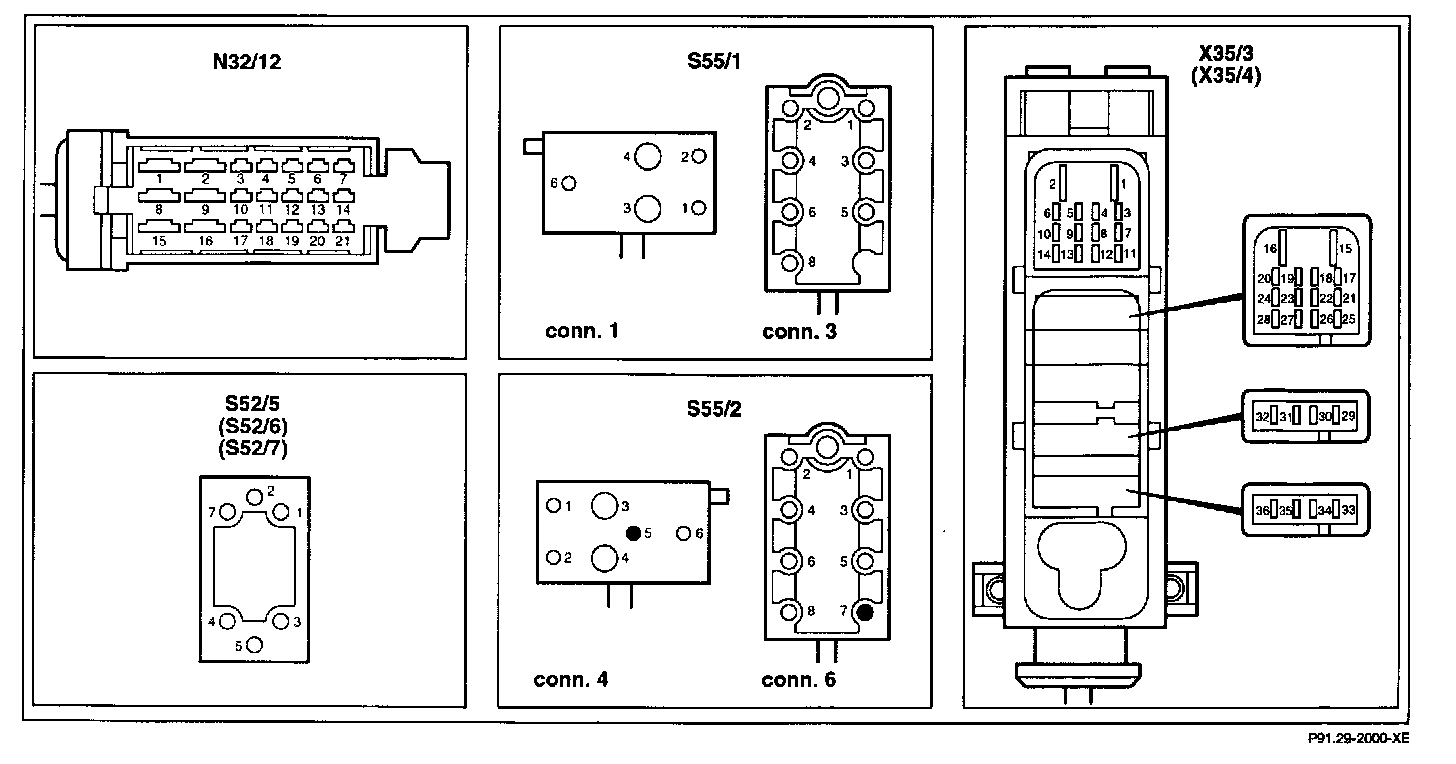

Connector Assignment:

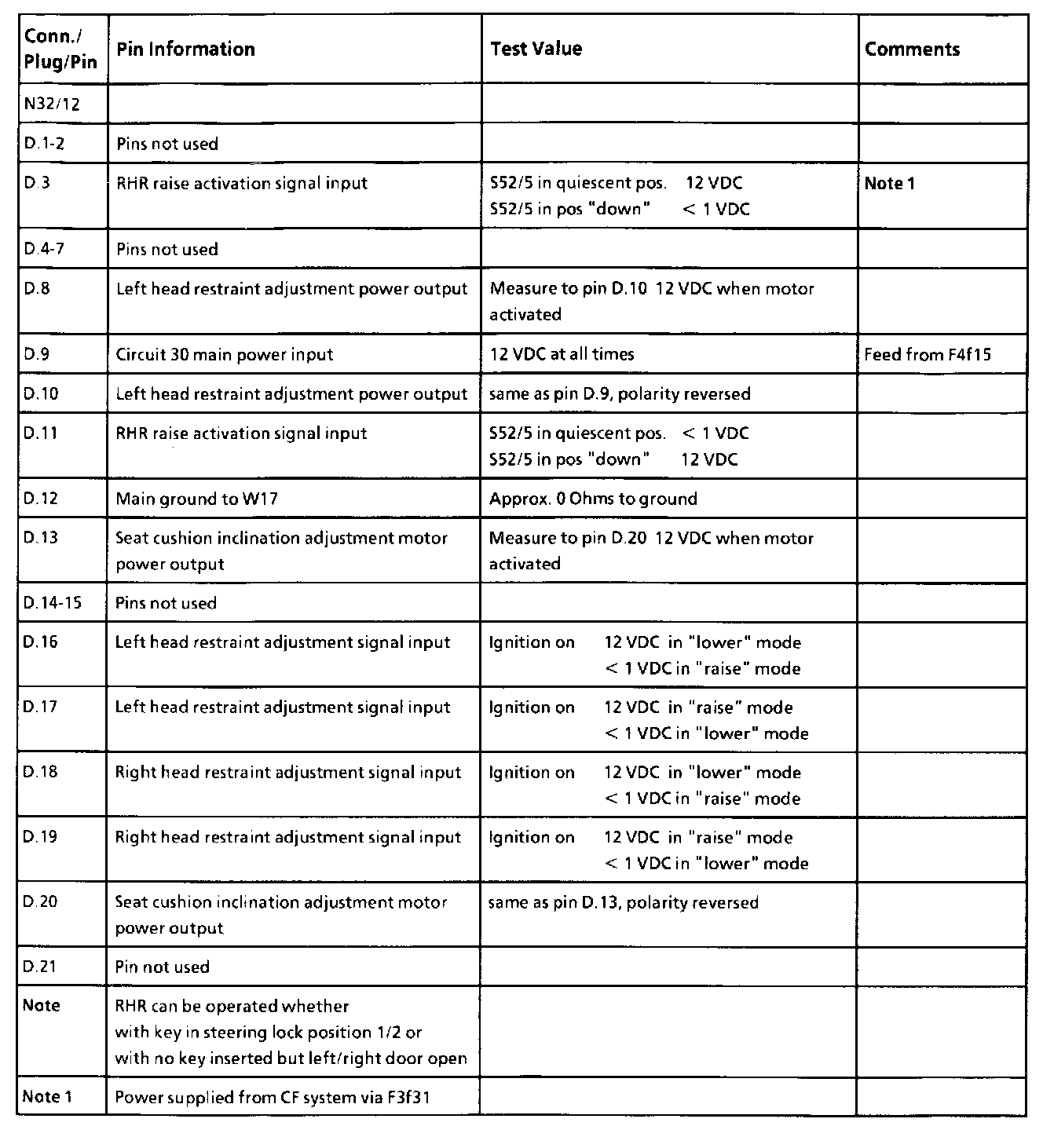

Pin Information:






All values measured to ground unless otherwise noted
