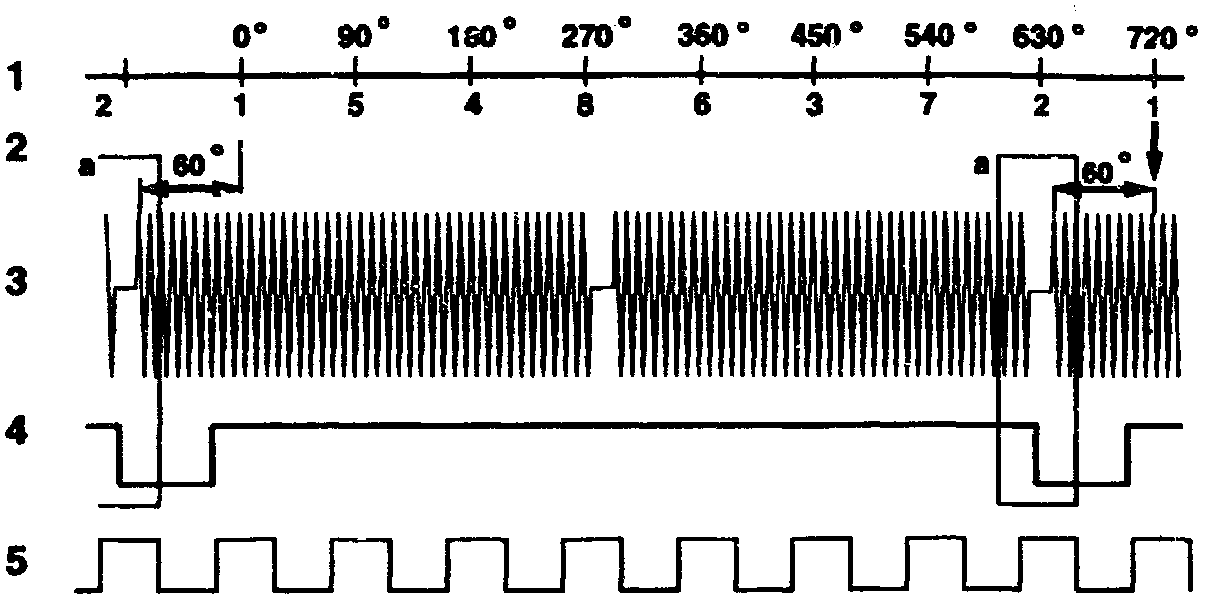

Engine Speed Signals

Signal Assignment, Engine 119:

1. Crank angle
2. Cylinder ignition TDC
3. Crankshaft position sensor (L5) signal
4. Camshaft Hall-effect sensor (B6/1) signal
5. TNA speed signal
a) Cylinder 1 recognition
