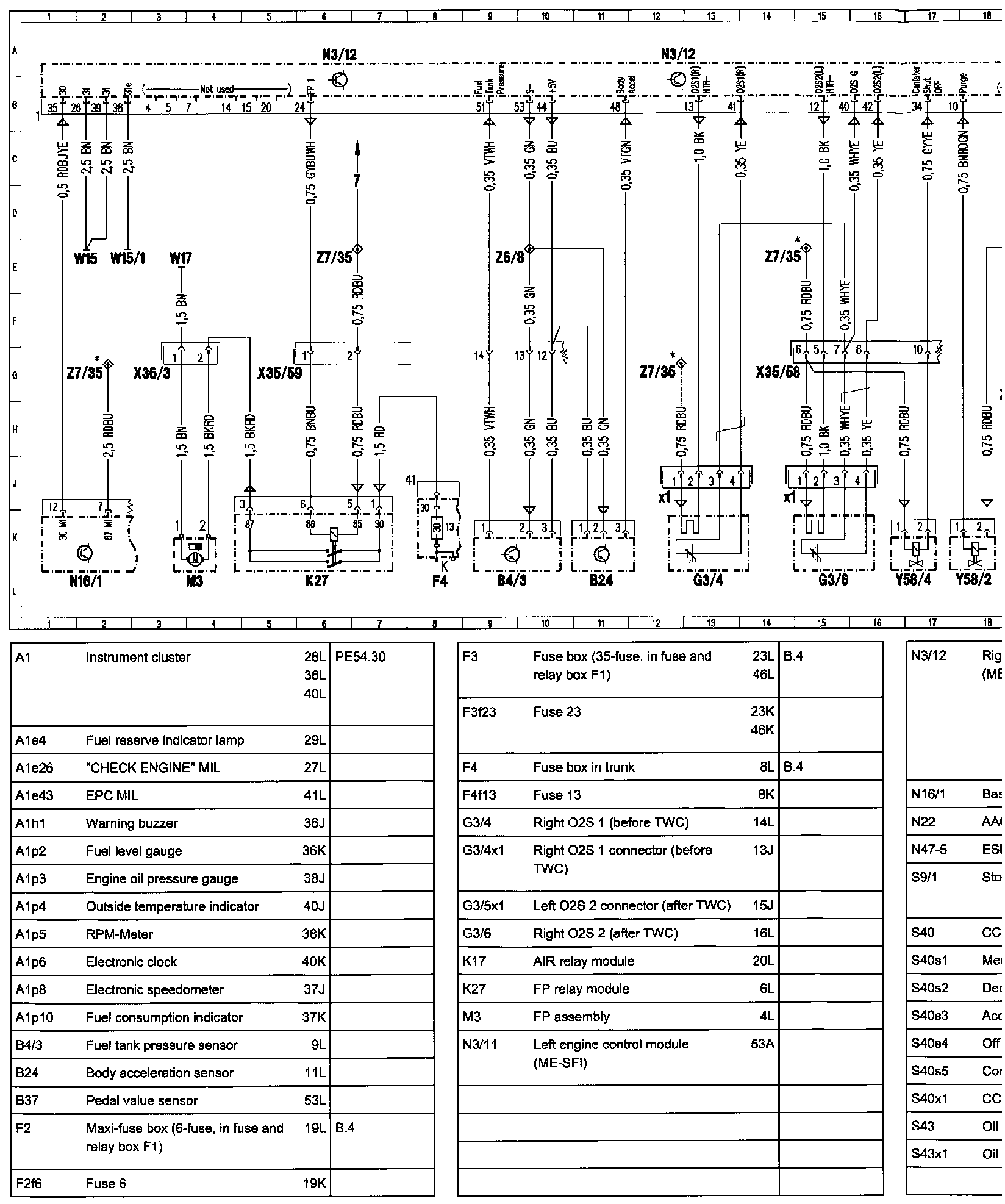

ME-SFI Fuel Injection/Ignition System PE07.61-U-2000XE (Right Bank)
ME-SFI Fuel Injection/Ignition System PE07.61-U-2000XE (Right Bank)
� �� PE07.61-U-2000XE - ME SFI:
