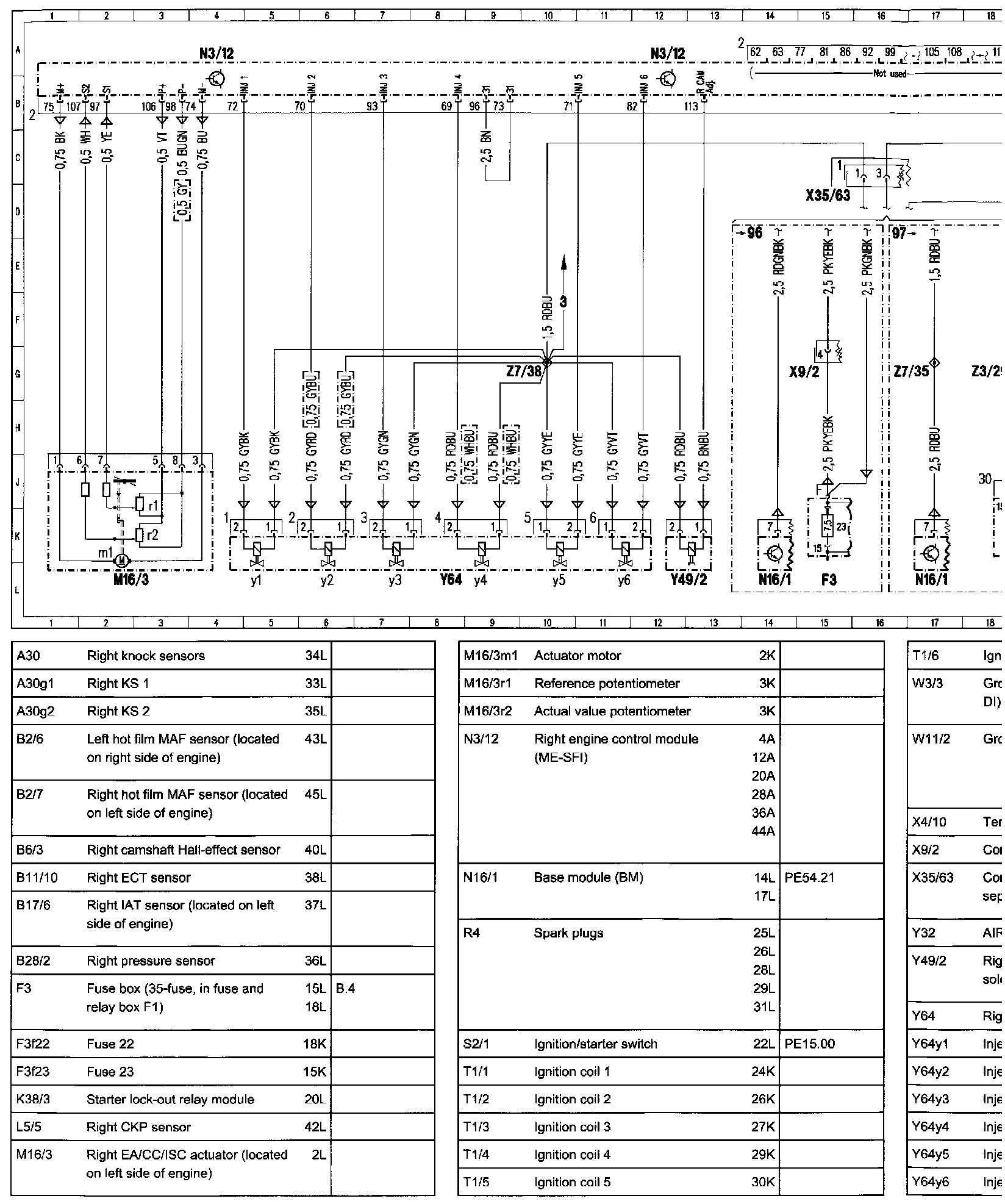

ME-SFI Fuel Injection/Ignition System PE07.61-U-2000XF (Right Bank)
ME-SFI Fuel Injection/Ignition System PE07.61-U-2000XF (Right Bank)
�E �� PE07.61-U-2000-XF - ME SFI:
