Home >> Mercedes Benz >> 1996 >> SL 320 (129.063) L6-3.2L (104.991) >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> Electronic Accelerator (EA), Cruise Control (CC), Idle Speed Control (ISC) PE30.20-U-2000YD

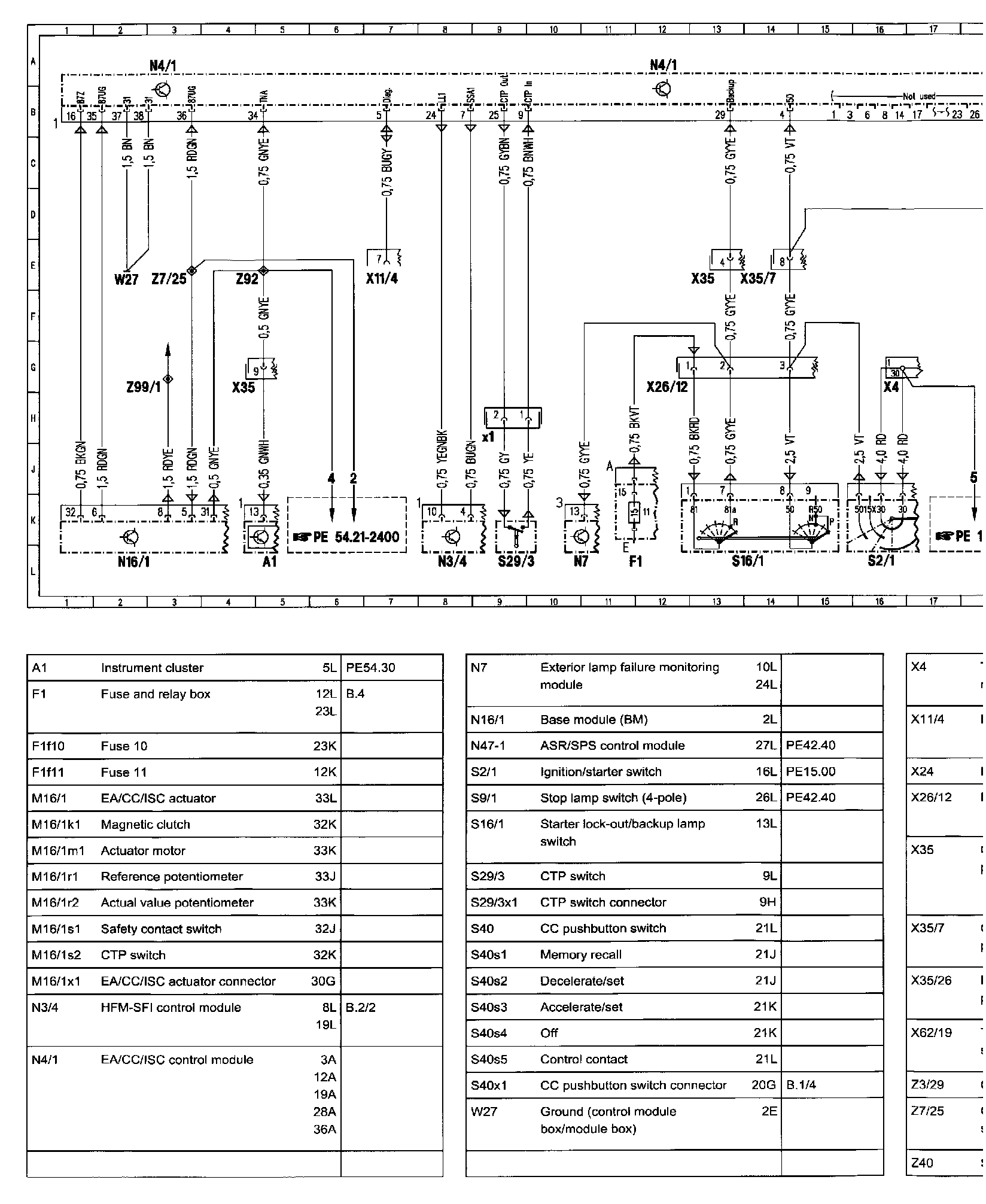

Electronic Accelerator (EA), Cruise Control (CC), Idle Speed Control (ISC) PE30.20-U-2000YD

��8O 59OPE30.20-U-2000YD:
